NEMIC LAMBDA EWS3000T-5电源模块 PDF资料
1.产 品 资 料 介 绍：
NEMIC LAMBDA EWS3000T-5 电源模块，TDK-Lambda品牌，AC-DC开关电源。
15条产品信息
产品型号为EWS3000T-5。
品牌为TDK-LAMBDA（曾用名NEMIC-LAMBDA）。
属于EWS-T系列单路输出AC-DC电源模块。
产品状态为停产，2008年12月已停止出货。
输入为三相三线制，电压范围170~265VAC，频率47~63Hz。
标称输出为单路5VDC，最大输出电流600A。
最大输出功率为3000W（3kW）。
输出电压可通过外部控制从0V编程至额定电压×120%。
内置风扇强制风冷散热。
工作环境温度范围为-10°C至+60°C。
配备过压保护、过流保护、过热保护功能。
支持远程传感、远程开关控制、故障信号输出。
功率因数典型值为0.95（200VAC满载时）。
符合UL和CSA安全标准，输入-输出耐压2.5kVAC。
目前仅可通过二手渠道采购，无官方替代型号。
结尾
综上，NEMIC LAMBDA EWS3000T-5是TDK-Lambda已停产的3000W高功率单路5V/600A输出开关电源，具备三相输入、可编程输出及多重保护功能
NEMIC LAMBDA EWS3000T-5电源模块 英文介绍
NEMIC LAMBDA EWS3000T-5 power module, TDK Lambda brand, AC-DC switching power supply.
15 product information
The product model is EWS3000T-5.
The brand is TDK-LAMBDA (formerly known as NEMIC-LAMBDA).
Belongs to the EWS-T series single output AC-DC power module.
The product status is discontinued and shipments were stopped in December 2008.
The input is a three-phase three wire system with a voltage range of 170~265VAC and a frequency of 47~63Hz.
The nominal output is a single 5VDC, with a maximum output current of 600A.
The maximum output power is 3000W (3kW).
The output voltage can be programmed from 0V to rated voltage × 120% through external control.
Built in fan for forced air cooling and heat dissipation.
The working environment temperature range is -10 ° C to+60 ° C.
Equipped with overvoltage protection, overcurrent protection, and overheat protection functions.
Support remote sensing, remote switch control, and fault signal output.
The typical value of power factor is 0.95 (at 200VAC full load).
Compliant with UL and CSA safety standards, with an input-output withstand voltage of 2.5kVAC.
At present, it can only be purchased through second-hand channels and there are no official substitute models available.
ending
Overall, NEMIC LAMBDA EWS3000T-5 is a discontinued 3000W high-power single channel 5V/600A output switching power supply from TDK Lambda, featuring three-phase input, programmable output, and multiple protection functions

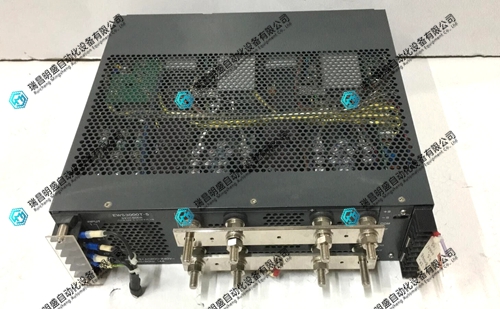

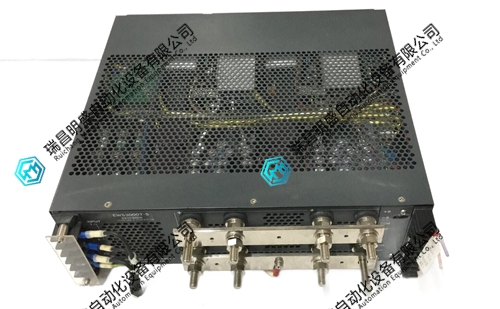

NEMIC LAMBDA EWS3000T-5电源模块 产品展示
