TEL TTLD30-11 5880-000029-V2印刷电路板 PDF资料
1.产 品 资 料 介 绍：
TEL TTLD30-11 5880-000029-V2 印刷电路板，东京电子（Tokyo Electron）品牌，推测为半导体设备专用控制或接口板卡。
15条产品信息
产品主要型号标识为 TTLD30-11。
内部物料编号（P/N）推测为 5880-000029。
硬件版本标识为 V2。
品牌归属为 TEL（东京电子）。
原产地推测为日本。
产品状态推测以二手或翻新备件形式流通。
功能上可能用于半导体刻蚀或沉积设备。
在系统中可能承担信号中继与I/O控制任务。
可能负责设备内部特定电路板的电源分配。
购买前建议确认该板卡适用的具体设备系列型号。
实物确认时需核对板卡上的完整PN码与版本号。
收货前建议检查PCB表面有无烧毁痕迹。
需确认电容是否存在鼓包或损伤情况。
通常缺乏独立公开的技术参数手册。
获取规格详情需参考配套机台的电气图纸。
结尾
综上，TEL TTLD30-11 5880-000029-V2 是一款推测用于TEL半导体设备的电路板，以二手状态流通，承担信号或电源控制功能。购买时需重点核对实物标签与外观完好度
TEL TTLD30-11 5880-000029-V2印刷电路板 英文介绍
TEL TTLD30-11 5880-000029-V2 printed circuit board, Tokyo Electron brand, speculated to be a control or interface board specifically designed for semiconductor equipment.
15 product information
The main model identification of the product is TTLD30-11.
The internal material number (P/N) is estimated to be 5880-000029.
The hardware version is labeled as V2.
The brand belongs to TEL (Tokyo Electronics).
The origin is speculated to be Japan.
The product status is speculated to be circulating in the form of second-hand or refurbished spare parts.
Functionally, it may be used for semiconductor etching or deposition equipment.
May undertake signal relay and I/O control tasks in the system.
May be responsible for power distribution of specific circuit boards within the device.
Before purchasing, it is recommended to confirm the specific equipment series and models applicable to the board.
When confirming the physical object, it is necessary to verify the complete PN code and version number on the board.
Before receiving the goods, it is recommended to check the surface of the PCB for any burn marks.
It is necessary to confirm whether there is any bulging or damage to the capacitor.
There is usually a lack of independent and publicly available technical parameter manuals.
To obtain specification details, please refer to the electrical drawings of the supporting machine.
ending
In summary, TEL TTLD30-11 5880-000029-V2 is a circuit board speculated to be used for TEL semiconductor equipment, circulating in a second-hand state and undertaking signal or power control functions. When purchasing, it is important to check the physical label and appearance for completeness

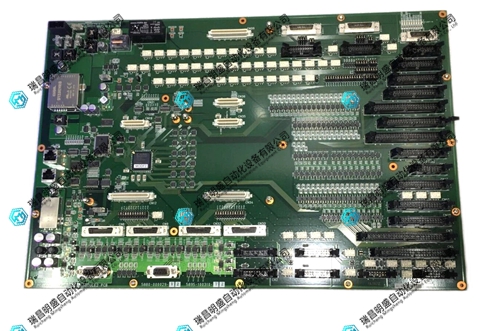

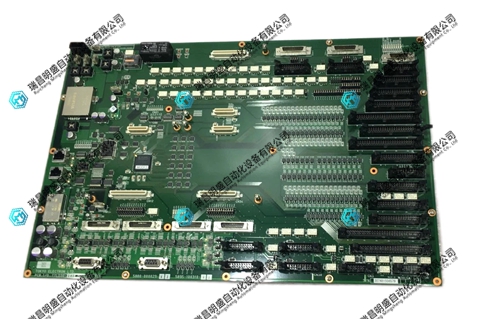

TEL TTLD30-11 5880-000029-V2印刷电路板 产品展示
