Yamaha SRCX-05控制器驱动器 PDF资料
1.产 品 资 料 介 绍：
Yamaha SRCX-05 是雅马哈发动机株式会社推出的一款单轴机器人控制器驱动器。
专为雅马哈单轴机器人及线性模组设计的一体式控制器。
集成了控制逻辑与电机驱动功能，结构紧凑。
支持位置控制与速度控制两种主要模式。
支持脉冲串指令输入，便于与上位控制器连接。
内置增量式编码器接口，实现闭环位置反馈。
具备自动增益调整功能，可快速匹配不同负载。
支持多种原点复位模式，适应不同安装方式。
内置过载、过流、过热、超程等多重保护功能。
配备RS-232或RS-485通信接口，便于参数设定与监控。
面板配有操作按键与LED数码管显示，方便现场调试。
输入电压为单相AC 100V或200V级，适应性较好。
结构设计紧凑，可直接安装于控制柜内导轨或面板。
常用于电子元件组装、点胶、移载等自动化设备。
市场上备件与维修服务渠道较为成熟。
结尾： 综上，Yamaha SRCX-05 凭借集成化设计、简便的调试方式和可靠的保护机制，是雅马哈单轴机器人系统中高效且稳定的驱动控制解决方案。
Yamaha SRCX-05控制器驱动器 英文介绍
Yamaha SRCX-05 is a single axis robot controller driver launched by Yamaha Engine Co., Ltd.
An integrated controller designed specifically for Yamaha single axis robots and linear modules.
Integrated control logic and motor drive function, compact structure.
Supports two main modes: position control and speed control.
Support pulse train instruction input, easy to connect with the upper controller.
Built in incremental encoder interface to achieve closed-loop position feedback.
Equipped with automatic gain adjustment function, it can quickly match different loads.
Support multiple origin reset modes to adapt to different installation methods.
Built in multiple protection functions such as overload, overcurrent, overheating, and overtravel.
Equipped with RS-232 or RS-485 communication interfaces for parameter setting and monitoring.
The panel is equipped with operation buttons and LED digital display, making it convenient for on-site debugging.
The input voltage is single-phase AC 100V or 200V level, with good adaptability.
The structural design is compact and can be directly installed on the guide rails or panels inside the control cabinet.
Commonly used in automation equipment such as electronic component assembly, dispensing, and transfer.
The spare parts and maintenance service channels in the market are relatively mature.
Conclusion: In summary, Yamaha SRCX-05 is an efficient and stable drive control solution for Yamaha's single axis robot system, thanks to its integrated design, simple debugging method, and reliable protection mechanism.

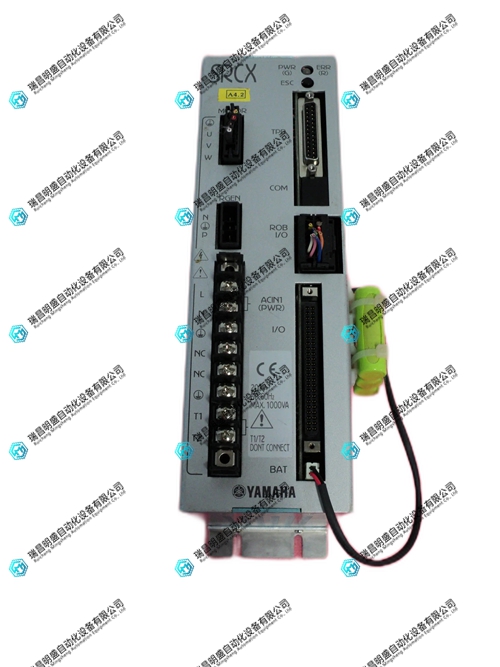

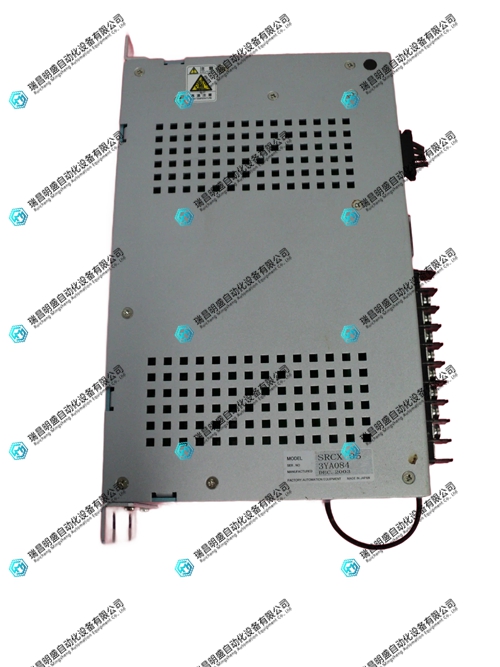

Yamaha SRCX-05控制器驱动器 产品展示
