RENISHAW RLU20-A3-XX光纤激光编码器 PDF资料
1.产 品 资 料 介 绍：
RENISHAW RLU20-A3-XX 光纤激光编码器为雷尼绍RLE系列核心激光单元，基于激光干涉测量原理，为精密运动控制提供高线性度位置反馈。
采用稳频氦氖激光源，频率稳定度优异。
与RLD系列检测头配套使用，光纤传输激光。
可选单轴或双轴配置，光纤长度3米。
输出支持数字正交与模拟正余弦信号。
面板状态指示灯，便于调试监控。
激光单元远离测量区安装，减少热影响。
真空波长精度±0.1 ppm，适用于高要求环境。
支持配合RCU10补偿系统实现环境补偿。
测量光路与激光源分离设计，提升系统灵活性。
工业级设计，适应长期连续运行。
标准接口，与主流控制系统兼容。
结构紧凑，安装占用空间小。
内置稳定电路，抗干扰能力强。
关键参数支持断电保存。
维护简便，故障率低。
结尾： RENISHAW RLU20-A3-XX 以高精度、高稳定的激光干涉测量性能，为精密定位与运动控制提供可靠的位置反馈。
RENISHAW RLU20-A3-XX光纤激光编码器 英文介绍
The RENISHAW RLU20-A3-XX fiber laser encoder is the core laser unit of the Renishaw RLE series, based on the principle of laser interferometry measurement, providing high linearity position feedback for precision motion control.
Using a stable frequency helium neon laser source, the frequency stability is excellent.
Used in conjunction with RLD series detection heads, fiber optic transmission of laser.
Optional single axis or dual axis configuration, fiber length of 3 meters.
Output supports digital orthogonal and analog sine and cosine signals.
The panel status indicator light is convenient for debugging and monitoring.
The laser unit is installed away from the measurement area to reduce thermal effects.
Vacuum wavelength accuracy ± 0.1 ppm, suitable for high demand environments.
Support the implementation of environmental compensation in conjunction with the RCU10 compensation system.
Separate the measurement optical path and laser source design to enhance system flexibility.
Industrial grade design, suitable for long-term continuous operation.
Standard interface, compatible with mainstream control systems.
Compact structure and small installation space.
Built in stable circuit with strong anti-interference ability.
Key parameters support power-off saving.
Easy maintenance and low failure rate.
Conclusion: RENISHAW RLU20-A3-XX provides reliable position feedback for precision positioning and motion control with high-precision and highly stable laser interferometry measurement performance.

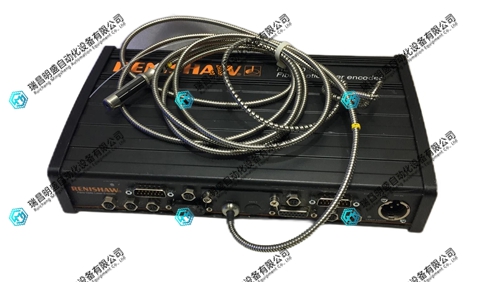

RENISHAW RLU20-A3-XX光纤激光编码器 产品展示
