3BSE008516R1 AI810 模拟输入量模块

1.产 品 资 料 介 绍：

中文资料：

3BSE008516R1 AI810是一款由ABB公司生产的模拟输入量模块，主要用于工业自动化系统中的模拟信号采集和处理。以下是该模块的主要特点和应用领域：

产品特点

1. 多通道输入：

• 提供8个单端模拟输入通道，可用于连接多种传感器和设备，进行信号采集。

2. 高精度：

• 支持12位分辨率，提供高精度的模拟信号测量，确保数据的准确性。

3. 多种输入类型：

• 支持多种类型的模拟输入信号，如电压（0-10V）和电流（4-20mA），适应不同的应用需求。

4. 隔离设计：

• 模块设计中包含通道间隔离和通道对地隔离，增强抗干扰能力，提高系统的稳定性和安全性。

5. 模块化设计：

• 采用模块化结构，便于安装、维护和扩展，用户可以根据实际需求灵活配置系统。

6. 诊断功能：

• 具备自诊断功能，可以实时监控输入信号和模块状态，提供故障检测和报警功能，便于维护和管理。

7. 兼容性：

• 兼容ABB的各类控制系统，便于集成到现有的自动化系统中，提升系统的整体性能。

应用领域

1. 过程控制：

• 用于石油化工、冶金、制药等行业的过程控制系统中，进行关键参数的监测和控制。

2. 电力行业：

• 在发电厂和变电站中，采集和处理各种模拟信号，如电流、电压和温度信号，进行设备监控和保护。

3. 水处理：

• 应用于污水处理厂、自来水厂等水处理系统中，监测水质参数和设备运行状态，确保水处理过程的高效和安全。

4. 制造业：

• 在汽车、电子、食品等制造行业的自动化生产线中，采集和处理各种传感器信号，实现精确控制和质量监测。

5. 建筑自动化：

• 用于智能建筑的能源管理系统中，监测和控制暖通空调系统、照明系统等，提高建筑的能源效率和舒适度。

6. 环境监测：

• 在环境监测系统中，采集各种环境参数，如温度、湿度和污染物浓度，进行实时监测和数据分析。

3BSE008516R1 AI810模拟输入量模块以其高精度、多通道和高可靠性的特点，广泛应用于各个工业自动化领域，提供稳定可靠的模拟信号采集和处理解决方案。

英文资料

3BSE008516R1 AI810 is an analog input module produced by ABB, mainly used for analog signal acquisition and processing in industrial automation systems. The following are the main features and application areas of this module:

Product features

Multi channel input:

Provide 8 single ended analog input channels, which can be used to connect various sensors and devices for signal acquisition.

High precision:

Supports 12 bit resolution and provides high-precision analog signal measurement to ensure data accuracy.

Multiple input types:

Supports various types of analog input signals, such as voltage (0-10V) and current (4-20mA), to meet different application requirements.

Isolation design:

The module design includes inter channel isolation and channel to ground isolation to enhance anti-interference ability, improve system stability and security.

Modular design:

Adopting a modular structure, it is easy to install, maintain, and expand, and users can flexibly configure the system according to their actual needs.

Diagnostic function:

Equipped with self diagnostic function, it can monitor input signals and module status in real time, provide fault detection and alarm functions, and facilitate maintenance and management.

Compatibility:

Compatible with various ABB control systems, facilitating integration into existing automation systems and improving overall system performance.

application area

Process control:

Used in process control systems for industries such as petrochemicals, metallurgy, and pharmaceuticals to monitor and control key parameters.

Electricity industry:

In power plants and substations, various analog signals such as current, voltage, and temperature are collected and processed for equipment monitoring and protection.

Water treatment:

Applied in water treatment systems such as sewage treatment plants and water supply plants, monitoring water quality parameters and equipment operation status to ensure efficient and safe water treatment processes.

manufacturing

In the automated production lines of industries such as automobiles, electronics, and food, various sensor signals are collected and processed to achieve precise control and quality monitoring.

Building automation:

In the energy management system used in intelligent buildings, monitoring and controlling HVAC systems, lighting systems, etc., to improve the energy efficiency and comfort of the building.

Environmental monitoring:

In the environmental monitoring system, various environmental parameters such as temperature, humidity, and pollutant concentration are collected for real-time monitoring and data analysis.

The 3BSE008516R1 AI810 analog input module is widely used in various industrial automation fields due to its high precision, multi-channel, and high reliability, providing stable and reliable analog signal acquisition and processing solutions.

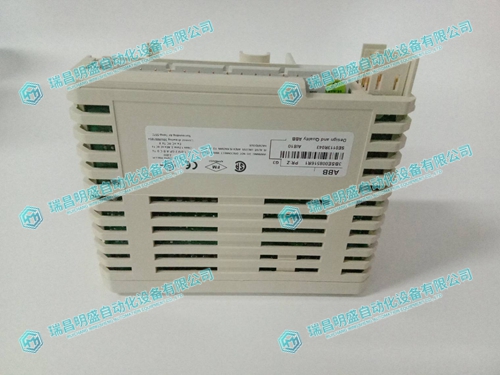

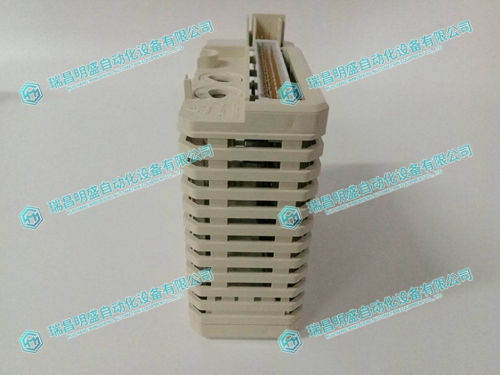

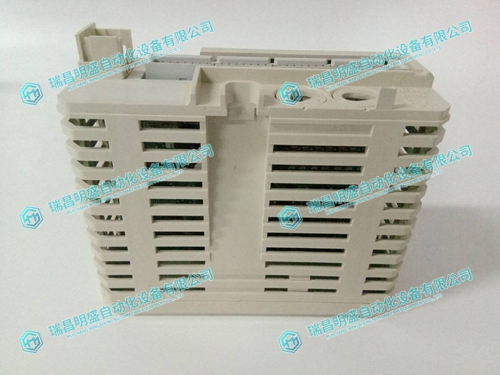

2.产      品      展      示

3.产      品      展      示

HONEYWELL 05704-A-0146 DIGITAL

PROSOFT MVI46-MCM COMMUNICATIO

GESADA-1 输入输出模块

KOLLMORGEN CP310250 伺服驱动器

本篇文章出自瑞昌明盛自动化设备有限公司官网，转载请附上此链接:HTTP://WWW.JIANGXIDCS.COM

品牌：ABB

型号： 3BSE008516R1 AI810 模拟输入量模块

质保：一年

成色：全新/二手

优势产品：ABB、GE、FOXBORO、TRICONEX、BENTLY、A-B、MOTOROLA、HONEYWELL 、SCHNEIDER

                    WOODWARD、EMERSON、RELIANCE、DEIF、NI、XYVOM等

特点：主营产品各种模块/卡件，控制器，触摸屏，伺服驱动器。

应用行业：广泛应用于冶金、石油天然气、玻璃制造业、铝业、石油化工、煤矿、造纸印刷、纺织印染、机械、电子制造、汽车制造、烟草、塑胶机械、电力、水利、水处理/环保、市政工程、锅炉供暖、能源、输配电等

快递方式：国内顺丰、德邦、京东快递包邮，按照实际报价货期发货
