OLYMPUS U-AFA2M-VIS显微镜自动对焦单元 PDF资料
1.产 品 资 料 介 绍：
OLYMPUS U-AFA2M-VIS 是奥林巴斯专为研究级显微镜设计的激光主动式自动对焦单元，安装于光路中间，可实现高速、高重复性的自动聚焦，显著提升显微观察效率。
中间13条特点
采用775-800nm激光主动对焦，速度快、精度高。
多点光斑投影技术，提升表面有高度差异样本的对焦稳定性。
对焦时间仅约0.2秒，重复精度在物镜焦深范围内。
适用于反射率3%（玻璃）至100%（镜面）的绝大多数样本。
追踪范围50μm至5000μm以上，适配不同倍率物镜。
兼容反射光明场、暗场、DIC及简易偏光等多种观察方式。
适配LMPLFLN、MPLFLN、UMPlanFl等多种系列物镜。
需配合BX-UCB控制箱及专用软件进行操作控制。
符合Class 1激光安全标准，使用安全性高。
可适配多种双目或三目观察筒等中间附件。
尺寸108×45×313mm，重量仅2.6kg，紧凑轻量。
工作温度10-35°C，湿度15%-85%，适用于室内环境。
另有对应DUV深紫外的型号，本型号专用于可见光。
结尾
总体而言，OLYMPUS U-AFA2M-VIS 凭借快速精准的激光对焦技术和广泛的样本适配性，为材料科学与半导体检测等领域的高通量显微分析提供了可靠高效的解决方案。
OLYMPUS U-AFA2M-VIS显微镜自动对焦单元 英文介绍
Olympus U-AFA2M-VIS is a laser active autofocus unit designed by Olympus specifically for research grade microscopes. It is installed in the middle of the optical path and can achieve high-speed and high repeatability autofocus, significantly improving the efficiency of microscopic observation.
13 characteristics in the middle
Adopting 775-800nm laser active focusing, fast speed and high accuracy.
Multi spot projection technology enhances the focusing stability of samples with high surface differences.
The focusing time is only about 0.2 seconds, and the repetition accuracy is within the depth of focus range of the objective lens.
Suitable for the vast majority of samples with reflectivity ranging from 3% (glass) to 100% (mirror).
Tracking range of 50 μ m to over 5000 μ m, compatible with different magnification objectives.
Compatible with various observation methods such as reflective bright field, dark field, DIC, and simple polarization.
Compatible with various series of objective lenses such as LMPLFLN, MPLFLN, UMPlanFl, etc.
It is necessary to cooperate with the BX-UCB control box and specialized software for operation and control.
Complies with Class 1 laser safety standards and has high safety during use.
Can be adapted to various intermediate accessories such as binocular or binocular observation tubes.
Size 108 × 45 × 313mm, weight only 2.6kg, compact and lightweight.
Working temperature is 10-35 ° C, humidity is 15% -85%, suitable for indoor environments.
There is also a corresponding DUV deep ultraviolet model, which is specifically designed for visible light.
ending
Overall, the OLYMPUS U-AFA2M-VIS provides a reliable and efficient solution for high-throughput microscopy analysis in fields such as materials science and semiconductor testing, thanks to its fast and precise laser focusing technology and extensive sample adaptability.

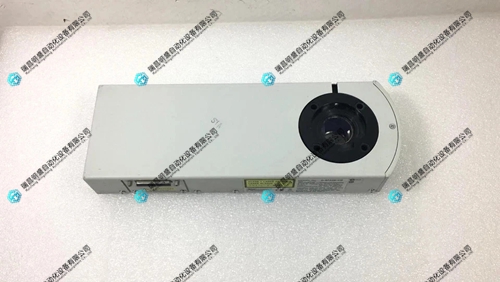

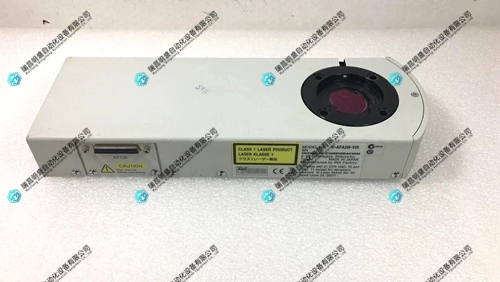

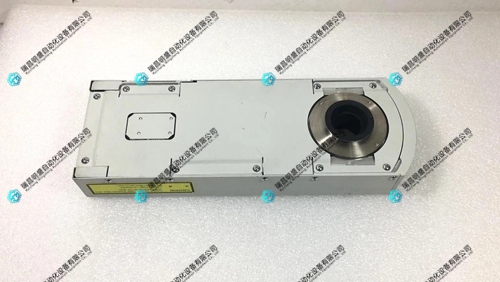

OLYMPUS U-AFA2M-VIS显微镜自动对焦单元 产品展示
