NI CRI0-9073 控制器模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
NI CRIO-9073 控制器模块 是 National Instruments (NI) 提供的一款基于 CompactRIO (cRIO) 系统的控制器，广泛应用于嵌入式控制和自动化任务。它结合了高性能的处理能力和灵活的 I/O 配置，适用于各种工业应用。
主要特点：
- 高性能处理器：配备 Intel Atom 处理器，提供强大的计算能力，适应复杂的控制和数据处理需求。
- 模块化设计：通过插入不同的 I/O 模块，用户可以根据需要定制系统的输入输出配置，支持模拟、数字、计数、热电偶等多种信号。
- 实时操作系统：运行 NI Linux Real-Time 操作系统，确保高可靠性和实时性，适合工业控制和数据采集任务。
- 集成网络功能：支持多种工业通信协议，如 Ethernet、Modbus TCP 等，能够轻松集成到现有的控制系统中。
- 便于开发和部署：提供 LabVIEW 开发环境，使得系统开发、测试和部署变得简单快捷。
技术规格：
- 处理器：Intel Atom 处理器，提供高效的计算能力，满足大部分工业控制需求。
- 操作系统：NI Linux Real-Time，专为实时控制任务设计，确保系统响应速度和稳定性。
- I/O 模块支持：支持多种类型的 I/O 模块（模拟、数字、温度等），适应不同的应用需求。
- 网络接口：具备 Ethernet 端口，支持工业网络协议，可以连接到多个设备，进行数据通信。
- 存储：内置闪存，用于存储操作系统、应用程序和数据，支持 SD 卡扩展存储。
- 电源要求：通常工作在 9-30 V DC 的电压范围内。
应用领域：
- 工业自动化：用于工业生产线的控制系统中，能够实时采集和控制多种设备。
- 测试与测量：适用于嵌入式测试系统和实验设备的监控和数据采集。
- 数据采集与监控：用于采集来自传感器的数据，并进行实时处理、报警、数据记录等操作。
- 机器人控制：可以作为机器人系统的核心控制单元，实现自主运动控制和传感器数据处理。
- 过程控制：在化工、电力等过程控制行业中，确保生产过程的自动化和监控。
英文资料：
The NI CRIO-9073 controller module is a controller provided by National Instruments (NI) based on the CompactRIO (cRIO) system, widely used in embedded control and automation tasks. It combines high-performance processing capabilities and flexible I/O configurations, making it suitable for various industrial applications.
Main features:
High performance processor: equipped with Intel Atom processor, providing powerful computing power to meet complex control and data processing requirements.
Modular design: By inserting different I/O modules, users can customize the input and output configuration of the system according to their needs, supporting various signals such as analog, digital, counting, thermocouple, etc.
Real time operating system: Run NI Linux Real Time operating system to ensure high reliability and real-time performance, suitable for industrial control and data acquisition tasks.
Integrated network functionality: Supports multiple industrial communication protocols such as Ethernet, Modbus TCP, etc., making it easy to integrate into existing control systems.
Easy to develop and deploy: Provides LabVIEW development environment, making system development, testing, and deployment simple and fast.
Technical specifications:
Processor: Intel Atom processor, providing efficient computing power to meet most industrial control needs.
Operating System: NI Linux Real-Time， Specially designed for real-time control tasks, ensuring system response speed and stability.
I/O module support: Supports multiple types of I/O modules (analog, digital, temperature, etc.) to meet different application requirements.
Network Interface: Equipped with Ethernet ports, supports industrial network protocols, and can connect to multiple devices for data communication.
Storage: Built in flash memory for storing operating systems, applications, and data, supporting SD card expansion storage.
Power Requirements: Typically operates within a voltage range of 9-30 V DC.
Application areas:
Industrial automation: used in control systems for industrial production lines, capable of real-time acquisition and control of various devices.
Testing and Measurement: Suitable for monitoring and data acquisition of embedded testing systems and experimental equipment.
Data collection and monitoring: used to collect data from sensors and perform real-time processing, alarm, data recording, and other operations.
Robot control: It can serve as the core control unit of robot systems, achieving autonomous motion control and sensor data processing.
Process control: Ensure the automation and monitoring of production processes in industries such as chemical and electrical control.

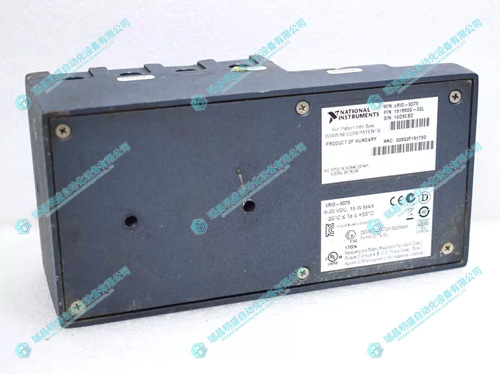

2.产 品 展 示
