NI PXIE-5122 779967-03高速数字化仪卡 PDF资料
1.产 品 资 料 介 绍：
中文资料：
NI PXIe-5122（部件号 779967-03）是一款由国家仪器（National Instruments）生产的高性能 PXI Express 示波器模块。它提供两个通道，模拟带宽为 100 MHz，采样率最高可达 100 MS/s，分辨率为 14 位。该设备适用于需要高分辨率、低噪声测量的时域和频域应用。
主要特点：
高分辨率和低噪声：提供高达 14 位的分辨率和低噪声性能，确保精确的信号捕获和分析。
灵活的输入配置：支持多种耦合、阻抗和电压范围设置，满足不同应用需求。
多种触发模式：包括边沿、数字、立即和软件触发模式，增强了触发灵活性。
大容量板载内存：配备高达 512 MB 的板载内存，支持长时间的数据采集。
高级同步和数据流功能：支持 PXI 同步和数据流功能，适用于多通道和混合信号应用。
应用领域：
雷达和超声波测试：适用于需要短触发重装载时间的应用，如雷达和超声波测试。
事件识别：在需要捕获和分析快速事件的应用中表现出色。
英文资料：
NI PXIe-5122 (part number 779967-03) is a high-performance PXI Express oscilloscope module produced by National Instruments. It provides two channels, with an analog bandwidth of 100 MHz, a sampling rate of up to 100 MS/s, and a resolution of 14 bits. This device is suitable for time-domain and frequency-domain applications that require high-resolution, low-noise measurements.
Main features:
High resolution and low noise: Provides up to 14 bit resolution and low noise performance, ensuring accurate signal capture and analysis.
Flexible input configuration: supports multiple coupling, impedance, and voltage range settings to meet different application requirements.
Multiple triggering modes: including edge, digital, immediate, and software triggering modes, enhancing triggering flexibility.
Large capacity onboard memory: equipped with up to 512 MB of onboard memory, supporting long-term data acquisition.
Advanced synchronization and data streaming functions: Supports PXI synchronization and data streaming functions, suitable for multi-channel and mixed signal applications.
Application areas:
Radar and Ultrasonic Testing: Suitable for applications that require short trigger reload times, such as radar and ultrasonic testing.
Event recognition: performs well in applications that require capturing and analyzing rapid events.

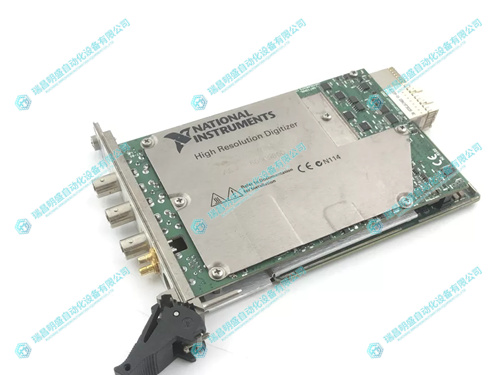

2.产 品 展 示
