DS215KLDBG1AZZ03A DS200KLDBG1ABC模拟量输出模块
1.产 品 资 料 介 绍：
中文资料：
DS215KLDBG1AZZ03A和DS200KLDBG1ABC模拟量输出模块的产品特点可以归纳如下：
一、品牌与型号
- 品牌：GE（通用电气）
- 型号：DS215KLDBG1AZZ03A和DS200KLDBG1ABC
二、功能与应用
- 系统冗余性：这两款模块均为冗余模块型号，用于提供系统冗余性以防止控制系统单点故障。在一个模块失效时，能够自动切换到备用模块，支持热备份，允许在不中断系统操作的情况下替换故障模块。
- 广泛应用：适用于工业自动化、电力系统、交通控制系统和通信设备等关键性应用，确保生产过程的连续性和稳定性、电力系统的可靠性以及交通信号控制系统的可靠运行。
三、技术规格
- DS215KLDBG1AZZ03A的规格：
- 额定功率：分别为5、10和22千瓦（460V时）。
- 输入功率：360伏交流电转换为480伏交流电，三个相位，50/60Hz。
- 5和10kW系统模块具有内部分流电阻器200W的连续额定功率和40000W的峰值额定功率。
- 22千瓦系统模块需要一个外部分流模块。
- 工作电压与频率：根据参考文章，虽然没有直接提及这两款模块的具体工作电压和频率，但它们是作为系统的一部分进行配置的，并可能根据具体的应用需求而有所变化。
四、其他特点
- 可靠性：这些模块被设计为提高控制系统的可靠性，特别是在关键性应用中。
- 兼容性：可能支持多种通信协议和标准，以实现与其他设备的无缝集成。
英文资料
The product characteristics of DS215KLDBG1AZZ03A and DS200KLDBG1ABC analog output modules can be summarized as follows:
1、 Brand and model
Brand: GE (General Electric)
Models: DS215KLDBG1AZZ03A and DS200KLDBG1ABC
2、 Features and Applications
System redundancy: Both modules are redundant module models used to provide system redundancy to prevent single points of control system failure. When a module fails, it can automatically switch to a backup module, support hot backup, and allow the replacement of faulty modules without interrupting system operations.
Widely applicable: Suitable for critical applications such as industrial automation, power systems, traffic control systems, and communication equipment, ensuring the continuity and stability of production processes, reliability of power systems, and reliable operation of traffic signal control systems.
3、 Technical specifications
Specifications of DS215KLDBG1AZZ03A:
Rated power: 5, 10, and 22 kW (at 460V) respectively.
Input power: 360 V AC converted to 480 V AC, three phases, 50/60Hz.
The 5 and 10kW system modules have an internal shunt resistor with a continuous rated power of 200W and a peak rated power of 40000 W.
The 22 kW system module requires an external shunt module.
Working voltage and frequency: According to the reference article, although the specific working voltage and frequency of these two modules are not directly mentioned, they are configured as part of the system and may vary according to specific application requirements.
4、 Other features
Reliability: These modules are designed to improve the reliability of control systems, especially in critical applications.
Compatibility: It may support multiple communication protocols and standards to achieve seamless integration with other devices.

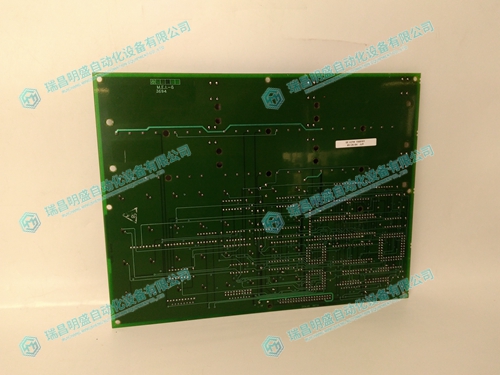

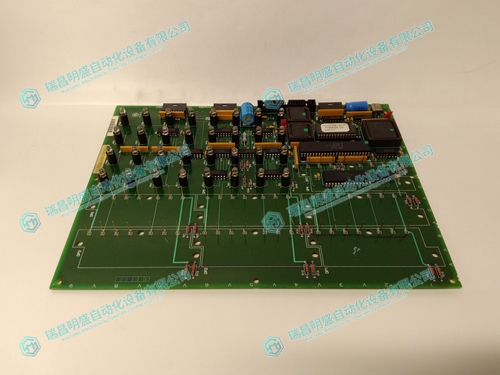

2.产 品 展 示
3.产 品 展 示
