ACS CMba2B24N0NEBC240-ORB1 运动控制模块 PDF资料
1.产 品 资 料 介 绍：
ACS CMba2B24N0NEBC240-ORB1 运动控制模块为ACS Motion Control旗下SPiiPlus平台产品，属于紧凑型驱控一体模块，适用于半导体制造、精密激光加工及电子组装等高速高精度应用场景。
该模块为CMBA系列驱控一体产品，集成运动控制器与伺服驱动器功能于一体。
可同时控制最多4轴，适配直线电机、音圈电机、有刷/无刷直流电机及步进电机等多种电机类型。
支持EtherCAT工业以太网总线通信，符合DS402标准协议。
内置高性能多处理器架构，伺服环更新速率最高可达20kHz。
采用ACSPL+实时多任务脚本编程语言，支持64个缓冲区任务并行运行。
配备标准数字量I/O与模拟量接口，支持与PLC及上位机灵活集成。
内置ServoBoost高级伺服算法，优化重复运动性能。
支持龙门控制、力闭环控制、激光同步触发等高级功能。
支持通过MMI调试软件进行参数配置、运动监控与示波器分析。
具备位置触发事件生成与高速位置捕获功能，实现运动与工艺同步。
工业级设计，适应半导体洁净室与工厂连续运行环境。
体积紧凑，适合设备内部有限空间安装。
提供API开发包，支持C#、.NET、Python等上位机二次开发。
后缀含NEBC240-ORB1，为特定电流等级或功能授权配置。
结尾： ACS CMba2B24N0NEBC240-ORB1 以高性能驱控一体设计和全面的运动控制功能，为精密自动化设备提供高效的运动控制解决方案。
ACS CMba2B24N0NEBC240-ORB1 运动控制模块 英文介绍
The ACS CMba2B24N0NEBC240-ORB1 motion control module is a SPiiPlus platform product under ACS Motion Control. It is a compact drive control integrated module suitable for high-speed and high-precision applications such as semiconductor manufacturing, precision laser processing, and electronic assembly.
This module is a CMBA series drive control integrated product, which integrates motion controller and servo drive functions.
It can control up to 4 axes simultaneously and is compatible with various motor types such as linear motors, voice coil motors, brushed/brushless DC motors, and stepper motors.
Supports EtherCAT industrial Ethernet bus communication and complies with the DS402 standard protocol.
Built in high-performance multiprocessor architecture, servo loop update rate can reach up to 20kHz.
Adopting ACSPL+real-time multitasking scripting programming language, supporting parallel execution of 64 buffer tasks.
Equipped with standard digital I/O and analog interfaces, supporting flexible integration with PLC and upper computer.
Built in ServoBoost advanced servo algorithm to optimize repetitive motion performance.
Support advanced functions such as gantry control, force closed-loop control, and laser synchronous triggering.
Support parameter configuration, motion monitoring, and oscilloscope analysis through MMI debugging software.
Capable of generating location triggered events and capturing high-speed positions, achieving synchronization between motion and process.
Industrial grade design, suitable for continuous operation environments in semiconductor cleanrooms and factories.
Compact in size, suitable for installation in limited internal space of equipment.
Provide API development kit, supporting secondary development of upper computer such as C #,. NET, Python, etc.
The suffix contains NEBC240-ORB1, which is a specific current level or functional authorization configuration.
Conclusion: ACS CMba2B24N0NEBC240-ORB1 provides efficient motion control solutions for precision automation equipment with high-performance integrated drive control design and comprehensive motion control functions.

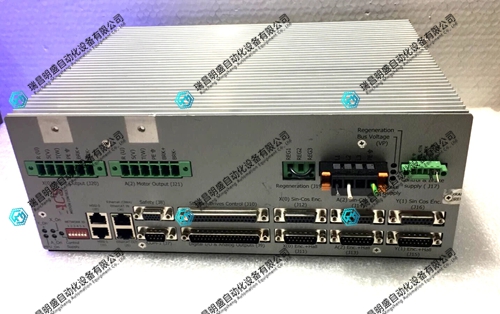

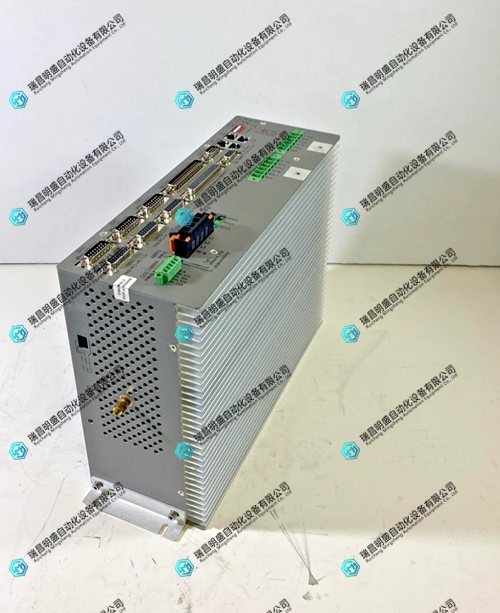

ACS CMba2B24N0NEBC240-ORB1 运动控制模块 产品展示
