TEL T-3044SS印刷电路板 PDF资料
1.产 品 资 料 介 绍：
TEL T-3044SS 印刷电路板产品特点
- 高密度多层线路，同步传输多路工艺控制信号
- 独立隔离布线，有效屏蔽机柜电磁干扰
- 加厚导电铜箔，大电流传输温升更低更稳定
- 精密金属化通孔，多层线路连接不易断路
- 预留多组信号端子，对接腔体各类传感器件
- 耐高温阻焊涂层，耐受机柜高低温交替环境
- 加固线路布局，设备长期震动不易出现虚焊
- 自带滤波线路，保障工艺时序精准无偏移
- 多处预留测试点位，故障检修测量方便快捷
- 无尘车间原厂生产，无微粒污染晶圆制程
- 卡插式安装结构，拆装更换无需改动线路
- 集成多通道通讯走线，联动整机各类板卡
- 内置短路防护线路，异常时快速切断回路
- 元器件分区排布，损坏元件可单独更换维修
- 统一原厂版型尺寸，同型号备件直装替换TEL T-3044SS 印刷电路板信号传输稳定、检修便捷，是 TEL 半导体工艺设备核心线路备件。
TEL T-3044SS印刷电路板 英文介绍
TEL T-3044SS Printed Circuit Board Product Features
TEL T-3044SS is a specialized functional PCB board for Tokyo Electronic Semiconductor Equipment, responsible for machine signal transmission and logic control, suitable for use in dust-free production lines. Its characteristics are as follows:
High density multi-layer circuit, synchronous transmission of multiple process control signals
Independent isolation wiring effectively shields cabinet electromagnetic interference
Thickened conductive copper foil, lower and more stable temperature rise for high current transmission
Precision metalized through holes, multi-layer circuit connections are not easily broken
Reserve multiple sets of signal terminals to interface with various sensor components in the cavity
High temperature resistant solder mask coating, capable of withstanding alternating high and low temperature environments in cabinets
Strengthen the layout of the circuit to prevent virtual soldering caused by long-term vibration of the equipment
Equipped with a built-in filtering circuit to ensure precise and unbiased process timing
Multiple reserved testing points are available for convenient and efficient troubleshooting and measurement
Original production in dust-free workshop, no particle pollution in wafer process
Card insertion installation structure, disassembly and replacement without changing the circuit
Integrated multi-channel communication wiring, linked with various boards of the whole machine
Built in short-circuit protection circuit, quickly cuts off the circuit in case of abnormalities
Partition arrangement of components, damaged components can be replaced and repaired separately
Unified original factory model size, direct installation replacement of spare parts of the same model
TEL T-3044SS printed circuit board has stable signal transmission and convenient maintenance, making it a core circuit spare part for TEL semiconductor process equipment.

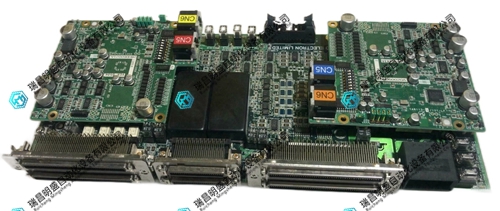

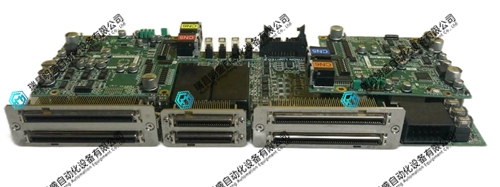

TEL T-3044SS印刷电路板 产品展示
