RENISHAW  RPI20-P9-XX M-5225-0521-04印刷电路板  PDF资料

1.产 品 资 料 介 绍：

RENISHAW RPI20-P9-XX (M-5225-0521-04) 印刷电路板产品特点：

1. 雷尼绍原厂RPI20并行接口板

2. P9型号采用90°连接器，适用于VME主机PCB安装

3. 用于RLE激光干涉仪编码器系统，将1Vpp模拟正弦/余弦信号转换为位置读数

4. 支持36位二进制补码格式位置数据输出

5. 分辨率高达38皮米，满足超高精度测量需求

6. 最高测量速度可达2 m/s

7. 位置噪声贡献低于38 pm（RMS）

8. 支持最多7轴多轴系统配置，通过板载DIP开关分配地址

9. 数据读取延迟仅80 ns，响应迅速

10. 板载DIP开关用户可选择输出分辨率

11. 寄存器式架构设计，简化系统集成

12. 支持VME总线架构，可搭载1至2块RPI20组成VME主机板卡

13. 独立安装时采用5V供电，工作电流0.5A

14. 提供位置数据、信号强度及误差状态等多状态信息读取

15. 适用于晶圆检测、光刻等半导体前道工序及精密计量应用

总结：RENISHAW RPI20-P9-XX 并行接口板以高达38皮米的超高分辨率、灵活的轴配置能力和VME总线兼容性为核心特点，为半导体制造和精密计量领域提供高性能位置反馈解决方案。

RENISHAW  RPI20-P9-XX M-5225-0521-04印刷电路板  英文介绍

RENISHAW RPI20-P9-XX (M-5225-0521-04) Printed Circuit Board Product Features:

Renishaw Original RPI20 Parallel Interface Board

P9 model adopts a 90 ° connector, suitable for VME host PCB installation

Used for RLE laser interferometer encoder system to convert 1Vpp analog sine/cosine signals into position readings

Support 36 bit binary complement format position data output

With a resolution of up to 38 picometers, it meets the requirements of ultra-high precision measurement

The maximum measurement speed can reach 2 m/s

Position noise contribution below 38 pm (RMS)

Supports up to 7-axis multi axis system configuration, with address allocation through onboard DIP switches

Data read delay of only 80 ns, fast response

On board DIP switch allows users to choose output resolution

Register based architecture design simplifies system integration

Supports VME bus architecture and can be equipped with 1 to 2 RPI20 modules to form a VME host board

When installed independently, it is powered by 5V and has a working current of 0.5A

Provide multi state information reading such as location data, signal strength, and error status

Suitable for semiconductor pre-processing such as wafer inspection, photolithography, and precision metrology applications

Summary: The RENISHAW RPI20-P9-XX parallel interface board features ultra-high resolution of up to 38 picometers, flexible axis configuration capability, and VME bus compatibility as its core features, providing high-performance position feedback solutions for semiconductor manufacturing and precision metrology fields.

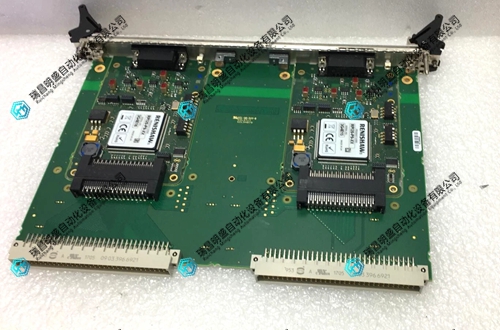

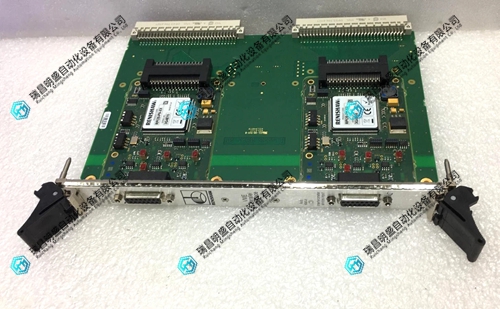

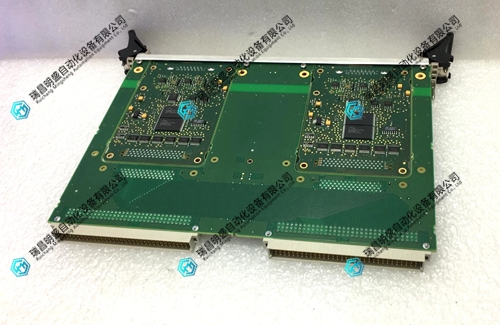

RENISHAW  RPI20-P9-XX M-5225-0521-04印刷电路板  产品展示
