ADAS ICM622 总线数据中继板 PDF资料
1.产 品 资 料 介 绍：
ADAS ICM622 是一款用于工业现场总线网络的数据中继板，主要解决总线信号在长距离传输中的衰减、畸变和驱动能力下降问题。
中间10条
该板卡接收一侧总线信号，经整形放大后从另一侧重新发送。
支持 Profibus、CAN 或 RS485 等差分信号总线的物理层中继。
每段中继可延长总线距离约 1000 米至 1200 米，视速率而定。
板卡内置信号再生电路，能恢复因长线传输导致的边沿变缓。
两端总线可工作在不同的波特率，实现速率转换功能。
采用电气隔离设计，将中继前后的总线段彼此分离，避免相互干扰。
中继方向可选单向或双向，适应不同网络拓扑结构。
具备短路保护功能，某一段总线短路时不会影响其他段。
中继状态通过面板指示灯显示，包括接收、发送和故障三种状态。
适用于跨车间、跨厂房的远距离总线布线场景。
结尾
总的来说，ADAS ICM622 不是简单的信号复制器，而是具备信号再生、速率适配和故障隔离功能的智能总线中继板。
ADAS ICM622 总线数据中继板 英文介绍
ADAS ICM622 is a data relay board used in industrial fieldbus networks, mainly to solve the problems of attenuation, distortion, and reduced driving capability of bus signals during long-distance transmission.
10 in the middle
The board receives bus signals from one side, which are then shaped and amplified before being resent from the other side.
Supports physical layer relay for differential signal buses such as Profibus, CAN, or RS485.
Each relay can extend the bus distance by approximately 1000 to 1200 meters, depending on the speed.
The board is equipped with a built-in signal regeneration circuit, which can restore the edge buffering caused by long-distance transmission.
The two end bus can operate at different baud rates to achieve rate conversion function.
Adopting electrical isolation design, the main line segments before and after the relay are separated from each other to avoid mutual interference.
The relay direction can be unidirectional or bidirectional, adapting to different network topologies.
Equipped with short-circuit protection function, a short circuit in one section of the bus will not affect other sections.
The relay status is displayed through panel indicator lights, including three states: receive, send, and fault.
Suitable for long-distance bus wiring scenarios across workshops and factories.
ending
Overall, ADAS ICM622 is not a simple signal duplicator, but an intelligent bus relay board with signal regeneration, rate adaptation, and fault isolation functions.

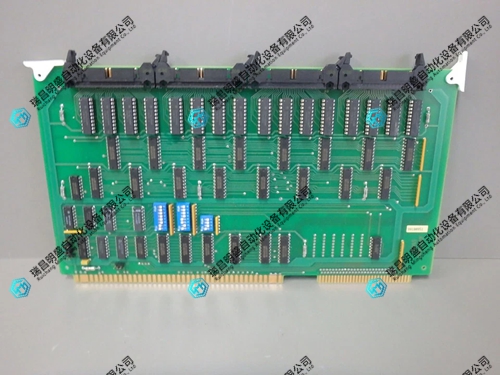

ADAS ICM622 总线数据中继板 产品展示
