FCU400-IR温度监测器 PDF资料
1.产 品 资 料 介 绍：
ABB FCU400-IR 温度监测器产品特点
开头：
ABB FCU400-IR 是 SensyCal 系列的一款非接触式红外温度监测系统，专为中压开关设备母线接点、断路器等带电部件的热点监测而设计，通过红外测温技术实现实时温度监控，防止因接触电阻升高导致的局部过热和设备损坏。
中间（15条特点）：
非接触式红外测温，无需与带电部件直接接触，安全可靠。
单套系统最多可监测 12 个热点，适用于大型开关柜多点监控。
测温范围 -20℃ 至 +350℃，可通过软件扩展。
测温精度 ±1.5℃ 或 ±1.5% 读数。
温度分辨率 0.1℃，光学分辨率 10:1 或 15:1。
系统整体响应时间小于 1 秒。
配备 3 路二进制开关量输出，对应预报警、主报警和设备故障。
支持 MODBUS RS485 通信及 4-20mA 模拟量输出。
具备多种接口，支持数据读取与参数配置。
测量计算机配备带背光 LCD 显示屏，可现场查看温度数据。
内置数据记录器与实时时钟，可记录温度及报警时间。
红外传感器防护等级 IP65，测量计算机防护等级 IP40。
传感器工作温度 -20℃ 至 +75℃，测量计算机 -5℃ 至 +55℃。
全金属外壳设计，具备完整的电磁干扰防护功能。
可选配 Pt100 环境温度传感器，用于测量母线区域环境温度。
结尾：
综上所述，ABB FCU400-IR 温度监测器具有非接触测温、多点监控、响应快速及模块化设计等特点，是保障中压开关设备安全运行、预防过热故障的关键在线监测设备。
FCU400-IR温度监测器 英文介绍
Product Features of ABB FCU400-IR Temperature Monitor
beginning
ABB FCU400-IR is a non-contact infrared temperature monitoring system from the SensyCal series, designed specifically for hot spot monitoring of live parts such as busbar contacts and circuit breakers in medium voltage switchgear. Real time temperature monitoring is achieved through infrared temperature measurement technology to prevent local overheating and equipment damage caused by increased contact resistance.
Middle (15 characteristics):
Non contact infrared temperature measurement, without direct contact with live parts, safe and reliable.
A single system can monitor up to 12 hotspots, suitable for multi-point monitoring of large switchgear.
The temperature measurement range is -20 ℃ to+350 ℃, which can be extended through software.
Temperature measurement accuracy ± 1.5 ℃ or ± 1.5% reading.
The temperature resolution is 0.1 ℃, and the optical resolution is 10:1 or 15:1.
The overall response time of the system is less than 1 second.
Equipped with 3 binary switch outputs, corresponding to pre alarm, main alarm, and equipment failure.
Supports MODBUS RS485 communication and 4-20mA analog output.
Equipped with multiple interfaces, supporting data reading and parameter configuration.
The measurement computer is equipped with a backlit LCD display screen, which allows for on-site viewing of temperature data.
Built in data logger and real-time clock, capable of recording temperature and alarm time.
The protection level of the infrared sensor is IP65, and the protection level of the measuring computer is IP40.
The working temperature of the sensor is -20 ℃ to+75 ℃, and the measuring computer is -5 ℃ to+55 ℃.
All metal shell design, with complete electromagnetic interference protection function.
An optional Pt100 ambient temperature sensor can be used to measure the ambient temperature in the busbar area.
Ending
In summary, the ABB FCU400-IR temperature monitor has the characteristics of non-contact temperature measurement, multi-point monitoring, fast response, and modular design. It is a key online monitoring device to ensure the safe operation of medium voltage switchgear and prevent overheating faults.

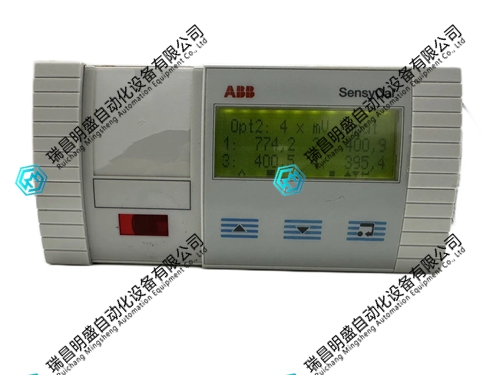

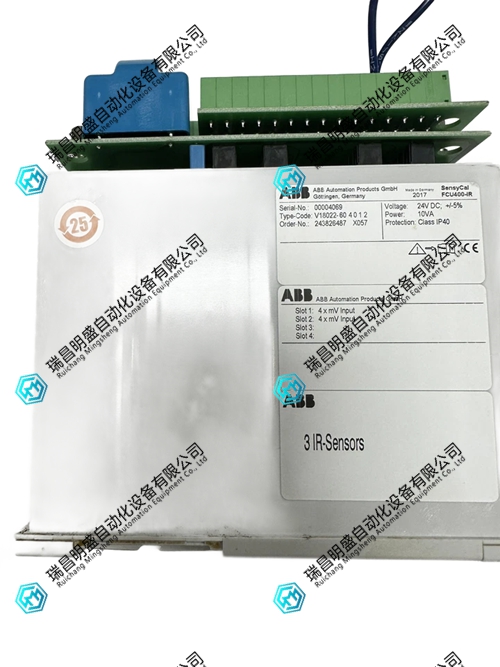

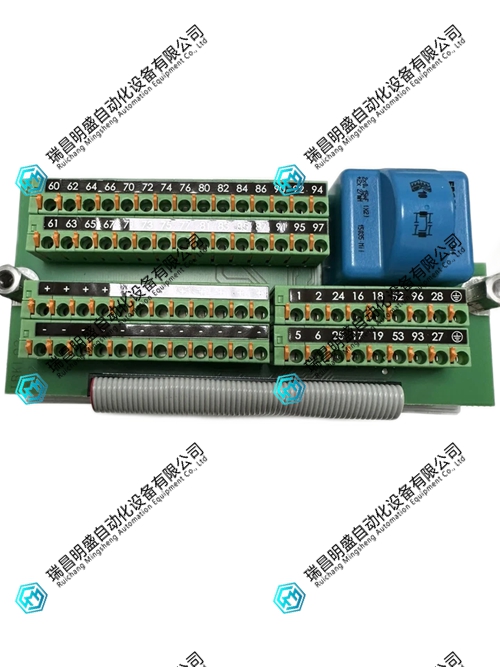

FCU400-IR温度监测器 产品展示
