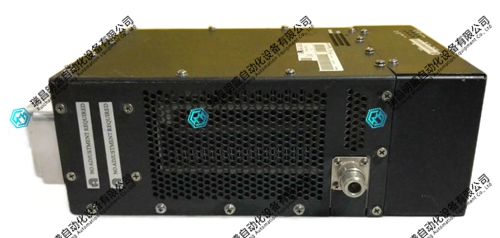

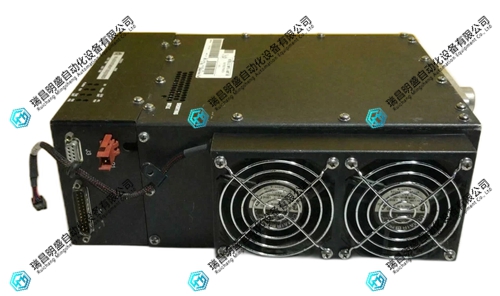

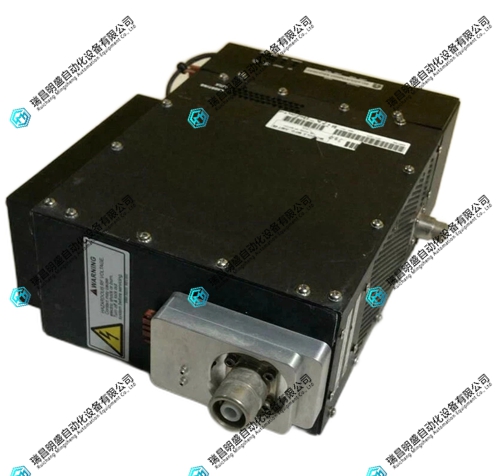

AMAT 0010-013878射频匹配器 PDF资料
1.产 品 资 料 介 绍：
AMAT 0010-013878 射频匹配器是应用材料（Applied Materials）为半导体PVD设备配套的专用模块，其核心特点总结如下：
部件编号0010-013878，为AMAT内部专用备件编号。
全称为Manufacturing Heater PCII/E RF Match，专用于PVD工艺。
主要功能是自动匹配负载阻抗与射频源阻抗，确保能量高效传输。
工作频率为13.56 MHz，符合半导体工业标准。
适用于AMAT PVD设备中的加热器控制电路。
具备自动阻抗调节功能，内置可变电容及步进电机驱动。
实时监测正向功率与反射功率，自动优化匹配状态。
配备专用通信接口，与设备主控制器进行数据交互。
采用模块化插拔式设计，便于设备维护与更换。
具备过压、过温、反射功率过高等多重保护功能。
常用于AMAT的Endura、Centura等PVD工艺平台。
作为原厂备件流通，主要用于旧型号设备的维修替换。
外壳结构紧凑，符合半导体洁净室标准。
配合水冷或风冷散热，确保高功率运行时的热稳定性。
保障射频能量稳定耦合至工艺腔室，直接影响薄膜沉积质量。
结尾： 综上所述，AMAT 0010-013878 射频匹配器具有专用于PVD工艺、自动阻抗匹配及适配AMAT设备平台的特点，是半导体物理气相沉积系统中保障射频能量传输稳定的关键部件。
AMAT 0010-013878 RF Matcher is a specialized module designed for semiconductor PVD equipment using Applied Materials. Its core features are summarized as follows:
The part number 0010-013878 is an internal specialized spare part number for AMAT.
The full name is Manufacturing Heater PCII/E RF Match, specifically designed for PVD processes.
The main function is to automatically match the load impedance with the RF source impedance, ensuring efficient energy transmission.
The operating frequency is 13.56 MHz, which complies with semiconductor industry standards.
Suitable for heater control circuits in AMAT PVD equipment.
Equipped with automatic impedance adjustment function, built-in variable capacitor and stepper motor drive.
Real time monitoring of forward power and reflected power, automatic optimization of matching status.
Equipped with a dedicated communication interface for data exchange with the device's main controller.
Adopting a modular plug-in design, it facilitates equipment maintenance and replacement.
It has multiple protection functions such as overvoltage, overheating, and high reflected power.
Commonly used for PVD process platforms such as Endura and Centura in AMAT.
As an original spare parts circulation, it is mainly used for the maintenance and replacement of old model equipment.
The shell structure is compact and meets the standards of semiconductor cleanrooms.
Cooperate with water or air cooling to ensure thermal stability during high-power operation.
Ensuring stable coupling of RF energy to the process chamber directly affects the quality of thin film deposition.
Conclusion: In summary, the AMAT 0010-013878 RF Matcher has the characteristics of being dedicated to PVD processes, automatic impedance matching, and adapting to AMAT equipment platforms. It is a key component in semiconductor physical vapor deposition systems to ensure stable RF energy transmission.
