VME-7851RC-120通信模块 PDF资料
1.产 品 资 料 介 绍：
VME-7851RC-120 作为 GE Fanuc / Abaco Systems 生产的高性能 VME 总线单板计算机，具备强大的计算能力与通信扩展功能，其核心特点总结如下：
基于 Intel Pentium M 处理器，主频最高可达 2.2 GHz。
采用 6U VME 双槽 Eurocard 架构，符合 VME64X 标准。
可作为 VME 总线主控制器，支持 A32/D32 地址与数据空间。
板载最高 1 GB DDR SDRAM 内存，配备单个 SODIMM 插槽。
配备双 10/100 Mbps 以太网控制器，满足网络通信需求。
提供 2-3 个 RS-232 串行接口和 2-4 个 USB 2.0 接口。
支持 SVGA 与 DVI-I 双显示输出，具备图形处理能力。
配备 1 个 PCI-X PMC 扩展站点，可连接功能扩展模块。
支持 CompactFlash 可启动存储，便于系统部署与维护。
内置可编程看门狗定时器与实时时钟，保障系统稳定运行。
采用无风扇被动冷却设计，消除活动部件故障风险。
工作温度范围为 0°C 至 +60°C，适用于工业环境。
具备增强总线错误处理与校验功能，确保数据完整性。
支持 VME64 多路复用块传输，提升数据吞吐效率。
常用于航空航天、国防、工业自动化等严苛场景。
结尾： 综上所述，VME-7851RC-120 通信模块具有处理性能强、VME 总线兼容性高、接口丰富及可靠性突出的特点，适用于构建高稳定性要求的数据通信与控制系统。
VME-7851RC-120通信模块 英文介绍
As a high-performance VME bus single board computer produced by GE Fanuc/Abaco Systems, the VME-7851RC-120 has powerful computing capabilities and communication expansion functions. Its core features are summarized as follows:
Based on Intel Pentium M processor, the maximum clock speed can reach 2.2 GHz.
Adopting a 6U VME dual slot Eurocard architecture, compliant with the VME64X standard.
Can serve as the main controller for VME bus, supporting A32/D32 addresses and data space.
Onboard up to 1 GB DDR SDRAM memory, equipped with a single SODIMM slot.
Equipped with dual 10/100 Mbps Ethernet controllers to meet network communication needs.
Provide 2-3 RS-232 serial interfaces and 2-4 USB 2.0 interfaces.
Supports SVGA and DVI-Idual display output, with graphics processing capabilities.
Equipped with one PCI-X PMC expansion site, capable of connecting functional expansion modules.
Supports CompactFlash bootable storage for easy system deployment and maintenance.
Built in programmable watchdog timer and real-time clock ensure stable system operation.
Adopting a fanless passive cooling design to eliminate the risk of faulty moving parts.
The working temperature range is from 0 ° C to+60 ° C, suitable for industrial environments.
Equipped with enhanced bus error handling and verification capabilities to ensure data integrity.
Support VME64 multiplex block transmission to improve data throughput efficiency.
Commonly used in harsh scenarios such as aerospace, defense, and industrial automation.
Conclusion: In summary, the VME-7851RC-120 communication module has strong processing performance, high compatibility with the VME bus, rich interfaces, and outstanding reliability, making it suitable for building data communication and control systems with high stability requirements.

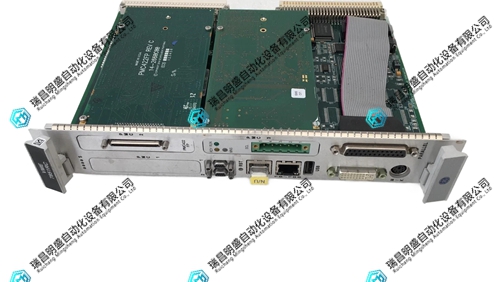

VME-7851RC-120通信模块 产品展示
