AMAT 0090-A7121 射频控制器 PDF资料
1.产 品 资 料 介 绍：

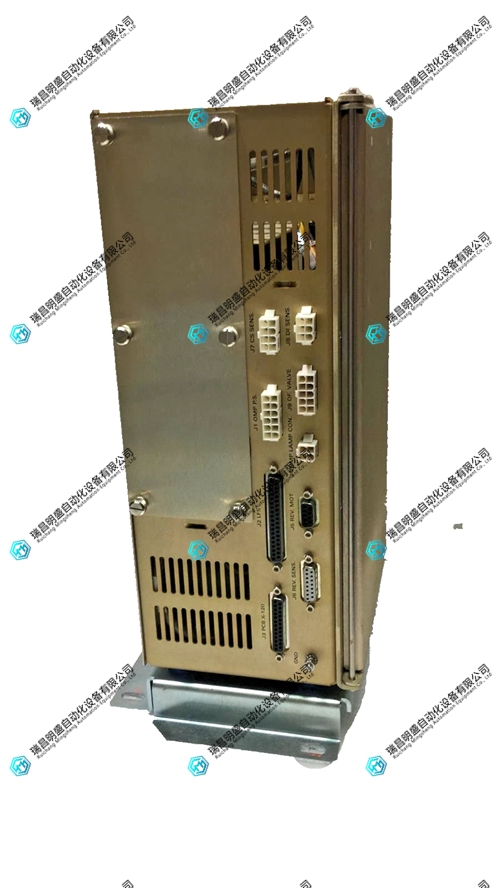

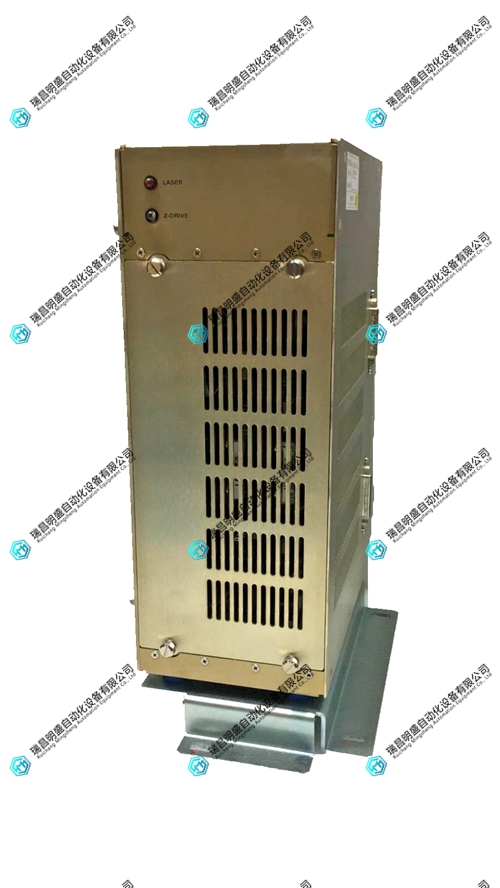

AMAT 0090-A7121 是美国应用材料（Applied Materials）半导体设备中的一款专用射频控制器，通常用于刻蚀或沉积腔室内等离子体生成的射频功率调节与控制，配合射频发生器实现精确的能量输出。
产品特点（15条）
专为 AMAT 半导体设备定制，属原厂系统级备件
推测用于刻蚀或 CVD 沉积腔室的射频功率控制
与射频发生器配合工作，实现等离子体能量调节
具备射频功率输出闭环控制功能
可实时监测正向功率与反射功率数值
内置自动频率调谐能力，保持阻抗匹配
支持与主控制器通过专用背板协议通信
具备射频开关控制功能，实现脉冲等离子体工艺
模块化插拔设计，便于现场维护更换
面板设有 LED 指示灯，显示运行及故障状态
电路板涂覆三防漆，适应 Fab 环境
推测适配 13.56MHz 或 2MHz 工业射频频率
具备过功率反射保护，防止腔体损坏
支持与匹配器协同工作，优化功率传输效率
原厂备件，生命周期较长
结尾
0090-A7121 以精确的射频功率控制和稳定的系统兼容性为核心优势，是 AMAT 半导体刻蚀与沉积设备中等离子体生成的关键控制模块。
AMAT 0090-A7121 is a specialized RF controller used in Applied Materials semiconductor equipment in the United States. It is typically used for RF power regulation and control of plasma generation in etching or deposition chambers, in conjunction with RF generators to achieve precise energy output.
Product features (15 items)
Specially customized for AMAT semiconductor equipment, it is an original factory system level spare part
Speculation on RF power control for etching or CVD deposition chambers
Cooperate with RF generator to achieve plasma energy regulation
Equipped with RF power output closed-loop control function
Real time monitoring of forward power and reflected power values
Built in automatic frequency tuning capability to maintain impedance matching
Support communication with the main controller through a dedicated backplane protocol
Equipped with RF switch control function, realizing pulse plasma process
Modular plug-in design, convenient for on-site maintenance and replacement
The panel is equipped with LED indicator lights to display the operation and fault status
Circuit board coated with three proof paint, suitable for Fab environment
Speculatively suitable for 13.56MHz or 2MHz industrial RF frequencies
Equipped with high-power reflection protection to prevent damage to the cavity
Support collaborative work with matchers to optimize power transmission efficiency
Original spare parts with a long lifecycle
ending
0090-A7121 is a key control module for plasma generation in AMAT semiconductor etching and deposition equipment, with precise RF power control and stable system compatibility as its core advantages.
