BOBST 701-1264F继电器板 PDF资料
1.产 品 资 料 介 绍：
BOBST 701-1264F 继电器板用于设备内部信号隔离与功率驱动，负责控制电磁阀、接触器等外围元件动作。
中间15条
原厂设计，与 BOBST 特定机型完全兼容。
采用工业级继电器，触点寿命长。
701-1264F 集成多组继电器，可同时控制多个负载。
触点容量较高，适合驱动电磁阀、接触器、指示灯等。
继电器带续流二极管，抑制反向电动势，保护驱动电路。
线圈驱动侧与控制侧隔离，增强抗干扰能力。
工作电压通常为 DC 24V，适配 BOBST 设备内部电源。
板载 LED 指示灯，每个继电器对应独立状态显示。
表面涂有三防漆，防潮、防尘、防腐蚀。
采用玻纤 PCB 基板，机械强度高，不易变形。
继电器采用密封结构，适用于有粉尘或湿气的车间环境。
输入接口采用防插反设计，安装维护不易出错。
板面印有型号与编号丝印，便于追溯与快速识别。
尺寸紧凑，重量约 1.2kg，便于机柜内安装。
701-1264F 可提供维修与替换服务，适配已停产机型。
结尾
总结：本型号（701-1264F）继电器板可靠性高、驱动能力强，适用于 BOBST 设备的负载控制场景。使用时注意断电操作，并确认负载电流不超过触点额定值。
BOBST 701-1264F继电器板 英文介绍
BOBST 701-1264F relay board is used for internal signal isolation and power drive of equipment, responsible for controlling the action of peripheral components such as solenoid valves and contactors.
15 in the middle
Original factory design, fully compatible with BOBST specific models.
Adopting industrial grade relays with long contact life.
701-1264F integrates multiple sets of relays, which can simultaneously control multiple loads.
High contact capacity, suitable for driving solenoid valves, contactors, indicator lights, etc.
The relay is equipped with a freewheeling diode to suppress reverse electromotive force and protect the drive circuit.
The coil drive side is isolated from the control side to enhance anti-interference capability.
The working voltage is usually DC 24V, suitable for the internal power supply of BOBST equipment.
Onboard LED indicator lights, with each relay corresponding to an independent status display.
The surface is coated with a three proof paint, which is moisture-proof, dustproof, and corrosion-resistant.
Using fiberglass PCB substrate, it has high mechanical strength and is not easily deformed.
The relay adopts a sealed structure and is suitable for workshop environments with dust or moisture.
The input interface adopts anti plug reverse design, making installation and maintenance less prone to errors.
The board is printed with model and number silk screen printing for easy traceability and quick identification.
Compact in size, weighing approximately 1.2kg, making it easy to install inside the cabinet.
701-1264F can provide repair and replacement services, compatible with discontinued models.
ending
Summary: This model (701-1264F) relay board has high reliability and strong driving capability, and is suitable for load control scenarios of BOBST equipment. Pay attention to power-off operation when using, and confirm that the load current does not exceed the rated value of the contacts.

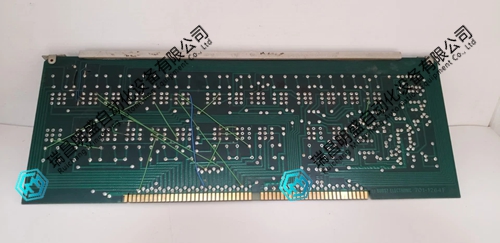

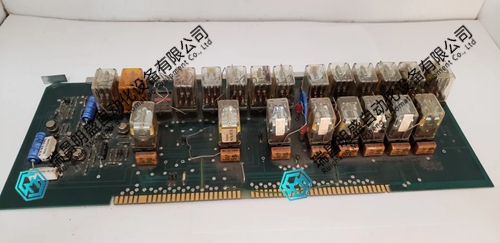

BOBST 701-1264F继电器板 产品展示
