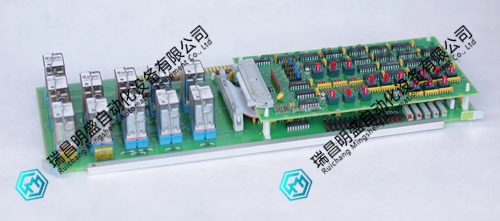

BOBST 0701217602 接口控制板 PDF资料
1.产 品 资 料 介 绍：
BOBST 0701217602 接口控制板用于设备内部信号转接与逻辑控制，保障各模块间通讯稳定。
中间15条
原厂设计，与 BOBST 设备总线协议完全兼容。
采用工业级元器件，适应长时间连续运行。
0701217602 负责多路 I/O 信号的集中处理与转发。
板载标准接口插座，与排线或背板直连，安装便捷。
具备信号隔离功能，减少外部电磁干扰对核心逻辑的影响。
工作温度范围宽，能适应印刷包装车间的高温或粉尘环境。
表面涂有三防漆，具备防潮、防尘、防腐蚀能力。
板面带 LED 状态指示灯，可直观判断电源通断与信号状态。
采用多层 PCB 设计，优化走线布局，提升信号完整性。
支持数字量与模拟量信号的混合接入，适配多种传感器与执行器。
内置滤波电路，抑制电源纹波，保证信号传输的纯净度。
接口采用防插反设计，降低现场安装时的误操作风险。
元器件布局紧凑，在有限的板面空间内集成较多功能。
焊点采用自动化 SMT 工艺，连接可靠，抗振动性能好。
板面通常印有版本号与测试点，便于后期维修与故障排查。
结尾
总结：本型号（0701217602）接口控制板兼具信号处理与逻辑控制功能，兼容性好。现场操作时建议先断电，并核对接口方向以免损坏。
The BOBST 0701217602 interface control board is used for internal signal conversion and logic control of equipment, ensuring stable communication between modules.
15 in the middle
Original factory design, fully compatible with BOBST device bus protocol.
Adopting industrial grade components to adapt to long-term continuous operation.
0701217602 is responsible for centralized processing and forwarding of multiple I/O signals.
Onboard standard interface socket, directly connected to cable or backplane, easy to install.
Equipped with signal isolation function to reduce the impact of external electromagnetic interference on the core logic.
Wide working temperature range, able to adapt to high temperature or dust environment in printing and packaging workshops.
The surface is coated with three proof paint, which has the ability to prevent moisture, dust, and corrosion.
The board is equipped with LED status indicator lights, which can intuitively determine the power on/off and signal status.
Adopting multi-layer PCB design, optimizing wiring layout, and improving signal integrity.
Support mixed access of digital and analog signals, compatible with multiple sensors and actuators.
Built in filtering circuit to suppress power ripple and ensure the purity of signal transmission.
The interface adopts anti plug reverse design to reduce the risk of misoperation during on-site installation.
The component layout is compact, integrating multiple functions within a limited board space.
The solder joints adopt automated SMT technology, which ensures reliable connection and good vibration resistance.
The board surface is usually printed with version numbers and test points for easy maintenance and troubleshooting in the future.
ending
Summary: This model (0701217602) interface control board combines signal processing and logic control functions, with good compatibility. It is recommended to cut off the power first and check the direction of the interface to avoid damage during on-site operation.
