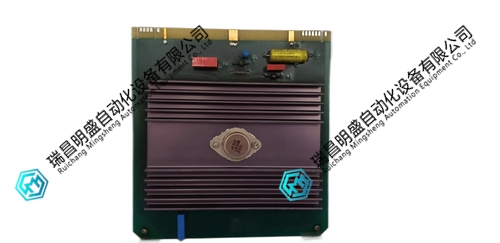

BOBST 701-1528-01 电源板 PDF资料
1.产 品 资 料 介 绍：
BOBST 701-1528-01 电源板专为BOBST系列工业设备设计，负责将外部输入电源转换为内部电路所需的稳定直流电压，具备高可靠性、良好的电气保护及工业级环境适应性，其主要特点如下：
中间（15条）
专机适配设计：专为BOBST印刷机、模切机或糊盒机等设备定制，硬件接口与原系统严格匹配。
多种电压输出：通常同时输出+5V、+15V、+24V等多组电压，满足控制板与I/O模块需求。
紧凑板载结构：采用板载式设计，直接安装在设备控制柜内，节省空间。
开关电源拓扑：多采用PWM开关电源技术，转换效率高，发热量低。
宽输入电压范围：适应不同地区工业电网的电压波动，通常支持85V-264V AC输入。
金手指硬连接：常通过金手指或大电流排针与主板连接，插拔稳固，接触电阻小。
输出滤波网络：输出端配置大容量电解电容与陶瓷电容，有效滤除纹波噪声。
过压保护（OVP）：内置输出过压钳位电路，防止电压异常升高损坏后级负载。
过流与短路保护：输出端具备自恢复或保险丝式过流保护，防止外部短路烧毁板卡。
输入浪涌抑制：输入端压敏电阻与保险管设计，可吸收电网尖峰电压。
工业级宽温元件：选用耐高温电解电容与功率MOSFET，适应印刷车间高温环境。
PCB三防涂层：板面喷涂防潮、防尘、防化学腐蚀的三防漆，保护线路免受侵蚀。
状态指示明确：板载LED电源指示灯，直观显示输入输出是否正常。
散热结构优化：大功率元件通常布置在边缘，配合散热孔或外接散热片设计。
可维护性强：丝印清晰标注各测试点电压值，便于现场检测与故障排查。
结尾（总结收束）
总之，BOBST 701-1528-01 是一款输出稳定、保护机制完善的工业电源板，为BOBST设备控制系统的正常运行提供基础电力保障。
The BOBST 701-1528-01 power board is designed specifically for the BOBST series industrial equipment, responsible for converting external input power into stable DC voltage required by internal circuits. It has high reliability, good electrical protection, and industrial grade environmental adaptability. Its main features are as follows:
Middle (15 items)
Special machine adaptation design: customized for equipment such as BOBST printing machines, die-cutting machines, or box pasting machines, with hardware interfaces strictly matched with the original system.
Multiple voltage outputs: usually simultaneously outputting multiple sets of voltages such as+5V,+15V,+24V, etc., to meet the requirements of the control board and I/O module.
Compact onboard structure: adopting onboard design, directly installed in the equipment control cabinet, saving space.
Switching power supply topology: PWM switching power supply technology is commonly used, with high conversion efficiency and low heat generation.
Wide input voltage range: Suitable for voltage fluctuations in industrial power grids in different regions, usually supporting 85V-264V AC input.
Gold finger hard connection: often connected to the motherboard through gold fingers or high current pins, with stable insertion and removal and low contact resistance.
Output filtering network: The output end is equipped with large capacity electrolytic capacitors and ceramic capacitors to effectively filter out ripple noise.
Overvoltage Protection (OVP): Built in output overvoltage clamp circuit to prevent abnormal voltage rise from damaging the secondary load.
Overcurrent and short circuit protection: The output terminal has self recovery or fuse type overcurrent protection to prevent external short circuits from burning out the board.
Input surge suppression: The input end is designed with varistors and fuses, which can absorb the peak voltage of the power grid.
Industrial grade wide temperature components: High temperature resistant electrolytic capacitors and power MOSFETs are selected to adapt to the high temperature environment in the printing workshop.
PCB Three proof Coating: The board surface is sprayed with moisture-proof, dust-proof, and chemical corrosion-resistant three proof paint to protect the circuit from corrosion.
Clear status indication: The onboard LED power indicator light visually displays whether the input and output are normal.
Optimization of heat dissipation structure: High power components are usually arranged at the edges, designed with heat dissipation holes or external heat dissipation fins.
Strong maintainability: The screen printing clearly marks the voltage values of each test point, making it easy for on-site detection and troubleshooting.
Conclusion (concluding)
In short, BOBST 701-1528-01 is an industrial power board with stable output and complete protection mechanism, providing basic power guarantee for the normal operation of BOBST equipment control system.
