Silicon Graphics 99-80170-0 真空传感器 PCB 板 PDF资料
1.产 品 资 料 介 绍：
Silicon Graphics 99-80170-0 真空传感器 PCB 板是 SGI 高端计算平台中用于环境监测的专用电路板，负责采集机箱或系统内部的真空度数据，保障特定散热或密封环境下的稳定运行。
中间（15条）：
型号 99-80170-0 集成真空传感元件与信号调理电路。
板载精密放大器，用于微弱信号的低噪声放大。
支持模拟电压或数字 I²C 格式输出真空度数据。
99-80170-0 兼容 SGI Origin 或 Onyx 系列特定机箱。
配合中央控制器模块完成环境状态监测与报警。
该型号具备温度补偿功能，减少环境温漂影响。
99-80170-0 采用四层 PCB 设计，降低信号串扰。
板载保护电路，防止静电与瞬态过压损坏。
型号 99-80170-0 通过专用排线连接系统管理总线。
工作电压通常为 5V 或 3.3V 直流供电。
传感元件响应时间快速，适用于实时监测场景。
99-80170-0 适用于需要气压监测的特殊密封机型。
板载测试点，便于工程人员现场校准与诊断。
该型号在 SGI 真空散热系统中起到关键反馈作用。
99-80170-0 目前已停产，多见于旧型号维护场景。
结尾：
综上，Silicon Graphics 99-80170-0 真空传感器 PCB 板通过精密的信号采集与调理能力，为 SGI 特殊环境下的系统稳定运行提供了重要保障。
Silicon Graphics 99-80170-0 真空传感器 PCB 板 英文介绍
The Silicon Graphics 99-80170-0 vacuum sensor PCB board is a specialized circuit board used for environmental monitoring in SGI's high-end computing platform. It is responsible for collecting vacuum degree data inside the chassis or system to ensure stable operation in specific heat dissipation or sealed environments.
Middle (15 items):
Model 99-80170-0 integrates vacuum sensing components and signal conditioning circuits.
Onboard precision amplifier, used for low-noise amplification of weak signals.
Supports outputting vacuum degree data in analog voltage or digital I ² C format.
99-80170-0 is compatible with SGI Origin or Onyx series specific chassis.
Cooperate with the central controller module to complete environmental status monitoring and alarm.
This model has temperature compensation function to reduce the impact of environmental temperature drift.
99-80170-0 adopts a four layer PCB design to reduce signal crosstalk.
Onboard protection circuit to prevent damage from static electricity and transient overvoltage.
Model 99-80170-0 is connected to the system management bus through a dedicated ribbon cable.
The working voltage is usually 5V or 3.3V DC power supply.
The sensing element has a fast response time and is suitable for real-time monitoring scenarios.
99-80170-0 is suitable for special sealing models that require air pressure monitoring.
Onboard testing points facilitate on-site calibration and diagnosis by engineering personnel.
This model plays a critical feedback role in the SGI vacuum cooling system.
99-80170-0 is currently discontinued and is commonly used in maintenance scenarios for old models.
ending:
In summary, the Silicon Graphics 99-80170-0 vacuum sensor PCB board provides important guarantees for the stable operation of SGI systems in special environments through its precise signal acquisition and conditioning capabilities.

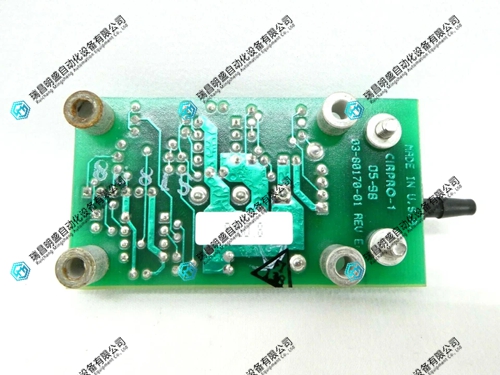

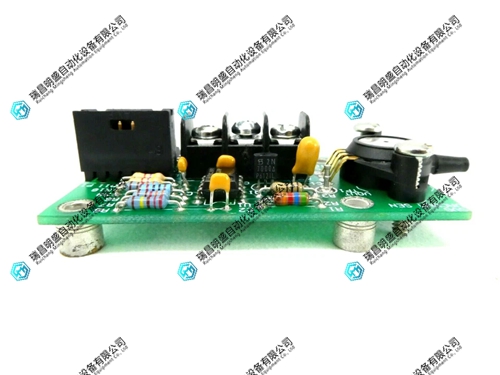

Silicon Graphics 99-80170-0 真空传感器 PCB 板 产品展示
