Silicon Graphics 030-0880-003 处理器模块 PDF资料
1.产 品 资 料 介 绍：
Silicon Graphics 030-0880-003 处理器模块是用于 SGI Origin 2000 系列服务器及 Onyx2 图形工作站的关键计算组件，基于 MIPS 架构设计，承担核心数据处理与多路并行通信任务。
中间（15条）：
该模块属于 SGI Origin 2000 和 Onyx2 系统的可更换处理器板卡。
采用 MIPS 架构处理器，支持 R10000 或 R12000 系列芯片。
单个模块通常包含一枚或两枚处理器，视具体配置而定。
处理器主频覆盖 250 MHz 至 400 MHz 范围。
集成大容量二级缓存，提升数据命中率与处理效率。
模块通过 SGI 专有的 CrayLink 总线与系统其他节点互联。
支持多达 128 个处理器的大规模 cc-NUMA 非一致内存访问架构。
板载本地内存控制器，可直连专用内存扩展板。
配合 I/O 模块共同完成与外设的数据交换。
模块配备散热背板与导流罩，适配 Origin 机箱风道设计。
支持热插拔维护，可在线更换而不中断系统其他部分。
工作状态由面板指示灯指示，方便现场诊断。
与 IRIX 操作系统深度优化，实现进程与内存负载均衡。
该型号已停产多年，目前仅见于二手或存量维护市场。
是 SGI 高端高性能计算与可视化产品线的代表性硬件之一。
结尾：
综上，Silicon Graphics 030-0880-003 处理器模块凭借 MIPS 多处理能力和 cc-NUMA 架构，成为 Origin 2000 和 Onyx2 系统实现大规模并行计算的核心基石。
Silicon Graphics 030-0880-003 处理器模块 英文介绍
The Silicon Graphics 030-0880-003 processor module is a key computing component used for SGI Origin 2000 series servers and Onyx2 graphics workstations. It is designed based on the MIPS architecture and is responsible for core data processing and multi-channel parallel communication tasks.
Middle (15 items):
This module belongs to the replaceable processor board of SGI Origin 2000 and Onyx2 systems.
Adopting MIPS architecture processor, supporting R10000 or R12000 series chips.
A single module typically contains one or two processors, depending on the specific configuration.
The processor clock frequency covers the range of 250 MHz to 400 MHz.
Integrate large capacity secondary cache to improve data hit rate and processing efficiency.
The module is interconnected with other nodes in the system through SGI's proprietary CrayLink bus.
Supports large-scale cc-NUMA non-uniform memory access architecture with up to 128 processors.
Onboard local memory controller that can be directly connected to dedicated memory expansion boards.
Collaborate with I/O modules to complete data exchange with peripherals.
The module is equipped with a heat dissipation backplate and a guide cover, which is compatible with the Origin chassis air duct design.
Support hot swappable maintenance, can be replaced online without interrupting other parts of the system.
The working status is indicated by panel indicator lights for easy on-site diagnosis.
Deeply optimized with IRIX operating system to achieve process and memory load balancing.
This model has been discontinued for many years and is currently only available in the second-hand or stock maintenance market.
It is one of the representative hardware components of SGI's high-end high-performance computing and visualization product line.
ending:
In summary, the Silicon Graphics 030-0880-003 processor module, with its MIPS multi processing capability and cc UMA architecture, has become the core cornerstone for implementing large-scale parallel computing in Origin 2000 and Onyx2 systems.

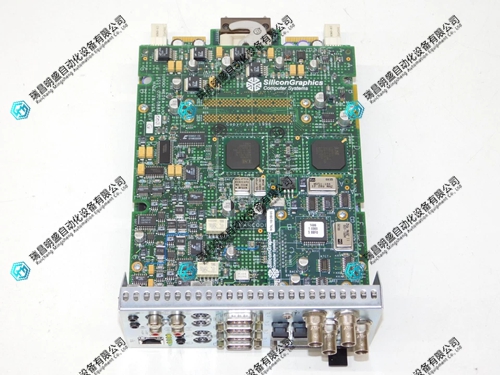

Silicon Graphics 030-0880-003 处理器模块 产品展示
