Silicon Graphics SLWSTK6020A 通信模块 PDF资料
1.产 品 资 料 介 绍：
核心采用 EFR32BG Blue Gecko 无线 SoC，集成 ARM Cortex-M4 内核与 2.4 GHz 射频收发器。
支持 Bluetooth Smart 4.x 低功耗蓝牙协议，适用于信标、传感器及简单物联网设备。
套件包含主板 BRD4001A 与无线板 BRD4100A，两者配合完成开发与测试。
板载 J-Link 调试器，通过 USB 接口即可实现程序下载与在线硬件调试。
集成高级功耗监测器，可实时测量电压与电流，辅助低功耗代码优化。
提供虚拟串口功能，方便开发板与计算机之间的串行数据通信。
配备数据包追踪接口，用于抓取与分析蓝牙空中数据包。
待机模式下电流低于 10 µA，适合电池供电的便携式设备。
工作于 2.4 GHz 频段，最大发射功率达 10.5 dBm。
主板上自带多个传感器与可编程按键，可直接演示 SoC 外设与低功耗特性。
套件附带 CR2032 锂电池与 USB Mini-B 线缆，开箱即用。
官方提供 Simplicity Studio 开发环境，支持代码配置、编译与能耗分析工具。
包含多种蓝牙示例程序，如广播模式和信标模式，缩短入门时间。
调试接口可连接外部目标板，将调试、虚拟串口与功耗监测功能用于外部电路。
该型号已停产，后续替代型号为 SLWSTK6020B 或更新的 EFR32BG 系列套件。
结尾：
综上，Silicon Labs SLWSTK6020A 通信模块曾是一个集成调试、功耗分析和蓝牙协议验证的一站式平台。当前选用时需注意其停产状态，建议评估新版套件作为替代。
Silicon Graphics SLWSTK6020A 通信模块 英文介绍
The core adopts EFR32BG Blue Gecko wireless SoC, which integrates ARM Cortex-M4 core and 2.4 GHz RF transceiver.
Supports Bluetooth Smart 4. x low-power Bluetooth protocol, suitable for beacons, sensors, and simple IoT devices.
The kit includes a motherboard BRD4001A and a wireless board BRD4100A, which work together to complete development and testing.
Onboard J-Link debugger, program download and online hardware debugging can be achieved through USB interface.
Integrated advanced power consumption monitor, capable of real-time measurement of voltage and current, assisting in low-power code optimization.
Provide virtual serial port functionality to facilitate serial data communication between the development board and the computer.
Equipped with a packet tracking interface for capturing and analyzing Bluetooth air packets.
In standby mode, the current is below 10 µ A, suitable for portable devices powered by batteries.
Operating in the 2.4 GHz frequency band, with a maximum transmission power of 10.5 dBm.
The motherboard comes with multiple sensors and programmable buttons, which can directly demonstrate SoC peripherals and low-power characteristics.
The kit comes with a CR2032 lithium battery and USB Mini-B cable, ready to use out of the box.
The official provides the Simplicity Studio development environment, which supports code configuration, compilation, and energy consumption analysis tools.
Contains multiple Bluetooth example programs, such as broadcast mode and beacon mode, to shorten the entry time.
The debugging interface can be connected to an external target board, and the debugging, virtual serial port, and power monitoring functions can be used for external circuits.
This model has been discontinued and will be replaced by SLWSTK6020B or the updated EFR32BG series kit.
ending:
In summary, the Silicon Labs SLWSTK6020A communication module was once a one-stop platform for integrated debugging, power analysis, and Bluetooth protocol verification. When selecting, attention should be paid to its discontinuation status, and it is recommended to evaluate the new version of the kit as a substitute.

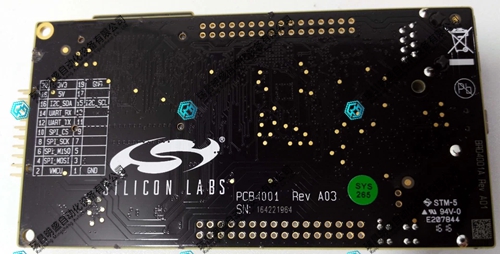

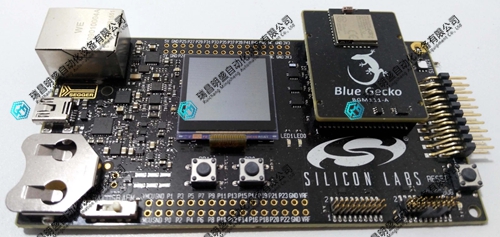

Silicon Graphics SLWSTK6020A 通信模块 产品展示
