IOC4T 200-560-000-018机械保护卡 PDF资料
1.产 品 资 料 介 绍：
IOC4T 200-560-000-018机械保护卡产品特点
IOC4T 200-560-000-018是Vibro-Meter VM600机械保护系统的核心I/O接口卡，与MPC4机械保护卡配对使用，安装于机架后部实现传感器信号与处理卡间的可靠传输。其核心特点如下：
专为VM600机械保护系统设计，与MPC4或MPC4SIL卡无缝配对。
支持4个动态信号输入通道，用于振动监测。
集成2个转速计通道，可测量设备转速。
配备48针螺钉端子连接器，确保现场接线牢固可靠。
内置4个可编程报警继电器，触点容量250VAC/5A。
提供4路模拟量输出，可通过跳线选择0-10V或4-20mA。
具备32个可编程开集极数字量输出，便于驱动外部继电器扩展。
所有输入输出均具备电磁干扰保护，符合EMC标准。
支持热插拔功能，可在系统运行时更换维护。
工作温度范围-25℃至+65℃，适应恶劣工业环境。
可独立配置每个通道的参数，适应不同传感器类型。
提供缓冲的原始振动信号输出，便于故障诊断。
输出精度≤±1.5%，线性误差≤±0.5%。
尺寸小巧（6U×20mm×125mm），重量仅约0.25kg。
适用于发电、石油化工、冶金等行业的关键旋转机械保护。
综上所述，IOC4T 200-560-000-018凭借多通道输入、灵活输出配置及全面的抗干扰设计，是VM600机械保护系统中可靠高效的信号接口解决方案。
IOC4T 200-560-000-018机械保护卡 英文介绍
IOC4T 200-560-000-018 Mechanical Protection Card Product Features
IOC4T 200-560-000-018 is the core I/O interface card of Vibro Meter VM600 mechanical protection system, which is paired with MPC4 mechanical protection card and installed at the rear of the rack to achieve reliable transmission between sensor signals and processing cards. Its core features are as follows:
Specially designed for VM600 mechanical protection system, seamlessly paired with MPC4 or MPC4SIL cards.
Supports 4 dynamic signal input channels for vibration monitoring.
Integrate 2 tachometer channels to measure device speed.
Equipped with a 48 pin screw terminal connector to ensure secure and reliable on-site wiring.
Built in 4 programmable alarm relays with a contact capacity of 250VAC/5A.
Provide 4 analog outputs, which can be selected from 0-10V or 4-20mA through jumper wires.
Equipped with 32 programmable open collector digital outputs, making it easy to drive external relay extensions.
All inputs and outputs are equipped with electromagnetic interference protection and comply with EMC standards.
Support hot swappable function, which can be replaced and maintained during system operation.
The working temperature range is -25 ℃ to+65 ℃, suitable for harsh industrial environments.
Parameters of each channel can be configured independently to adapt to different sensor types.
Provide buffered raw vibration signal output for easy fault diagnosis.
The output accuracy is ≤± 1.5%, and the linear error is ≤± 0.5%.
Compact in size (6U x 20mm x 125mm), weighing only about 0.25kg.
Suitable for protecting key rotating machinery in industries such as power generation, petrochemicals, and metallurgy.
In summary, IOC4T 200-560-000-018 is a reliable and efficient signal interface solution for VM600 mechanical protection systems, thanks to its multi-channel input, flexible output configuration, and comprehensive anti-interference design.

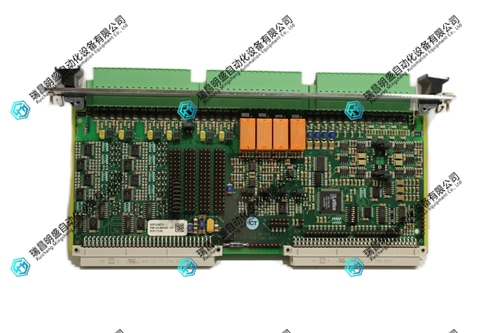

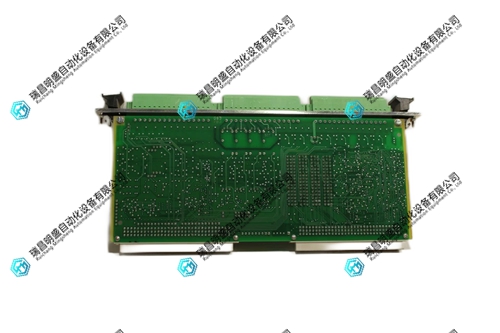

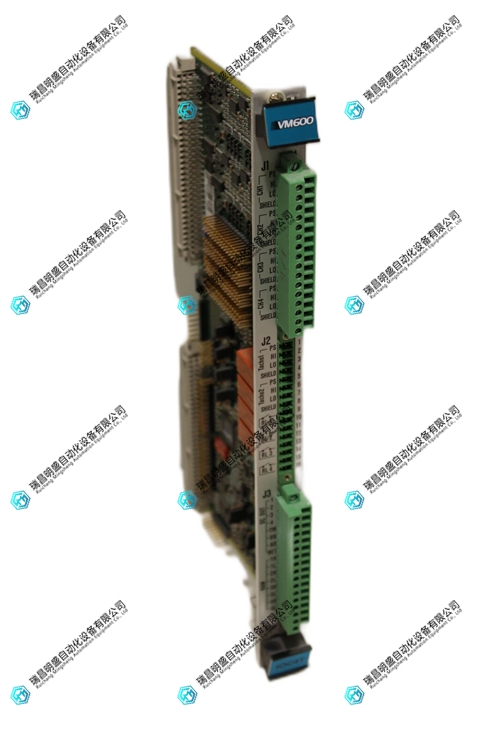

IOC4T 200-560-000-018机械保护卡 产品展示
