086345-504模拟量电源板模块 PDF资料
1.产 品 资 料 介 绍：
ABB 086345-504 是一款模拟量电源板模块，为 PLC/DCS 系统提供稳定的电源供应与模拟量信号处理能力。
产品特点（15条）：
086345-504 输入电压范围 85-264V AC 或 120-370V DC
输出电压 24V DC ±0.5%，输出电流 10A
整机效率高达 92% 以上，降低能耗和发热量
内置过载、过压、短路、过温多重保护机制
纹波与噪声 ≤50mVpp，输出稳定纯净
工作温度范围 -25°C 至 70°C，适应恶劣环境
防护等级 IP20，适合安装在控制柜内
平均无故障时间（MTBF）达 75 万小时，可靠性高
支持 0-20mA、4-20mA、0-10V 等多种模拟量信号类型
分辨率 16 位，精度 ±0.1%，数据采集准确
采样时间约 2 ms/通道，响应速度快
电气隔离 500V AC，抗干扰能力强
前面板配有 LED 状态指示灯（运行/故障）
支持 DIN 导轨安装，插入式设计便于维护
ABB 086345-504 尺寸约 90×175×120 mm，结构紧凑
结尾：综上所述，ABB 086345-504 凭借宽压输入、10A 大电流输出、16 位高精度及高可靠性，是 PLC/DCS 系统中电源供应与信号采集的理想选择。
086345-504模拟量电源板模块 英文介绍
ABB 086345-504 is an analog power board module that provides stable power supply and analog signal processing capabilities for PLC/DCS systems.
Product features (15 items):
086345-504 Input voltage range 85-264V AC or 120-370V DC
Output voltage 24V DC ± 0.5%, output current 10A
The overall efficiency of the machine is over 92%, reducing energy consumption and heat generation
Built in multiple protection mechanisms for overload, overvoltage, short circuit, and overheating
Ripple and noise ≤ 50mVpp, stable and pure output
Working temperature range -25 ° C to 70 ° C, suitable for harsh environments
Protection level IP20, suitable for installation inside control cabinets
The mean time between failures (MTBF) reaches 750000 hours, indicating high reliability
Supports multiple analog signal types such as 0-20mA, 4-20mA, 0-10V, etc
Resolution 16 bits, accuracy ± 0.1%, accurate data acquisition
Sampling time of about 2 ms/channel, fast response speed
Electrical isolation 500V AC, strong anti-interference ability
The front panel is equipped with LED status indicator lights (running/faulty)
Support DIN rail installation, plug-in design for easy maintenance
ABB 086345-504 has dimensions of approximately 90 × 175 × 120 mm and a compact structure
Conclusion: In summary, ABB 086345-504 is an ideal choice for power supply and signal acquisition in PLC/DCS systems due to its wide voltage input, 10A high current output, 16 bit high precision, and high reliability.

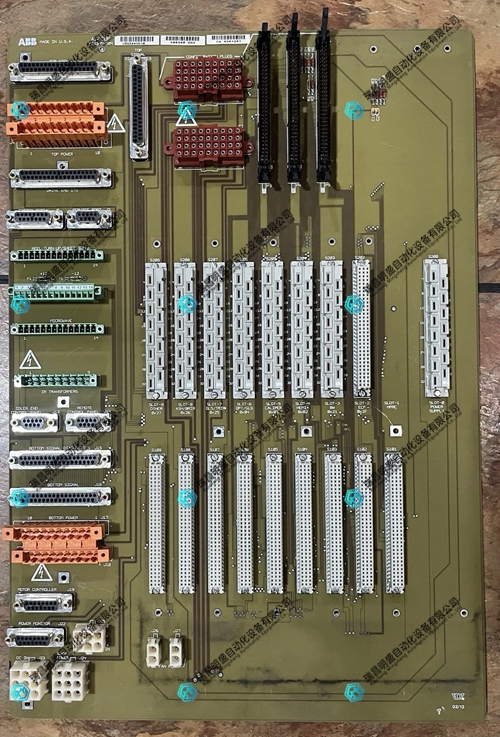

086345-504模拟量电源板模块 产品展示
