Silicon ADS512101 嵌入式开发主板 PDF资料
1.产 品 资 料 介 绍：
Silicon Graphics ADS512101 是一款基于飞思卡尔MPC5121e处理器的mini-ITX嵌入式开发主板，为嵌入式系统设计提供完整的参考平台。
采用mini-ITX标准板型（170mm x 170mm）
Silicon Graphics ADS512101 搭载飞思卡尔MPC5121e处理器（e300c4核心，400MHz）
板载DDR2 SDRAM，容量支持256MB至2GB
Silicon Graphics ADS512101 配备64MB NOR FLASH和1GB NAND FLASH
提供2路4线RS232串口和2路CAN总线接口
支持USB 2.0（含Host、Device和OTG）
Silicon Graphics ADS512101 集成10/100M以太网控制器
板载AC97音频编解码，支持音频输入/输出/麦克风
支持SATA和PATA（IDE）硬盘接口
提供PCI和mini-PCI扩展插槽
Silicon Graphics ADS512101 支持Micro-SD卡存储
支持24bpp真彩色图形输出（LVDS或CMOS）
电源支持标准ATX或5V直流供电
工作温度：标准版0至70℃，工业版-40至85℃
Silicon Graphics ADS512101 符合RoHS环保规范
Silicon Graphics ADS512101 作为MPC5121e处理器的参考开发平台，为嵌入式系统提供了完整的硬件接口与灵活的扩展能力。
Silicon ADS512101 嵌入式开发主板 英文介绍
Silicon Graphics ADS512101 is a mini ITX embedded development motherboard based on Freescale MPC5121e processor, providing a complete reference platform for embedded system design.
Adopting mini ITX standard board type (170mm x 170mm)
Silicon Graphics ADS512101 is equipped with Freescale MPC5121e processor (e300c4 core, 400MHz)
Onboard DDR2 SDRAM, with a capacity supporting 256MB to 2GB
Silicon Graphics ADS512101 is equipped with 64MB NOR FLASH and 1GB NAND FLASH
Provide 2 channels of 4-wire RS232 serial ports and 2 channels of CAN bus interfaces
Supports USB 2.0 (including Host, Device, and OTG)
Silicon Graphics ADS512101 Integrated 10/100M Ethernet Controller
Onboard AC97 audio codec, supporting audio input/output/microphone
Supports SATA and PATA (IDE) hard drive interfaces
Provide PCI and mini PCI expansion slots
Silicon Graphics ADS512101 supports Micro SD card storage
Supports 24bpp true color graphics output (LVDS or CMOS)
Power supply supports standard ATX or 5V DC power supply
Working temperature: Standard version 0 to 70 ℃, Industrial version -40 to 85 ℃
Silicon Graphics ADS512101 complies with RoHS environmental regulations
The Silicon Graphics ADS512101 serves as a reference development platform for the MPC5121e processor, providing a complete hardware interface and flexible scalability for embedded systems.

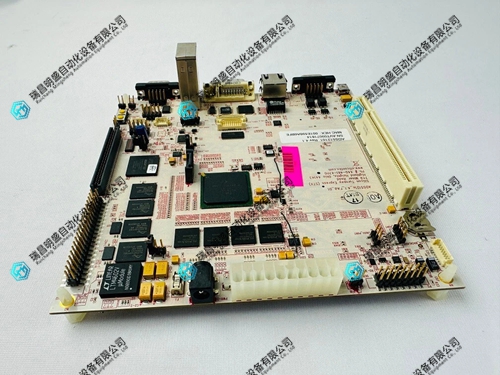

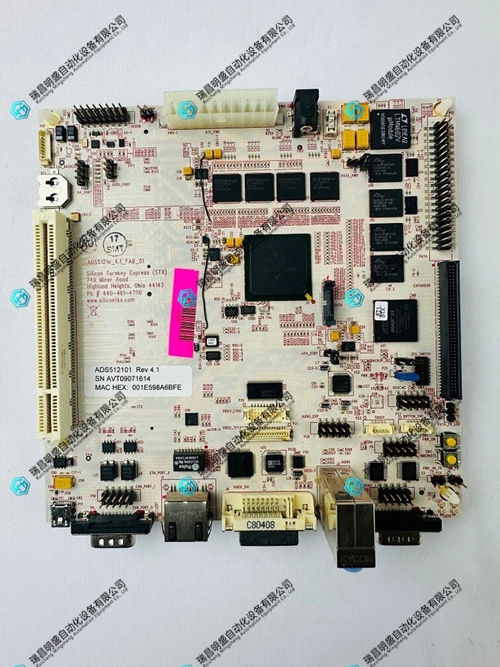

Silicon ADS512101 嵌入式开发主板 产品展示
