Honeywell CC-SDOR01继电器扩展模块 PDF资料
1.产 品 资 料 介 绍：
Honeywell CC-SDOR01 是霍尼韦尔（Honeywell）Experion C300 控制系统中的数字量输出继电器扩展模块，用于扩展系统的继电器输出通道，实现对现场开关设备的控制。
专为霍尼韦尔 Experion C300 控制系统设计。
提供8个继电器输出通道，每通道带独立公共端。
每个继电器输出容量为 240VAC/30VDC，2A。
支持常开（NO）和常闭（NC）两种触点形式。
采用光耦隔离，增强抗干扰能力。
通过背板总线与主控制器通信，即插即用。
支持热插拔，更换模块无需断电停机。
工作电压 24VDC，由背板统一供电。
工作温度范围 -20℃ 至 +60℃。
前面板带 LED 状态指示灯，每通道独立显示。
防护等级 IP20，适用于标准机柜安装。
金属外壳，抗电磁干扰能力强。
采用可插拔端子，现场接线方便快捷。
适用于石化、电力、制药等过程控制领域。
可作为老旧系统的继电器输出模块升级替换。
综上所述，Honeywell CC-SDOR01 继电器扩展模块具备8路独立继电器输出、热插拔支持和 LED 状态显示，为 Experion C300 系统提供了可靠灵活的数字量输出扩展能力。
Honeywell CC-SDOR01继电器扩展模块 英文介绍
Honeywell CC-SDOR01 is a digital output relay expansion module in the Honeywell Expert C300 control system, used to expand the relay output channels of the system and achieve control of on-site switchgear.
Specially designed for the Honeywell Expert C300 control system.
Provide 8 relay output channels, each with an independent common terminal.
Each relay has an output capacity of 240VAC/30VDC, 2A.
Supports two types of contact forms: normally open (NO) and normally closed (NC).
Adopting optocoupler isolation to enhance anti-interference capability.
Communicate with the main controller through the backplane bus, plug and play.
Support hot swapping, module replacement does not require power outage or shutdown.
The working voltage is 24VDC, and it is uniformly powered by the backplane.
The working temperature range is -20 ℃ to+60 ℃.
The front panel is equipped with LED status indicator lights, which display independently for each channel.
Protection level IP20, suitable for standard cabinet installation.
Metal casing with strong resistance to electromagnetic interference.
Adopting pluggable terminals, on-site wiring is convenient and fast.
Suitable for process control fields such as petrochemicals, electricity, pharmaceuticals, etc.
Can be used as an upgrade and replacement for relay output modules in old systems.
In summary, the Honeywell CC-SDOR01 relay expansion module has 8 independent relay outputs, hot swappable support, and LED status display, providing reliable and flexible digital output expansion capabilities for the Expert C300 system.

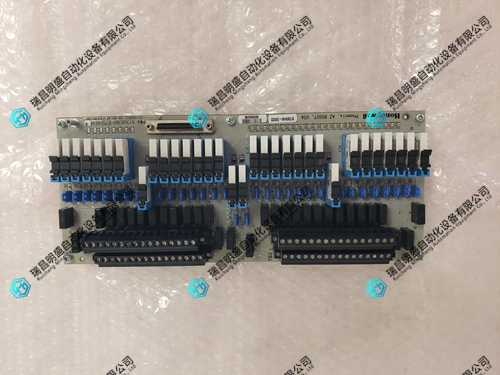

Honeywell CC-SDOR01继电器扩展模块 产品展示
