DEIF SCM-2 1044220110E 印刷电路板 PDF资料
1.产 品 资 料 介 绍：
DEIF SCM-2 1044220110E 是 DEIF 集团生产的用于多用途发电机控制器（如 Multi-line 2 系列）的专用通信和 I/O 扩展印刷电路板，用于增强控制器的接口能力。
专为 DEIF Multi-line 2 系列发电机控制器设计。
作为通信扩展板，可增加额外的串行通讯端口。
支持 Modbus RTU 通讯协议。
提供额外的数字量输入输出通道。
通过控制器背板总线连接，即插即用。
工作电压 5V DC（由控制器背板供电）。
工作温度范围 -25℃ 至 +70℃。
符合 CE 电磁兼容标准。
适用于船舶、石油、天然气等发电机组应用。
采用多层 PCB 设计，抗干扰性能好。
所有接口均带防反插设计。
尺寸为标准小板卡规格（约 100×80 mm）。
可用于扩展老旧系统的通讯能力。
属于 DEIF 原厂正品备件。
安装简单，无需额外配置工具。
综上所述，DEIF SCM-2 1044220110E 印刷电路板作为 Multi-line 2 控制器的扩展板，增加了通讯端口和 I/O 通道，提升了发电机控制系统的灵活性和接口能力。
DEIF SCM-2 1044220110E 印刷电路板 英文介绍
DEIF SCM-2 1044220110E is a dedicated communication and I/O expansion printed circuit board produced by DEIF Group for multi-purpose generator controllers, such as the Multi line 2 series, to enhance the interface capabilities of the controller.
Specially designed for the DEIF Multi line 2 series generator controller.
As a communication expansion board, additional serial communication ports can be added.
Supports Modbus RTU communication protocol.
Provide additional digital input and output channels.
Connected through the controller backplane bus, plug and play.
The working voltage is 5V DC (powered by the controller backplane).
The working temperature range is -25 ℃ to+70 ℃.
Compliant with CE electromagnetic compatibility standards.
Suitable for applications in ship, oil, natural gas and other generator sets.
Adopting multi-layer PCB design, it has good anti-interference performance.
All interfaces come with anti reverse plug design.
The size is the standard small board card specification (approximately 100 × 80 mm).
Can be used to expand the communication capabilities of old systems.
Belongs to genuine spare parts from DEIF factory.
Easy to install, no need for additional configuration tools.
In summary, the DEIF SCM-2 1044220110E printed circuit board serves as an expansion board for the Multi line 2 controller, adding communication ports and I/O channels to enhance the flexibility and interface capabilities of the generator control system.

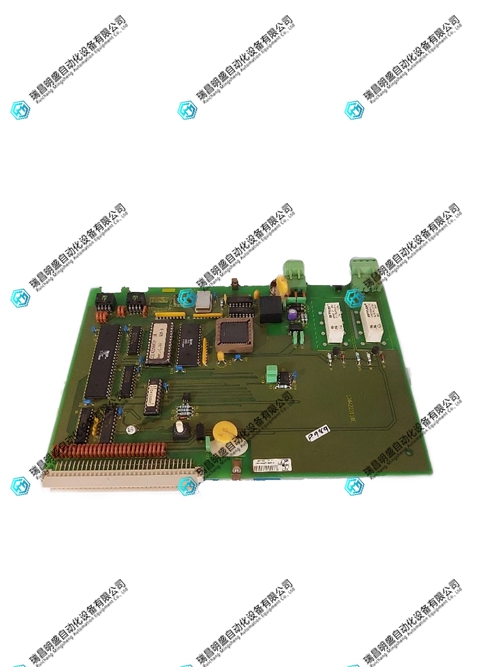

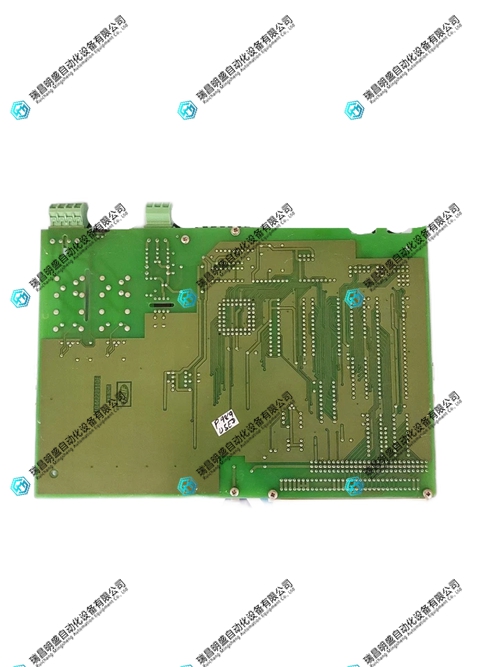

DEIF SCM-2 1044220110E 印刷电路板 产品展示
