SIEMENS WLETU776跳闸装置  PDF资料

1.产 品 资 料 介 绍：

SIEMENS WLETU776是西门子WL系列断路器专用的电子脱扣单元，采用图形化液晶显示屏，为低压配电系统提供精确的过载和短路保护。

1. 提供LSIG四段保护功能：长延时、短延时、瞬时和接地故障保护。

2. 配备图形化LCD显示屏，可实时查看电流、电压、功率等测量数据。

3. 额定电流范围200A至5000A，需配合对应的电流互感器插件使用。

4. 适用于电压600V、3极配置的低压断路器。

5. 符合UL 489和UL 1066标准，通过美国UL认证。

6. 支持Modbus RTU通信协议，可集成至SCADA或DCS系统。

7. 脱扣响应时间可配置，保护曲线通过LCD面板直观设置。

8. 内置事件记录功能，可记录带时间戳的故障波形，便于故障分析。

9. 与WL系列多款框架兼容，包括WLS、WLH、WLL、WLC等型号。

10. 采用电子式固态设计，测量精度高，维护需求低。

11. 前面板配有LED状态指示灯，运行及故障状态一目了然。

12. 可选配PROFINET通信模块，满足工业以太网集成需求。

13. 工作温度范围-25℃至+70℃，适应严苛工业环境。

14. 德国制造，净重约2.2磅（约1公斤）。

15. 支持互换式安装，无需改造断路器本体即可升级或更换。

综上所述，SIEMENS WLETU776电子脱扣单元凭借其LSIG全功能保护、图形化界面及灵活的通信能力，为工业和商业配电系统提供了高精度的智能化保护方案。

SIEMENS WLETU776跳闸装置 英文介绍

SIEMENS WLETU776 is an electronic trip unit specifically designed for Siemens WL series circuit breakers. It uses a graphical LCD display screen to provide precise overload and short circuit protection for low-voltage distribution systems.

Provide four protection functions for LSIG: long delay, short delay, instantaneous, and ground fault protection.

Equipped with a graphical LCD display screen, real-time measurement data such as current, voltage, and power can be viewed.

The rated current range is 200A to 5000A, and it needs to be used in conjunction with the corresponding current transformer plug.

Suitable for low voltage circuit breakers with a voltage of 600V and a 3-pole configuration.

Compliant with UL 489 and UL 1066 standards, certified by UL in the United States.

Supports Modbus RTU communication protocol and can be integrated into SCADA or DCS systems.

The tripping response time can be configured, and the protection curve can be intuitively set through the LCD panel.

Built in event recording function, which can record fault waveforms with timestamps for easy fault analysis.

Compatible with multiple WL series frameworks, including WLS, WLH, WLL, WLC, and other models.

Adopting electronic solid-state design, with high measurement accuracy and low maintenance requirements.

The front panel is equipped with LED status indicator lights, making the operation and fault status clear at a glance.

Optional PROFINET communication module to meet industrial Ethernet integration requirements.

The working temperature range is -25 ℃ to+70 ℃, suitable for harsh industrial environments.

Made in Germany, with a net weight of approximately 2.2 pounds (about 1 kilogram).

Support interchangeable installation, which can be upgraded or replaced without modifying the circuit breaker body.

In summary, the SIEMENS WLETU776 electronic trip unit provides high-precision intelligent protection solutions for industrial and commercial power distribution systems with its LSIG full function protection, graphical interface, and flexible communication capabilities.

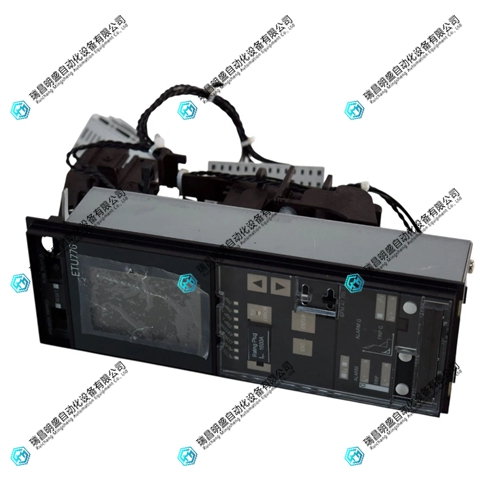

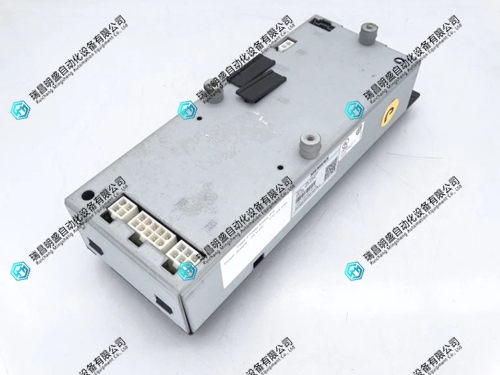

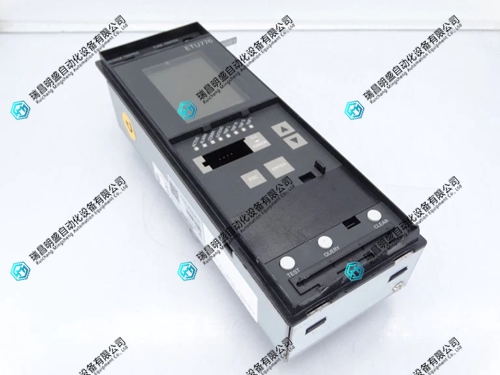

SIEMENS WLETU776跳闸装置 产品展示
