HIMA B9302 997009302 21槽机架 PDF资料
1.产 品 资 料 介 绍：
HIMA B9302 997009302是H51q/EABT3安全系统的21槽I/O子机架套件，采用19英寸4U标准设计，用于集中安装I/O模块并实现SIL 3级安全控制，具备以下15条特点：
HIMA B9302 997009302采用19英寸4U标准机架，尺寸约482.6×177.8×300mm。
配备21个插槽：1-16槽用于I/O模块安装。
第17槽预装F7553通讯耦合模块，负责机架间总线通信。
18-21槽用于F7133电源分配模块，最多可安装4个。
HIMA B9302 997009302供电为24V DC±10%。
配备BV7032扁平电缆连接主控制器，标准长度0.5m或1m。
支持最长30m的总线扩展距离。
HIMA B9302 997009302安全等级达SIL 3（IEC 61508标准）。
集成电缆导管与铰接式标签盒，便于线缆管理及标识。
工作温度范围0℃至60℃，存储温度-40℃至85℃。
HIMA B9302 997009302防护等级IP20，适用于室内电气控制环境。
兼容H41q/H51q系列I/O模块，如F6217、F3DIO等。
适用于ESD紧急停车、BMS燃烧器管理及F&G火气系统等SIS场景。
HIMA B9302 997009302获TÜV、CE、UL等国际安全认证。
产地德国，提供12个月保修期。
结尾：
综上，HIMA B9302 997009302凭借其21槽位扩展能力、SIL 3安全等级及模块化设计，是HIMA安全仪表系统中实现I/O模块集中管理与信号可靠传输的核心组件。
HIMA B9302 997009302 21槽机架 英文介绍
HIMA B9302 997009302 is a 21 slot I/O subrack kit for the H51q/EABT3 safety system, designed with a 19 inch 4U standard for centralized installation of I/O modules and SIL 3 safety control. It has the following 15 features:
HIMA B9302 997009302 adopts a 19 inch 4U standard rack, with dimensions of approximately 482.6 × 177.8 × 300mm.
Equipped with 21 slots: slots 1-16 are used for I/O module installation.
The 17th slot is pre installed with F7553 communication coupling module, responsible for inter rack bus communication.
The 18-21 slots are used for the F7133 power distribution module, and up to 4 can be installed.
HIMA B9302 997009302 is powered by 24V DC ± 10%.
Equipped with BV7032 flat cable to connect the main controller, standard length 0.5m or 1m.
Supports bus extension distance of up to 30m.
HIMA B9302 997009302 has a safety level of SIL 3 (IEC 61508 standard).
Integrated cable conduit and hinged label box for easy cable management and identification.
The working temperature range is 0 ℃ to 60 ℃, and the storage temperature is -40 ℃ to 85 ℃.
HIMA B9302 997009302 has a protection level of IP20 and is suitable for indoor electrical control environments.
Compatible with H41q/H51q series I/O modules such as F6217, F3DIO, etc.
Suitable for SIS scenarios such as ESD emergency shutdown, BMS burner management, and F&G fire and gas systems.
HIMA B9302 997009302 has obtained international safety certifications such as T Ü V, CE, and UL.
Originating from Germany, we offer a 12-month warranty period.
ending:
In summary, HIMA B9302 997009302, with its 21 slot expansion capability, SIL 3 safety level, and modular design, is the core component for centralized management of I/O modules and reliable signal transmission in HIMA safety instrumented systems.

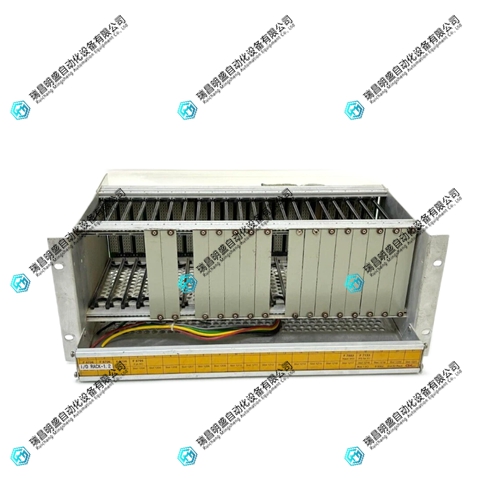

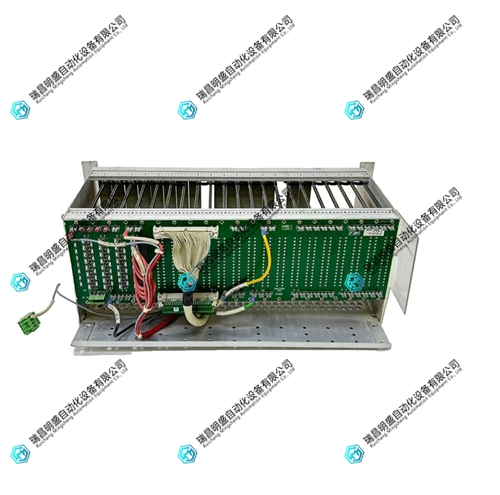

HIMA B9302 997009302 21槽机架 产品展示
