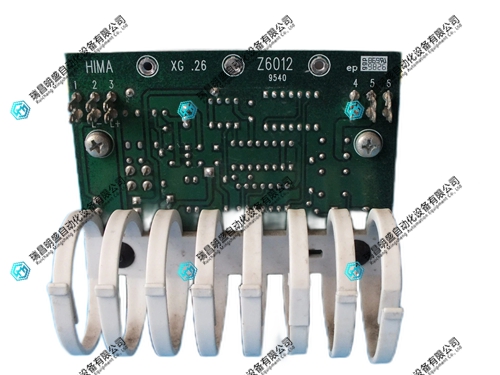

HIMA Z6012 安全远程 I/O 模块 PDF资料
1.产 品 资 料 介 绍：
HIMA Z6012安全远程I/O模块是H41q/H51q安全系统的核心组件，专为工业安全仪表系统设计，具备以下15条特点：
HIMA Z6012采用三重处理器冗余架构，降低单点故障风险。
安全等级达SIL 3（IEC 61508/61511）及Cat.4/PL e（EN ISO 13849-1）。
支持HI-MUX总线、Profibus DP、Modbus等多种通信接口。
HIMA Z6012内置全链路自诊断功能，实时监测硬件及通信状态。
故障安全设计，异常时自动切入安全模式。
供电电压24V DC ±10%，功耗最大5W。
HIMA Z6012工作温度范围-25℃至+60℃，存储温度-40℃至+85℃。
防护等级IP20，适用于DIN导轨安装。
配备保险丝监测功能，可实时检测保险丝状态。

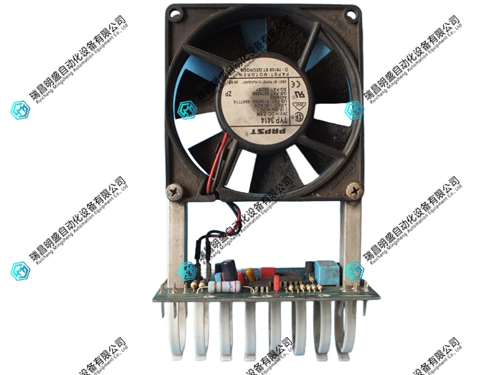

HIMA Z6012集成风扇运行监控，确保系统冷却正常。
报警输出为继电器触点（24V DC，1A）。
保险丝规格为4A T慢断型（5×20mm）。
HIMA Z6012尺寸100×50×80mm，重量0.2kg。
可与Z6011、Z6013等模块协同工作，构建完整电源及散热管理方案。
适用于石油天然气、化工、电力等行业的安全联锁系统。
结尾：
综上，HIMA Z6012安全远程I/O模块凭借其高安全等级、紧凑设计及全面的监控功能，是HIMA安全平台中保障信号采集与控制指令可靠传输的关键组件。
The HIMA Z6012 safety remote I/O module is the core component of the H41q/H51q safety system, designed specifically for industrial safety instrumented systems, and has the following 15 characteristics:
HIMA Z6012 adopts a triple processor redundant architecture to reduce the risk of single point of failure.
The safety level reaches SIL 3 (IEC 61508/61511) and Cat.4/PL e (EN ISO 13849-1).
Supports multiple communication interfaces such as HI-MUX bus, Profibus DP, Modbus, etc.
HIMA Z6012 has built-in full link self diagnostic function, which monitors hardware and communication status in real time.
Fault safe design, automatically switches to safe mode in case of abnormalities.
The power supply voltage is 24V DC ± 10%, and the maximum power consumption is 5W.
The working temperature range of HIMA Z6012 is -25 ℃ to+60 ℃, and the storage temperature is -40 ℃ to+85 ℃.
Protection level IP20, suitable for DIN rail installation.
Equipped with fuse monitoring function, it can detect the status of fuses in real time.
HIMA Z6012 integrates fan operation monitoring to ensure normal system cooling.
The alarm output is a relay contact (24V DC, 1A).
The fuse specification is 4A T slow break type (5 × 20mm).
HIMA Z6012 measures 100 × 50 × 80mm in size and weighs 0.2kg.
Can work together with modules such as Z6011 and Z6013 to build a complete power and heat management solution.
A safety interlock system suitable for industries such as oil and gas, chemical, and power.
ending:
In summary, the HIMA Z6012 safety remote I/O module, with its high safety level, compact design, and comprehensive monitoring functions, is a key component in the HIMA safety platform that ensures reliable transmission of signal acquisition and control commands.
