Modicon CYBERLINE PLS4 DR-PLS4-000 电源模块 PDF资料

1.产 品 资 料 介 绍：

Modicon CYBERLINE PLS4 DR-PLS4-000 电源模块产品特点：

1. 产品系列：Modicon Cyberline伺服系统专用电源模块。

2. 适用驱动：为CL1005、CL1010、CL1020、CL1030驱动器供电。

3. CL1060说明：CL1060组件已内置类似电源，无需额外配备。

4. 母线电压：直流母线电压范围180-325VDC。

5. 回生电路：内置回生调节器，配外装回生电阻。

6. 能量泄放：电机产生回生能量时自动激活泄放电路。

7. 温度监控：监测基板温度，超温时触发保护。

8. 母线监控：实时监测直流母线电压状态。

9. 回生监控：持续监控回生调节器工作状态。

10. 状态指示灯：顶部指示灯显示电源活动和故障信息。

11. 故障保护：检测到故障时自动禁用所有连接的驱动器。

12. 故障指示：驱动器在电源故障时会显示故障状态。

13. 指示灯项：包括回生激活、电压故障、直流母线接通三种状态。

14. 安装方式：安装于CPM安装板上，与驱动器配合使用。

15. 应用场景：为Cyberline伺服系统提供直流母线电源。

综上所述，Modicon CYBERLINE PLS4 DR-PLS4-000 是Cyberline伺服系统的专用电源模块，具备回生能量管理和多重保护功能。

Modicon CYBERLINE PLS4 DR-PLS4-000 电源模块 英文介绍

Modicon CYBERLINE PLS4 DR-PLS4-000 power module product features:

Product series: Modicon Cyberline servo system dedicated power module.

Applicable drivers: Power supply for CL1005, CL1010, CL1020, CL1030 drivers.

CL1060 Description: The CL1060 component already has a built-in power supply, so no additional equipment is required.

Bus voltage: DC bus voltage range 180-325VDC.

Regeneration circuit: Built in regeneration regulator, equipped with external regeneration resistor.

Energy release: When the motor generates regenerative energy, it automatically activates the release circuit.

Temperature monitoring: Monitor the substrate temperature and trigger protection when it exceeds the limit.

Bus monitoring: Real time monitoring of DC bus voltage status.

Regeneration monitoring: Continuously monitor the working status of the regeneration regulator.

Status indicator light: The top indicator light displays power activity and fault information.

Fault protection: Automatically disable all connected drives when a fault is detected.

Fault indication: The drive will display a fault status when there is a power failure.

Indicator light items: including three states: regeneration activation, voltage fault, and DC bus connection.

Installation method: Installed on the CPM installation board and used in conjunction with the driver.

Application scenario: Provide DC bus power supply for Cyberline servo system.

In summary, Modicon CYBERLINE PLS4 DR-PLS4-000 is a dedicated power module for Cyberline servo systems, equipped with regenerative energy management and multiple protection functions.

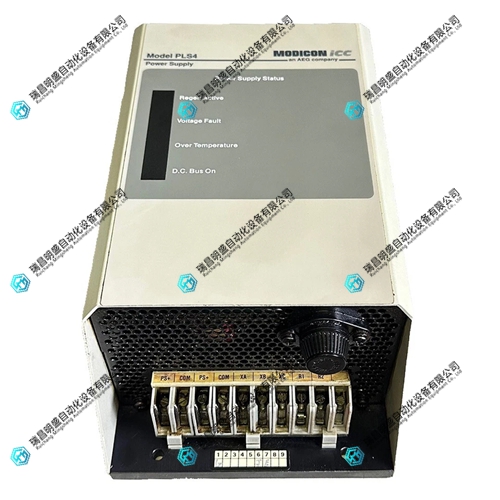

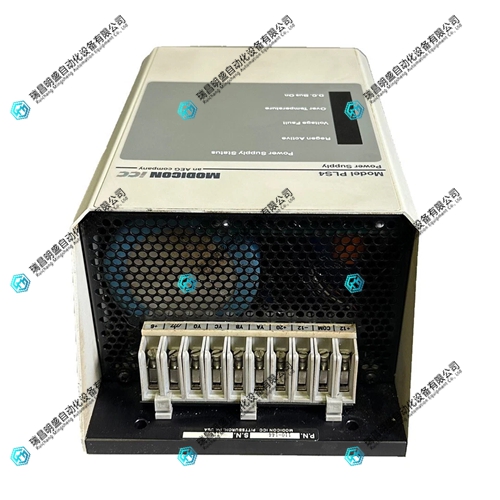

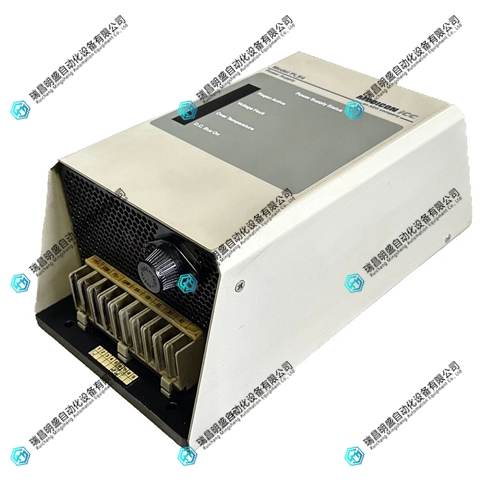

Modicon CYBERLINE PLS4 DR-PLS4-000 电源模块 产品展示
