IC660BBA106输入输出模块 PDF资料
1.产 品 资 料 介 绍：
GE Fanuc IC660BBA106 模拟输入模块产品特点：
产品类型：GE Fanuc Genius I/O系列电流源模拟输入模块。
通道数量：共6个模拟输入通道，通道间相互隔离。
信号范围：支持0-20mA和4-20mA标准电流信号输入。
输入精度：精度为满量程读数的0.1%，测量准确。
输入分辨率：分辨率高达1µA，可精确捕捉微小信号变化。
输入阻抗：输入阻抗100Ω。
转换时间：用户可选的转换时间16.6ms至400ms。
通道隔离：通道间隔离电压高达1500V RMS。
供电电源：标称115VAC或125VDC，工作范围93-132VAC或105-145VDC。
热耗散：最大热耗散12瓦。
工作温度：工作温度范围0℃至+60℃。
状态指示：配备Unit OK和I/O Enabled两个状态LED指示灯。
内置诊断：具备欠量程、超量程、高报警、低报警、开路检测等诊断功能。
无校准设计：无需用户校准即可运行，简化维护。
免机架安装：独立式模块设计，无需机架，直接与总线控制器通信。
综上所述，GE Fanuc IC660BBA106 是一款6通道、高精度、带通道隔离的电流源模拟输入模块，具备完善的诊断功能和灵活的信号采集能力，适用于GE Genius I/O分布式控制系统的模拟量采集应用。
IC660BBA106输入输出模块 英文介绍
GE Fanuc IC660BBA106 Analog Input Module Product Features:
Product type: GE Fanuc Genius I/O series current source analog input module.
Number of channels: There are a total of 6 analog input channels, which are isolated from each other.
Signal range: Supports 0-20mA and 4-20mA standard current signal input.
Input accuracy: The accuracy is 0.1% of the full-scale reading, and the measurement is accurate.
Input resolution: With a resolution of up to 1 µ A, it can accurately capture small signal changes.
Input impedance: Input impedance of 100 Ω.
Conversion time: Users can choose a conversion time of 16.6ms to 400ms.
Channel isolation: The isolation voltage between channels can reach up to 1500V RMS.
Power supply: nominal 115VAC or 125VDC, working range 93-132VAC or 105-145VDC.
Heat dissipation: Maximum heat dissipation of 12 watts.
Working temperature: The working temperature range is 0 ℃ to+60 ℃.
Status indication: Equipped with two status LED indicators, Unit OK and I/O Enabled.
Built in diagnostics: equipped with diagnostic functions such as under range, over range, high alarm, low alarm, and open circuit detection.
Non calibrated design: It can run without user calibration, simplifying maintenance.
Rack free installation: Independent module design, no need for a rack, directly communicates with the bus controller.
In summary, GE Fanuc IC660BBA106 is a 6-channel, high-precision, channel isolated current source analog input module with complete diagnostic functions and flexible signal acquisition capabilities, suitable for analog acquisition applications in GE Genius I/O distributed control systems.

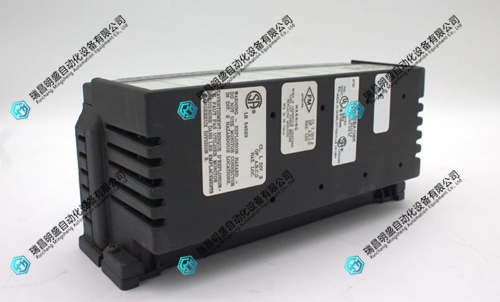

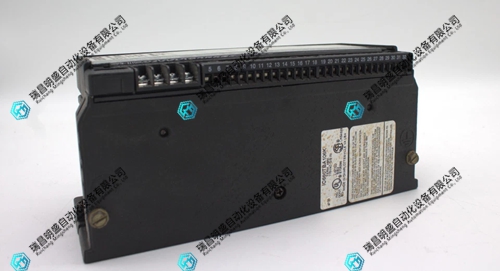

IC660BBA106输入输出模块 产品展示
