YOKOGAWA AAI135-H50/K4A00适配器 PDF资料
1.产 品 资 料 介 绍：
Yokogawa AAI135-H50/K4A00 模拟输入模块产品特点：
通道配置：8个隔离通道，支持4-20mA模拟量输入。
HART通信：支持HART协议，可进行数字通信和设备配置。
通道隔离：通道之间及通道与系统之间均实现500V AC隔离。
输入精度：精度为±16µA。
输入阻抗：通电时290-450Ω，断电时≥500kΩ。
最大输入电流：允许最大输入电流25mA。
数据更新周期：数据更新时间为10ms。
两线制支持：每通道可通过跳线设置二线制或四线制变送器。
变送器供电：变送器供电电压范围为15.0-29.3V。
工作温度：标准型号工作温度范围-10℃至+60℃，G3选项可达-20℃至+70℃。
供电参数：最大电流消耗360mA（5V DC）和450mA（24V DC）。
连接方式：通过KS电缆连接，需配合ATK4A-00接口适配器。
冗余支持：支持双冗余配置（K4A00规格）。
系统兼容：适用于CENTUM VP和CS 3000分布式控制系统。
轻量化设计：模块重量约0.3kg。
综上所述，Yokogawa AAI135-H50/K4A00 是一款8通道、带HART通信的4-20mA模拟输入模块，具备通道隔离和冗余支持功能，适用于CENTUM系列控制系统的模拟信号采集应用。
YOKOGAWA AAI135-H50/K4A00适配器 英文介绍
Yokogawa AAI135-H50/K4A00 Analog Input Module Product Features:
Channel configuration: 8 isolated channels, supporting 4-20mA analog input.
HART communication: Supports the HART protocol for digital communication and device configuration.
Channel isolation: 500V AC isolation is achieved between channels and between channels and the system.
Input accuracy: The accuracy is ± 16 µ A.
Input impedance: 290-450 Ω when powered on, ≥ 500k Ω when powered off.
Maximum input current: The maximum allowable input current is 25mA.
Data update cycle: The data update time is 10ms.
Two wire system support: Two wire or four wire transmitters can be set for each channel through jumper wires.
Transmitter power supply: The voltage range for transmitter power supply is 15.0-29.3V.
Working temperature: The standard model has a working temperature range of -10 ℃ to+60 ℃, while the G3 option can reach -20 ℃ to+70 ℃.
Power supply parameters: maximum current consumption of 360mA (5V DC) and 450mA (24V DC).
Connection method: Connected through KS cable, requiring the use of ATK4A-00 interface adapter.
Redundancy support: Supports dual redundancy configuration (K4A00 specification).
System compatibility: Suitable for CENTUM VP and CS 3000 distributed control systems.
Lightweight design: The module weighs approximately 0.3kg.
In summary, Yokogawa AAI135-H50/K4A00 is an 8-channel 4-20mA analog input module with HART communication, equipped with channel isolation and redundancy support functions, suitable for analog signal acquisition applications in CENTUM series control systems.

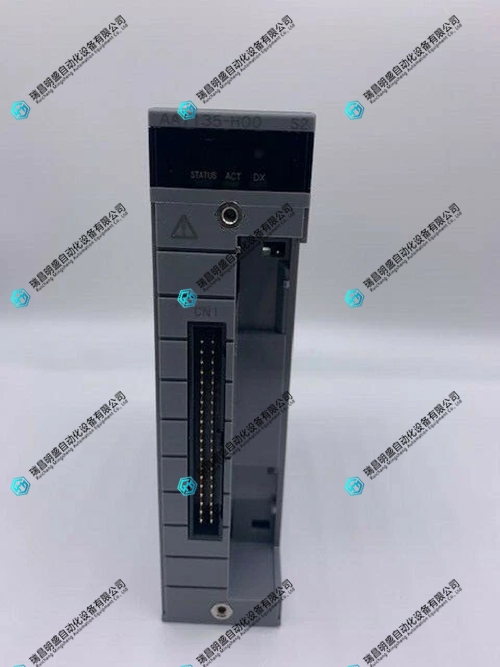

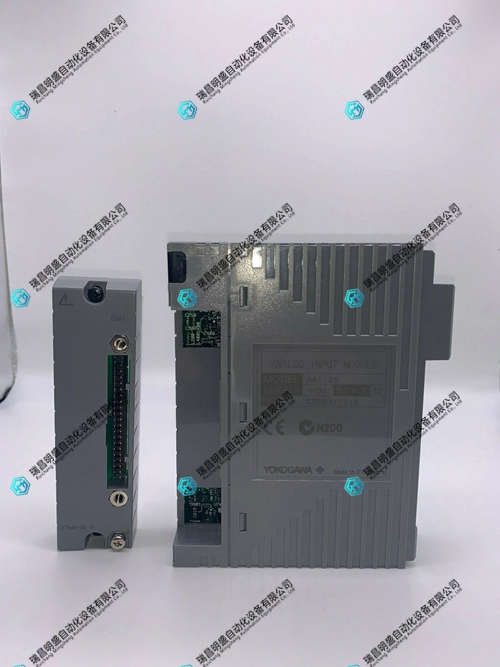

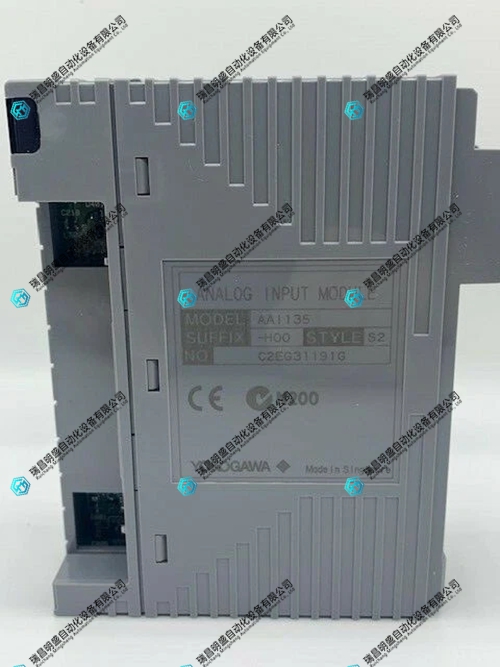

YOKOGAWA AAI135-H50/K4A00适配器 产品展示
