Yokogawa AAI835-H50/K4A00模拟输入/输出模块 PDF资料
1.产 品 资 料 介 绍：
Yokogawa AAI835-H50/K4A00 模拟输入/输出模块产品特点：
通道配置：共8个通道，含4路模拟输入和4路模拟输出。
信号类型：所有通道均支持4-20mA标准电流信号。
HART通信：支持HART协议，可与智能现场设备双向数字通信。
通道隔离：通道之间及通道与系统之间均实现500V AC隔离。
输入精度：输入精度为±16µA，输出精度为±48µA。
输入阻抗：通电时290-450Ω，断电时≥500kΩ。
最大输入电流：允许最大输入电流25mA。
耐压性能：I/O对系统及通道间均能承受500V AC一分钟。
工作温度：工作温度范围-20℃至+70℃。
供电方式：通过基板提供5V DC和24V DC电源。
KS电缆连接：标配ATK4A-00适配器，采用KS电缆连接。
安装方式：支持DIN导轨或面板安装。
轻量化设计：模块重量仅0.2kg。
系统兼容：适用于CENTUM VP和CS 3000分布式控制系统。
紧凑集成：混合型设计减少模块数量，适用于紧凑型I/O空间场景。
综上所述，Yokogawa AAI835-H50/K4A00 是一款集成4路输入和4
Yokogawa AAI835-H50/K4A00模拟输入/输出模块 英文介绍
Yokogawa AAI835-H50/K4A00 Analog Input/Output Module Product Features:
Channel configuration: There are a total of 8 channels, including 4 analog inputs and 4 analog outputs.
Signal type: All channels support 4-20mA standard current signals.
HART communication: Supports the HART protocol and can communicate digitally with smart field devices in both directions.
Channel isolation: 500V AC isolation is achieved between channels and between channels and the system.
Input accuracy: The input accuracy is ± 16 µ A, and the output accuracy is ± 48 µ A.
Input impedance: 290-450 Ω when powered on, ≥ 500k Ω when powered off.
Maximum input current: The maximum allowable input current is 25mA.
Voltage resistance performance: I/O can withstand 500V AC for one minute between the system and channels.
Working temperature: The working temperature range is -20 ℃ to+70 ℃.
Power supply method: 5V DC and 24V DC power are provided through the substrate.
KS cable connection: Standard ATK4A-00 adapter, using KS cable connection.
Installation method: Supports DIN rail or panel installation.
Lightweight design: The module weighs only 0.2kg.
System compatibility: Suitable for CENTUM VP and CS 3000 distributed control systems.
Compact integration: The hybrid design reduces the number of modules and is suitable for compact I/O space scenarios.
In summary, Yokogawa AAI835-H50/K4A00 is an integrated 4-channel input and 4-channel

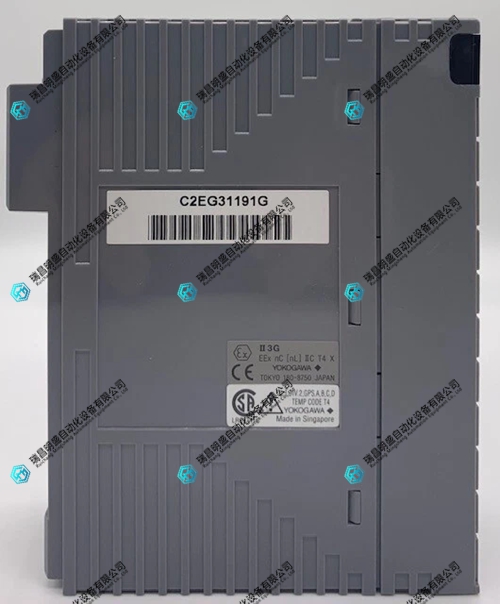

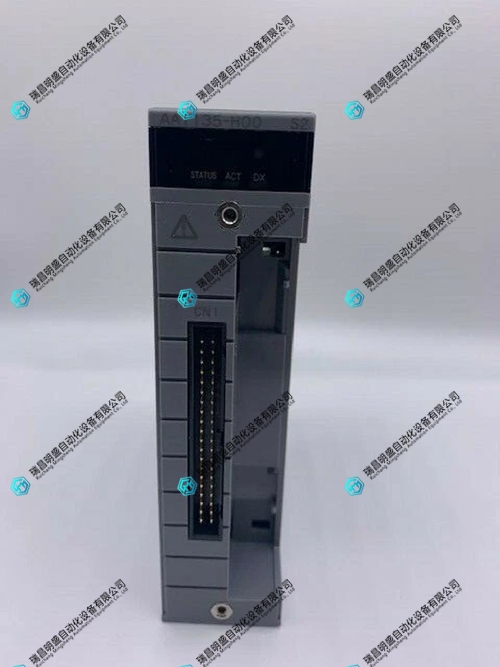

Yokogawa AAI835-H50/K4A00模拟输入/输出模块 产品展示
