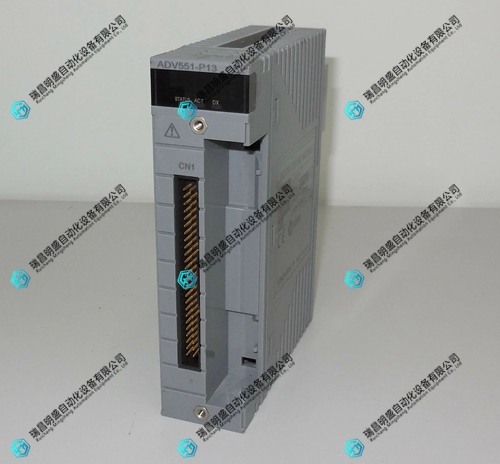

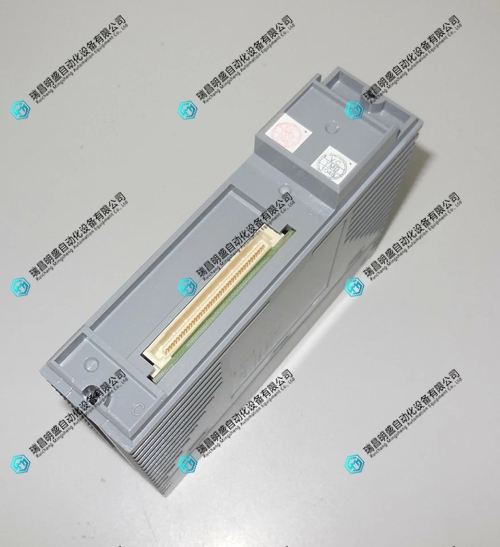

Yokogawa ADV551数字输出模块 PDF资料
1.产 品 资 料 介 绍：
Yokogawa ADV551 数字输出模块是横河 CENTUM VP/CS 3000 系统的核心输出组件，具备以下 15 条特点：
提供 32 路独立数字量输出通道。
额定电压 24V DC，每通道负载能力充足。
输出类型为电流吸收型（Current Sink）。
支持状态输出、脉冲输出和时间比例输出三种模式。
通道间及通道与系统间电气隔离，抗干扰能力强。
响应速度快，满足快速控制需求。
支持主备冗余配置，确保系统高可用。
支持热插拔，便于在线维护和更换。
内置过流保护和短路保护功能。
前面板配备状态指示灯，实时显示各通道状态。
工作温度范围宽，适应工业环境。
具备全方位自诊断功能，故障时自动报警。
支持强制输出功能，便于调试和应急处置。
提供多种接线方式可选。
兼容横河 CENTUM 及 ProSafe-RS 等系统平台。
结尾：
总之，ADV551 模块凭借高密度输出、多种模式及完善保护功能，适用于石油化工、电力、冶金等行业的自动化控制场景。
The Yokogawa ADV551 digital output module is the core output component of the Yokogawa CENTUM VP/CS 3000 system, with the following 15 characteristics:
Provide 32 independent digital output channels.
The rated voltage is 24V DC, and each channel has sufficient load capacity.
The output type is current sink.
Supports three modes: state output, pulse output, and time proportional output.
Electrical isolation between channels and between channels and systems, with strong anti-interference ability.
Fast response speed, meeting the requirements of quick control.
Support primary and backup redundancy configuration to ensure high system availability.
Supports hot swapping for easy online maintenance and replacement.
Built in overcurrent protection and short-circuit protection functions.
The front panel is equipped with status indicator lights, which display the real-time status of each channel.
Wide working temperature range, suitable for industrial environments.
Equipped with comprehensive self diagnostic function, automatic alarm in case of malfunction.
Support forced output function for easy debugging and emergency response.
Provide multiple wiring options to choose from.
Compatible with Yokogawa CENTUM and ProSafe RS system platforms.
ending:
In summary, the ADV551 module, with its high-density output, multiple modes, and comprehensive protection functions, is suitable for automation control scenarios in industries such as petrochemicals, power, and metallurgy.
