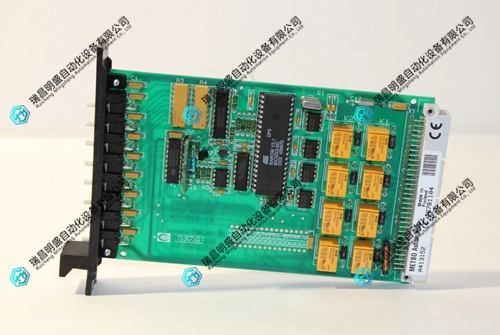

metso A413152 数字量输入/输出模块 PDF资料
1.产 品 资 料 介 绍：
METSO A413152 是美卓（Metso Automation）BIU 8 分布式控制系统中的一款数字量输入/输出混合模块，可同时采集开关量信号并输出控制指令。
中间15个特点
METSO A413152 提供8通道数字量输入和8通道数字量输出。
输入电压范围为18-30V DC，兼容24V DC标准信号。
输入阈值高电平≥15V，低电平≤5V，判别清晰。
输出类型为晶体管，响应速度快。
输出电压为24V DC，每通道输出电流0.5A。
输出具备短路保护和过载保护功能。
输入和输出响应时间均小于1ms。
METSO A413152 采用24V DC供电，功耗约6W。
工作温度范围-40℃至60℃，适应恶劣环境。
防护等级达IP65，防尘防水能力强。
内置光电隔离，输入与输出之间隔离电压≥500V DC。
每通道配备独立LED状态指示灯，便于现场排查。
METSO A413152 采用DIN导轨安装，结构紧凑。
该模块适用于造纸、化工、电力、矿山等行业。
与Metso BIU 8系统及DCS平台深度匹配，即插即用。
结尾
METSO A413152 凭借8入8出的混合设计、宽温防护和快速响应能力，成为美卓DCS系统中灵活可靠的数字量信号处理模块选择。
METSO A413152 is a digital input/output hybrid module in the Metso Automation BIU 8 distributed control system, which can simultaneously collect switch signals and output control commands.
15 characteristics in the middle
METSO A413152 provides 8-channel digital input and 8-channel digital output.
The input voltage range is 18-30V DC, compatible with 24V DC standard signals.
Input threshold high level ≥ 15V, low level ≤ 5V, clear discrimination.
The output type is transistor, with fast response speed.
The output voltage is 24V DC, and each channel outputs a current of 0.5A.
The output has short-circuit protection and overload protection functions.
The response time for both input and output is less than 1ms.
METSO A413152 is powered by 24V DC and consumes approximately 6W of power.
The working temperature range is -40 ℃ to 60 ℃, suitable for harsh environments.
The protection level reaches IP65, with strong dust and waterproof capabilities.
Built in photoelectric isolation, isolation voltage between input and output ≥ 500V DC.
Each channel is equipped with independent LED status indicator lights for easy on-site inspection.
METSO A413152 adopts DIN rail installation, with a compact structure.
This module is suitable for industries such as papermaking, chemical, power, and mining.
Deeply compatible with Metso BIU 8 system and DCS platform, plug and play.
ending
METSO A413152, with its 8-in 8-out hybrid design, wide temperature protection, and fast response capability, has become a flexible and reliable digital signal processing module choice in the Meizuo DCS system.
