METSO A413146输入模块 PDF资料
1.产 品 资 料 介 绍：
METSO A413146 是美卓（Metso Automation）BIU 8 分布式控制系统中的一款数字量输入模块，主要用于采集现场开关量信号。
中间15个特点
METSO A413146 提供16通道数字量输入，适用于多路开关信号采集。
输入电压范围为18-30V DC，兼容24V DC标准信号。
输入阈值高电平≥15V，低电平≤5V，判别清晰。
每通道输入电流约7mA，功耗低。
响应时间小于1ms，满足快速开关量采集需求。
METSO A413146 采用24V DC供电，功耗约5W。
工作温度范围-40℃至60℃，适应恶劣环境。
防护等级达IP65，防尘防水能力强。
内置光电隔离，通道间隔离电压≥500V DC。
每通道配备独立LED状态指示灯，便于现场排查。
支持干接点和湿接点两种输入类型，灵活适配不同传感器。
METSO A413146 采用DIN导轨安装，结构紧凑。
模块尺寸约100×125×60mm，重量约0.4kg。
该模块适用于造纸、化工、电力、矿山等行业。
与Metso BIU 8系统及DCS平台深度匹配，即插即用。
结尾
METSO A413146 凭借16通道数字量输入、宽温设计和IP65防护能力，成为美卓DCS系统中可靠的开关量信号采集模块选择。
METSO A413146输入模块 英文介绍
METSO A413146 is a digital input module in the Metso Automation BIU 8 distributed control system, mainly used for collecting on-site switch signals.
15 characteristics in the middle
METSO A413146 provides 16 channel digital input, suitable for multi-channel switch signal acquisition.
The input voltage range is 18-30V DC, compatible with 24V DC standard signals.
Input threshold high level ≥ 15V, low level ≤ 5V, clear discrimination.
Each channel has an input current of about 7mA and low power consumption.
The response time is less than 1ms, meeting the requirement of fast switch quantity acquisition.
METSO A413146 is powered by 24V DC and consumes approximately 5W of power.
The working temperature range is -40 ℃ to 60 ℃, suitable for harsh environments.
The protection level reaches IP65, with strong dust and waterproof capabilities.
Built in photoelectric isolation, with channel isolation voltage ≥ 500V DC.
Each channel is equipped with independent LED status indicator lights for easy on-site inspection.
It supports two input types, dry contact and wet contact, and flexibly adapts to different sensors.
METSO A413146 adopts DIN rail installation, with a compact structure.
The module size is about 100 × 125 × 60mm, and the weight is about 0.4kg.
This module is suitable for industries such as papermaking, chemical, power, and mining.
Deeply compatible with Metso BIU 8 system and DCS platform, plug and play.
ending
METSO A413146, with its 16 channel digital input, wide temperature design, and IP65 protection capability, has become a reliable switch signal acquisition module choice in Meizuo DCS systems.

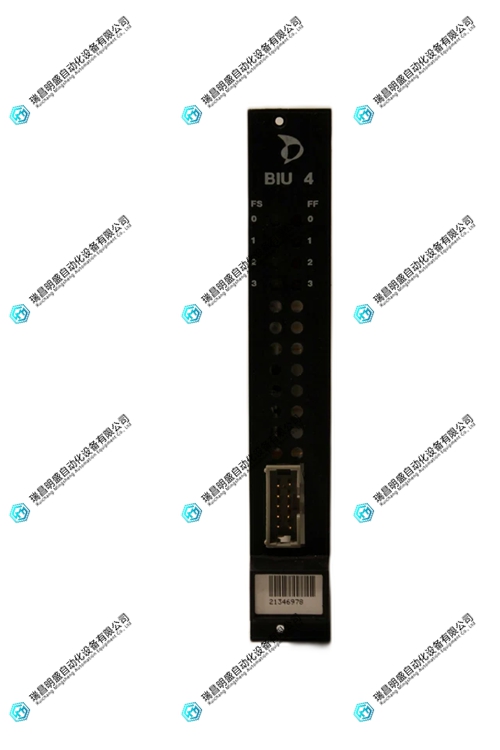

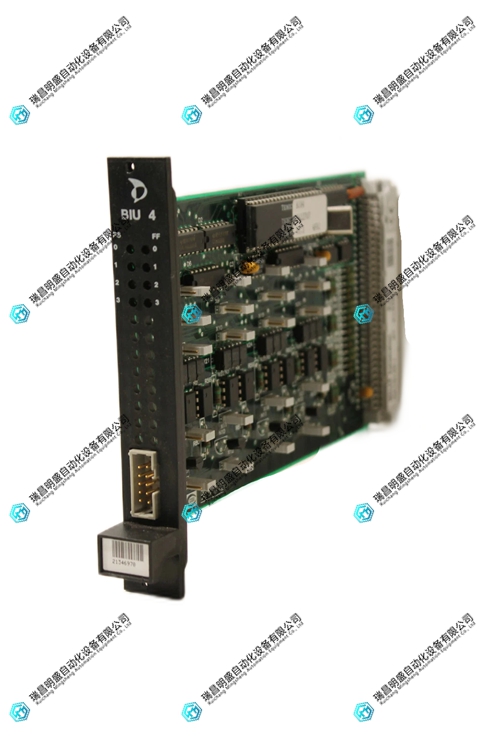

METSO A413146输入模块 产品展示
