IC693MDL753可编程控制器模块 PDF资料
1.产 品 资 料 介 绍：
IC693MDL753是美国GE Fanuc公司生产的一款高密度数字量输出模块，属于Series 90-30可编程逻辑控制器平台，专为工业自动化系统中直流负载设备的高速开关量控制而设计。
产品特点：
产品类型为32点正逻辑数字量输出模块，属于GE Fanuc Series 90-30 PLC系列
输出点数32个，分为4组，每组8个通道，各组之间相互隔离
输出电压范围10.2至28.8V DC，标称电压12V或24V DC，兼容正负15%至20%波动
输出电流每通道0.5安培，每组最大4安培，每个公共引脚最大3安培
输出方式为正逻辑，从模块公共端向负载提供电流
浪涌电流承受能力5.4安培，持续10毫秒
开关响应时间ON和OFF均为0.5毫秒最大值，满足高速控制需求
现场侧与逻辑侧隔离电压1500伏，组间隔离250至500伏
导通压降典型值0.3V DC，关态漏电流最大0.1毫安
背板功耗从5V总线取电，所有输出导通时最大260毫安
配备32个绿色LED指示灯，每通道独立显示开关状态
工作温度范围支持零下40°C至零上70°C，适应极端工业环境
防护等级IP20标准版或IP67部分版本，适应不同环境要求
CPU停止时所有输出强制关闭，确保系统安全
安装方式为标准DIN导轨或底板安装，占用PLC机架一个插槽
结尾：
IC693MDL753数字量输出模块以其32点高密度输出、12-24V DC宽电压兼容性和正逻辑输出特性，成为GE Fanuc Series 90-30 PLC系统中控制直流负载设备的理想选择。该模块广泛应用于制造业生产线、过程自动化、物料搬运系统及基础设施控制等领域，为继电器、电磁阀、指示灯、小型电机等现场设备提供精确稳定的开关量控制信号。
IC693MDL753可编程控制器模块 英文介绍
IC693MDL753 is a high-density digital output module produced by GE Fanuc in the United States. It belongs to the Series 90-30 programmable logic controller platform and is designed specifically for high-speed switch control of DC load equipment in industrial automation systems.
Product Features:
The product type is a 32 point positive logic digital output module, belonging to the GE Fanuc Series 90-30 PLC series
32 output points, divided into 4 groups with 8 channels each, isolated from each other
Output voltage range 10.2 to 28.8V DC, nominal voltage 12V or 24V DC, compatible with positive and negative 15% to 20% fluctuations
Output current of 0.5 amperes per channel, maximum of 4 amperes per group, and maximum of 3 amperes per common pin
The output mode is positive logic, providing current from the module common terminal to the load
Surge current withstand capacity of 5.4 amperes for 10 milliseconds
The switch response time ON and OFF are both maximum values of 0.5 milliseconds, meeting the requirements of high-speed control
The isolation voltage between the on-site side and the logic side is 1500 volts, and the isolation between groups is 250 to 500 volts
Typical value of conduction voltage drop 0.3V DC, maximum off state leakage current 0.1mA
The backplane power consumption is taken from the 5V bus, with a maximum of 260mAh when all outputs are conducting
Equipped with 32 green LED indicator lights, each channel independently displays switch status
The working temperature range supports minus 40 ° C to plus 70 ° C, suitable for extreme industrial environments
Protection level IP20 standard version or IP67 partial version, suitable for different environmental requirements
When the CPU stops, all outputs are forcibly shut down to ensure system security
The installation method is standard DIN rail or base plate installation, occupying one slot in the PLC rack
ending:
The IC693MDL753 digital output module is an ideal choice for controlling DC load equipment in GE Fanuc Series 90-30 PLC systems due to its 32 point high-density output, 12-24V DC wide voltage compatibility, and positive logic output characteristics. This module is widely used in manufacturing production lines, process automation, material handling systems, and infrastructure control, providing precise and stable switch control signals for on-site equipment such as relays, solenoid valves, indicator lights, and small motors.

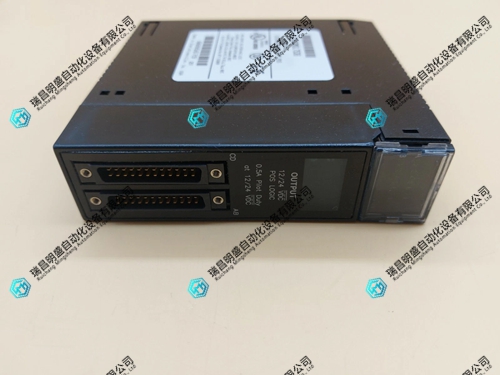

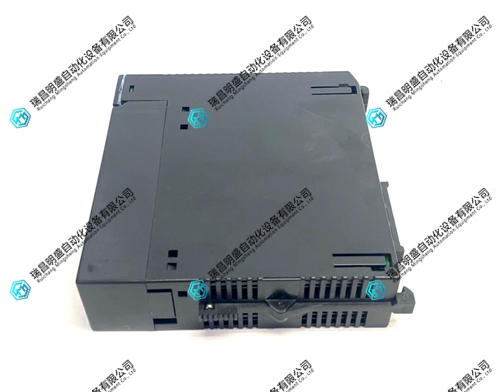

IC693MDL753可编程控制器模块 产品展示
