1.产 品 资 料 介 绍：

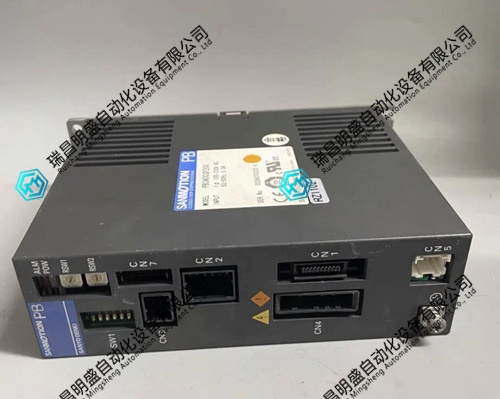

SANYO PB3A003P200 是三洋电机SANMOTION PB系列脉冲串输入型伺服驱动器，工作电压AC100-230V，适用于高精度定位的工业自动化设备。
核心产品特点
支持CW/CCW或脉冲+方向指令，最高脉冲频率500kHz。
可设定定位分辨率500至10000 P/R。
转速范围0-4500 min⁻¹（适配42/60mm电机）。
电源输入AC100-230V，额定电流3A。
内置定位、点动、回原点、推压操作等功能。
具备S曲线加速功能，减少机械冲击。
保护功能：过热、过压、过流、过载、断线等。
支持再生控制与抱闸控制。
输入信号：限位、急停、原点、报警清除等。
输出信号：动作完成、报警、位置到达等。
状态显示：POW/ALM双LED指示灯。
尺寸H150×W45×D120 mm，重量约0.9kg。
适用于精密定位的工业自动化与机器人设备。
结尾
该伺服驱动器以脉冲串控制、高分辨率和紧凑结构为特点，广泛应用于精密定位的工业自动化场景。
SANYO PB3A003P200 is a Sanyo Electric SANMOTION PB series pulse train input servo driver with a working voltage of AC100-230V, suitable for high-precision positioning industrial automation equipment.
Core product features
Supports CW/CCW or pulse+direction commands, with a maximum pulse frequency of 500kHz.
The positioning resolution can be set to 500 to 10000 P/R.
Speed range 0-4500 min ⁻¹ (suitable for 42/60mm motors).
Power input AC100-230V, rated current 3A.
Built in functions such as positioning, jog, return to origin, and push operation.
Equipped with S-curve acceleration function to reduce mechanical impact.
Protection functions: overheating, overvoltage, overcurrent, overload, disconnection, etc.
Support regeneration control and brake control.
Input signals: limit, emergency stop, origin, alarm clearing, etc.
Output signals: action completion, alarm, position arrival, etc.
Status display: POW/ALM dual LED indicator lights.
Size H150 × W45 × D120 mm, weight approximately 0.9kg.
Industrial automation and robotic equipment suitable for precise positioning.
ending
This servo driver is characterized by pulse train control, high resolution, and compact structure, and is widely used in industrial automation scenarios for precision positioning.
