SABO MPB.533.00 PLM500微处理器 PDF资料
1.产 品 资 料 介 绍：

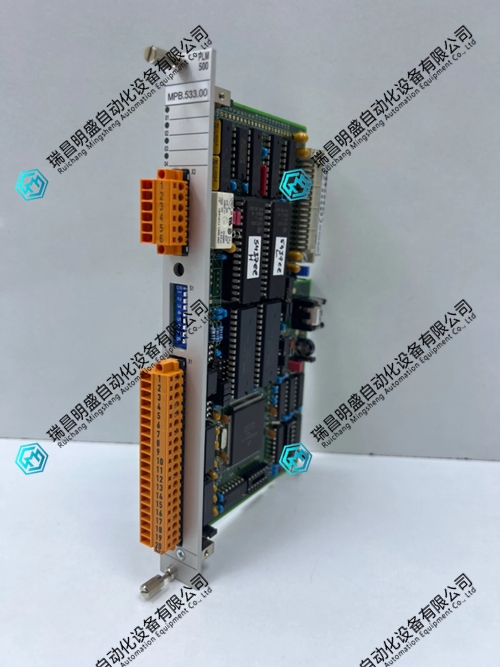

SABO MPB.533.00 PLM500 是意大利 SABO 公司生产的模块化微处理器控制组件，采用 MC68340 16位处理器，是 PLM500 模块化系统的核心控制单元。
核心产品特点
搭载 Motorola MC68340 16位微处理器，专为实时控制与数据处理设计。
内存配置：256至1024 kByte RAM，搭配1024 kByte FLASH EPROM用于固件存储。
通信接口丰富：配备2路RS-232C串口和1路RS-485隔离接口，适应工业环境多点通信。
采用4-TE宽面板插槽式设计，作为模块化系统的可装配组件。
配备4个可自由编程的LED状态指示灯，便于现场监控模块运行状态。
内置看门狗继电器，具备无源转换触点，可监测处理器故障并触发安全保护。
供电通过总线连接器内部提供，简化外部接线。
电流消耗约220mA，功耗较低。
工作温度范围0℃至45℃，存储温度-10℃至70℃。
最大湿度85%无冷凝，防护等级IP00，需安装在带防护的机柜内使用。
适用场景：工业自动化系统、机器设备控制、数据采集与通信中继。
主要应用于制造业生产线、能源设施等SABO控制系统部署的场合。
该产品常见于现役工业设备中，多作为备件用于老旧系统的维护与升级。
结尾
该微处理器模块是PLM500模块化控制系统的核心部件，以其16位实时处
Computer Identics A1-62630-1扫描控制器 英文介绍
SABO MPB.533.00 PLM500 is a modular microprocessor control component produced by the Italian company SABO. It uses the MC68340 16 bit processor and is the core control unit of the PLM500 modular system.
Core product features
Equipped with Motorola MC68340 16 bit microprocessor, designed specifically for real-time control and data processing.
Memory configuration: 256 to 1024 kByte RAM, paired with 1024 kByte FLASH EPROM for firmware storage.
Rich communication interfaces: equipped with 2 RS-232C serial ports and 1 RS-485 isolation interface, suitable for multi-point communication in industrial environments.
Adopting a 4-TE wide panel slot design as a modular system's assemblable component.
Equipped with 4 freely programmable LED status indicator lights for easy on-site monitoring of module operation status.
Built in watchdog relay with passive conversion contacts, capable of monitoring processor faults and triggering safety protection.
Power is provided internally through the bus connector, simplifying external wiring.
The current consumption is about 220mA, with low power consumption.
The working temperature range is 0 ℃ to 45 ℃, and the storage temperature is -10 ℃ to 70 ℃.
The maximum humidity is 85% without condensation, with a protection level of IP00, and it needs to be installed in a protected cabinet for use.
Applicable scenarios: industrial automation systems, machine equipment control, data acquisition and communication relay.
Mainly used in the deployment of SABO control systems on manufacturing production lines, energy facilities, and other occasions.
This product is commonly found in active industrial equipment and is often used as a spare part for the maintenance and upgrade of old systems.
ending
This microprocessor module is the core component of the PLM500 modular control system, with its 16 bit real-time processing
