TSX07311628扩展模块 PDF资料
1.产 品 资 料 介 绍：
TSX07311628 是施耐德电气 Modicon Nano 系列中的一款紧凑型可编程逻辑控制器模块，主要用于小型自动化项目的逻辑控制与设备驱动。以下是该模块的15条主要产品特点：
中间15条特点：
属于施耐德 Modicon Nano 系列紧凑型可编程控制器
集成 16 个输入输出点，适配 24V DC 输入信号
配备 7 个常开型继电器输出通道，可直接驱动接触器、电磁阀等执行机构
继电器输出支持 240V AC 电压，单通道输出电流 1.5A，触点电流可达 2A
输出响应时间：0→1 状态转换小于 5ms，1→0 状态转换小于 10ms
适配宽范围交流供电，额定供电 100-240V AC，频率 50-60Hz
同时兼容 24V DC 电源供电，并设有 24V DC 150mA 辅助输出
配备非隔离型 RS-485 通信接口，支持与其他设备的数据交互
部分配置支持以太网端口，便于网络集成
工作温度范围为 0°C 至 60°C，存储温度范围 -25°C 至 70°C
防护等级为 IP20，适用于控制柜内安装
工作海拔最高可达 2000 米，适应多种安装环境
重量约 0.48kg，外形尺寸紧凑，节省安装空间
编程符合 IEC 61131-3 标准，支持多种常用编程语言
广泛应用于小型生产线控制、楼宇自动化中的照明与门禁控制、暖通空调系统等领域
结尾（总结）：
总体来看，该模块作为 Modicon Nano 系列的小型 PLC 控制器，具有集成度高、电源适应性强、继电器输出可直接驱动负载等特点，是各类中小型工业自动化及楼宇控制项目的实用选择。
TSX07311628扩展模块 英文介绍
TSX07311628 is a compact programmable logic controller module in Schneider Electric's Modicon Nano series, mainly used for logic control and device driving in small automation projects. Here are the 15 main product features of this module:
The 15 characteristics in the middle:
Belonging to Schneider Modicon Nano series compact programmable controllers
Integrate 16 input and output points, compatible with 24V DC input signals
Equipped with 7 normally open relay output channels, it can directly drive actuators such as contactors and solenoid valves
The relay output supports 240V AC voltage, with a single channel output current of 1.5A and a contact current of up to 2A
Output response time: 0 → 1 state transition less than 5ms, 1 → 0 state transition less than 10ms
Suitable for wide range AC power supply, rated power supply 100-240V AC, frequency 50-60Hz
Simultaneously compatible with 24V DC power supply and equipped with 24V DC 150mA auxiliary output
Equipped with non isolated RS-485 communication interface, supporting data exchange with other devices
Partial configuration supports Ethernet ports for easy network integration
The working temperature range is 0 ° C to 60 ° C, and the storage temperature range is -25 ° C to 70 ° C
The protection level is IP20, suitable for installation inside control cabinets
Working at an altitude of up to 2000 meters, suitable for various installation environments
Weight approximately 0.48kg, compact size, saving installation space
The programming complies with the IEC 61131-3 standard and supports multiple commonly used programming languages
Widely used in small production line control, lighting and access control in building automation, HVAC systems and other fields
Conclusion:
Overall, as a small PLC controller in the Modicon Nano series, this module has the characteristics of high integration, strong power adaptability, and relay output that can directly drive loads. It is a practical choice for various small and medium-sized industrial automation and building control projects.

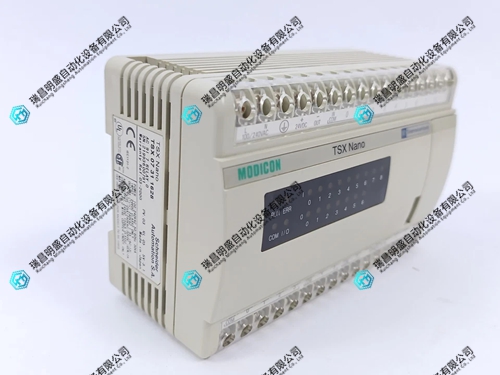

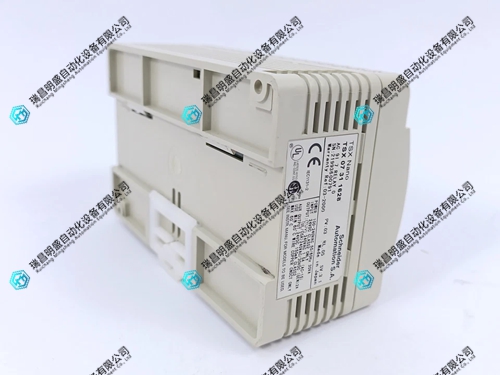

TSX07311628扩展模块 产品展示
