TSX07311622控制器模块 PDF资料
1.产 品 资 料 介 绍：
TSX07311622 是施耐德电气推出的一款工业自动化控制器模块，属于 Modicon 系列产品，主要用于小型自动化项目的逻辑控制与数据处理。以下是该模块的15条主要产品特点：
中间15条特点：
属于施耐德 Modicon 系列，具体子系列有 NANO 和 Quantum 两种描述
产品定位为紧凑型可编程逻辑控制器模块，适用于小型自动化应用
具备模块化设计，支持灵活配置和系统扩展
集成数字量输入输出点，无需单独配置 I/O 模块
输入点数存在多种描述：有 9 点、16 点、20 点、32 点等不同说法
输出点数也存在差异：有 2 点、7 点、16 点等不同配置
工作电源主流描述为 24V DC，适配标准工业控制电源
支持多种通信协议，包括以太网 TCP/IP、CANopen、AS-Interface、RS-232/RS-485 等
存储容量为 128K 字节，处理时间为 0.15 微秒，数据处理能力较强
支持多任务系统，包括主任务、快速任务和事件任务
具备加密和身份验证功能，保护程序和参数安全
工作温度范围较宽，一般为 -40°C 至 85°C，适应恶劣工业环境
防护等级为 IP20，适用于控制柜内安装
设计紧凑，宽度仅 55mm，重量约 0.5kg，节省安装空间
广泛应用于制造业、电力系统、水处理、交通控制、楼宇自动化等领域
结尾（总结）：
总体来看，该模块作为施耐德 Modicon 系列的小型 PLC 控制器，具有设计紧凑、配置灵活、通信接口丰富、环境适应性强等特点，是各类中小型工业自动化控制项目的可靠选择。
TSX07311622控制器模块 英文介绍
TSX07311622 is an industrial automation controller module launched by Schneider Electric, belonging to the Modicon series products, mainly used for logic control and data processing of small automation projects. Here are the 15 main product features of this module:
The 15 characteristics in the middle:
Belonging to the Schneider Modicon series, the specific sub series have two descriptions: NANO and Quantum
The product is positioned as a compact programmable logic controller module, suitable for small automation applications
Featuring modular design, supporting flexible configuration and system expansion
Integrated digital input/output points, no need to separately configure I/O modules
There are various descriptions for input points, such as 9 points, 16 points, 20 points, 32 points, etc
There are also differences in output points: there are different configurations such as 2 points, 7 points, 16 points, etc
The mainstream description of the working power supply is 24V DC, suitable for standard industrial control power supply
Supports multiple communication protocols, including Ethernet TCP/IP, CANopen, AS Interface, RS-232/RS-485, etc
The storage capacity is 128K bytes, the processing time is 0.15 microseconds, and the data processing capability is strong
Support multitasking systems, including main tasks, quick tasks, and event tasks
Equipped with encryption and authentication functions to protect program and parameter security
The working temperature range is wide, generally from -40 ° C to 85 ° C, suitable for harsh industrial environments
The protection level is IP20, suitable for installation inside control cabinets
Compact design, with a width of only 55mm and a weight of approximately 0.5kg, saving installation space
Widely used in manufacturing, power systems, water treatment, traffic control, building automation and other fields
Conclusion:
Overall, as a small PLC controller of Schneider Modicon series, this module has the characteristics of compact design, flexible configuration, rich communication interfaces, and strong environmental adaptability. It is a reliable choice for various small and medium-sized industrial automation control projects.

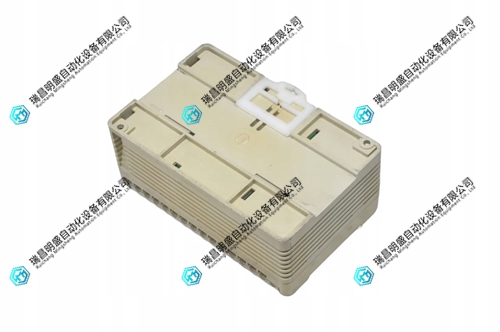

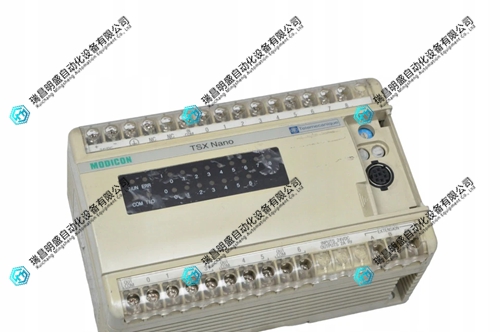

TSX07311622控制器模块 产品展示
