6GK1105-2AC10交换机 PDF资料
1.产 品 资 料 介 绍：
6GK1105-2AC10 交换机
开头： 6GK1105-2AC10 是西门子工业通信产品线中的一款入门级非网管型工业以太网交换机，适用于小型自动化网络中的设备互联与数据转发。
核心特点：
提供5个10/100Mbps自适应RJ45端口，支持自动协商和自动交叉功能。
采用存储转发交换模式，确保数据传输的完整性和可靠性。
工作温度范围-10°C至+60°C，适合多数工业现场环境。
防护等级IP20，需安装于控制柜或其他封闭空间内。
支持冗余电源输入（24V DC），提高供电可靠性。
具备LED状态指示灯，可直观查看端口连接、电源及通信状态。
采用卡轨式安装，便于在标准DIN导轨上快速部署。
即插即用设计，无需任何配置即可投入运行。
符合IEEE 802.3、802.3u、802.3x等国际标准。
具备广播风暴保护功能，防止网络因广播包过多而瘫痪。
6GK1105-2AC10 适用于小型PLC网络、现场设备互联及车间级数据采集场景。
作为西门子原厂产品，与S7系列PLC及其他工业设备具有良好的兼容性。
结尾： 总体而言，6GK1105-2AC10 凭借5个百兆端口、即插即用的简便性和紧凑的工业设计，为小型工业以太网提供了稳定可靠的连接方案。
6GK1105-2AC10交换机 英文介绍
6GK1105-2AC10 Switch
Introduction: 6GK1105-2AC10 is an entry-level unmanaged industrial Ethernet switch in Siemens' industrial communication product line, suitable for device interconnection and data forwarding in small automation networks.
Core features:
Provide 5 10/100Mbps adaptive RJ45 ports, supporting automatic negotiation and automatic crossover functions.
Adopting a store and forward exchange mode to ensure the integrity and reliability of data transmission.
The working temperature range is -10 ° C to+60 ° C, suitable for most industrial site environments.
Protection level IP20, to be installed in control cabinets or other enclosed spaces.
Support redundant power input (24V DC) to improve power supply reliability.
Equipped with LED status indicator lights, it can visually view port connections, power supply, and communication status.
Adopting a card rail installation, it is easy to quickly deploy on standard DIN rails.
Plug and play design, can be put into operation without any configuration.
Compliant with international standards such as IEEE 802.3, 802.3u, and 802.3x.
Equipped with broadcast storm protection function to prevent network paralysis due to excessive broadcast packets.
6GK1105-2AC10 is suitable for small PLC networks, on-site equipment interconnection, and workshop level data acquisition scenarios.
As an original Siemens product, it has good compatibility with S7 series PLCs and other industrial equipment.
Conclusion: Overall, 6GK1105-2AC10 provides a stable and reliable connection solution for small industrial Ethernet with its 5 100Mbps ports, plug and play convenience, and compact industrial design.

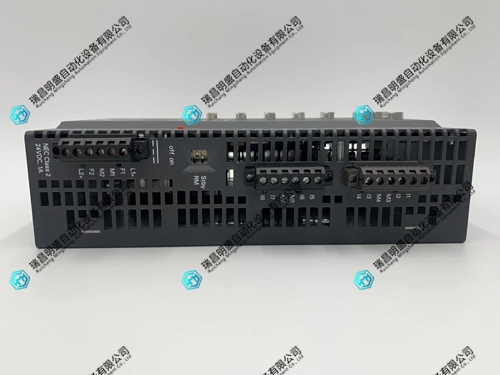

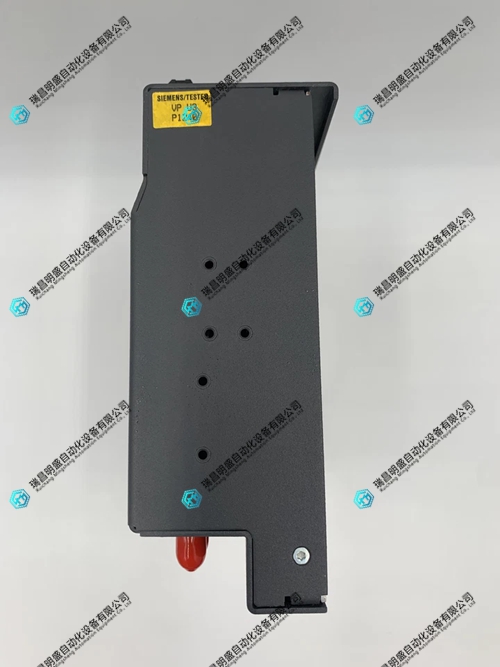

6GK1105-2AC10交换机 产品展示
