Yokogawa F3SP21-0N中央控制器 PDF资料
1.产 品 资 料 介 绍：

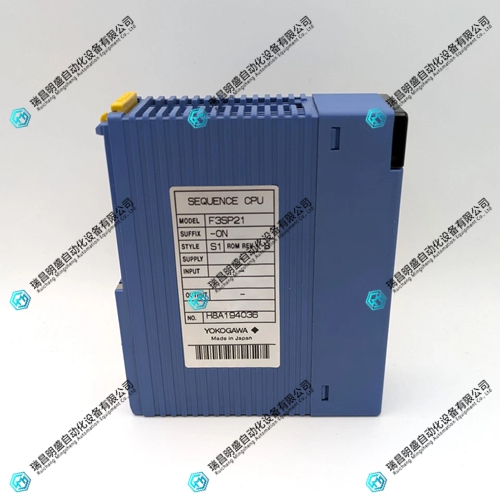

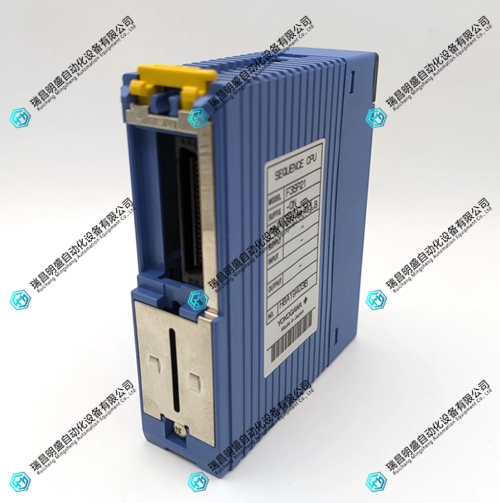

Yokogawa F3SP21-0N是横河FA-M3系列PLC的中央控制器（CPU模块），作为系统核心负责程序执行与数据处理。
基本指令速度0.1μs/步，应用指令0.5μs~数μs/步。
用户程序容量80KB Flash，数据存储器32KB。
最多扩展256点数字量I/O，适配各类I/O模块。
内置RS-485接口，支持Modbus RTU协议。
可扩展以太网、PROFINET等通信模块。
内置程序错误诊断、I/O故障诊断、通信异常诊断功能。
支持用户程序密码保护。
内置看门狗定时器，防止程序跑飞。
支持模块热插拔，便于维护。
工作温度0~55℃，存储温度-25~70℃。
湿度适应范围5~95%（无结露）。
绝缘电阻≥5MΩ（500V DC测试）。
插槽式安装，适配FA-M3系列基板。
支持与HMI、上位机、其他PLC直接通信。
符合IEC 61131-2标准，污染等级2。
F3SP21-0N中央控制器以高速运算、丰富指令集和全面诊断功能，为FA-M3系统提供稳定可靠的控制核心。
Yokogawa F3SP21-0N is the central controller (CPU module) of Yokogawa FA-M3 series PLC, responsible for program execution and data processing as the system core.
The basic instruction speed is 0.1 μ s/step, and the application instruction speed ranges from 0.5 μ s to several μ s/step.
The user program has a capacity of 80KB Flash and 32KB data storage.
Expand up to 256 digital I/O points and adapt to various I/O modules.
Built in RS-485 interface, supporting Modbus RTU protocol.
Scalable communication modules such as Ethernet and PROFINET.
Built in program error diagnosis, I/O fault diagnosis, and communication anomaly diagnosis functions.
Support password protection for user programs.
Built in watchdog timer to prevent program from running away.
Support module hot plugging for easy maintenance.
The working temperature is 0-55 ℃, and the storage temperature is -25~70 ℃.
The humidity adaptation range is 5-95% (without condensation).
Insulation resistance ≥ 5M Ω (tested at 500V DC).
Slot installation, compatible with FA-M3 series substrates.
Support direct communication with HMI, upper computer, and other PLCs.
Compliant with IEC 61131-2 standard, pollution level 2.
The F3SP21-0N central controller provides a stable and reliable control core for the FA-M3 system with high-speed computing, rich instruction set, and comprehensive diagnostic functions.
