JANCD-MCP02B-1控制电路板  PDF资料

1.产 品 资 料 介 绍：

YASKAWA JANCD-MCP02B-1是一款高性能运动控制电路板，主要用于工业机器人及多轴运动控制系统的精准控制。

• 最多可控制21个伺服轴，满足复杂机器人运动需求

• 支持2台机器人的同步协调控制

• 标准编程容量为2200个位置点，可扩展至60000个位置

• 标配48个I/O信号点，可扩展至144个

• 输入电压AC 200V±10%，输出电压DC 250V

• 最大输出电流2.2A，适配5.5kW至90kW功率范围负载

• 支持V/f控制、开环矢量控制、闭环矢量控制三种控制方式

• 输出频率范围0至400Hz，调节范围宽

• 通讯接口包括RS-232C、RS-485、Modbus、EtherNet/IP

• 支持Profibus DP协议，数据传输速率达100Mbps

• 具备过载、过压、欠压、过流、过热等多重保护功能

• 工作温度范围-10℃至60℃，相对湿度≤90%RH无凝露

• 防护等级IP20，适配标准控制柜内安装环境

• 支持离线编程功能，可从普通PC编辑机器人作业

YASKAWA JANCD-MCP02B-1凭借其多轴同步控制能力及高可靠性设计，广泛应用于工业机器人、数控机床、包装机械、印刷机械等需要高精度运动控制的自动化领域。

JANCD-MCP02B-1控制电路板 英文介绍

YASKAWA JANCD-MCP02B-1 is a high-performance motion control circuit board mainly used for precise control of industrial robots and multi axis motion control systems.

Up to 21 servo axes can be controlled to meet the motion requirements of complex robots

Support synchronous coordination control of 2 robots

The standard programming capacity is 2200 position points, which can be expanded to 60000 positions

Standard configuration includes 48 I/O signal points, expandable to 144

Input voltage AC 200V ± 10%, output voltage DC 250V

Maximum output current 2.2A, suitable for loads in the power range of 5.5kW to 90kW

Supports three control modes: V/f control, open-loop vector control, and closed-loop vector control

Output frequency range 0 to 400Hz, wide adjustment range

Communication interfaces include RS-232C, RS-485, Modbus, EtherNet/IP

Supports Profibus DP protocol, with a data transmission rate of up to 100Mbps

Equipped with multiple protection functions such as overload, overvoltage, undervoltage, overcurrent, and overheating

Working temperature range -10 ℃ to 60 ℃, relative humidity ≤ 90% RH, no condensation

Protection level IP20, suitable for installation environment inside standard control cabinets

Support offline programming function, allowing for editing robot tasks from a regular PC

YASKAWA JANCD-MCP02B-1, with its multi axis synchronous control capability and high reliability design, is widely used in automation fields such as industrial robots, CNC machine tools, packaging machinery, printing machinery, etc. that require high-precision motion control.

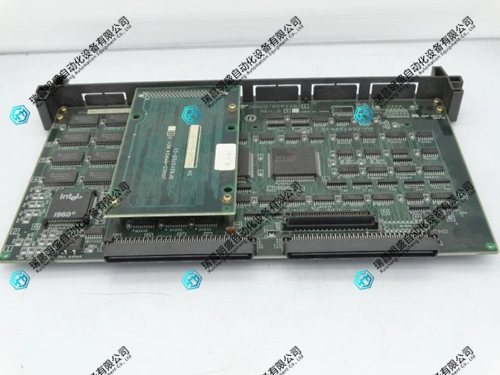

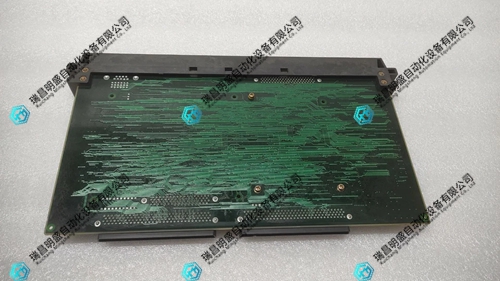

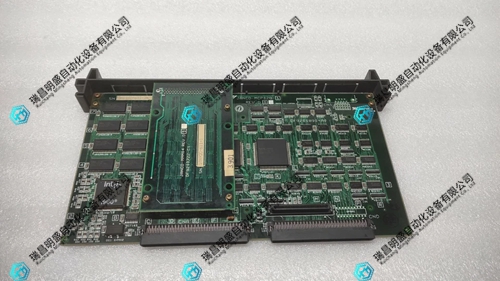

JANCD-MCP02B-1控制电路板 产品展示
