1.产 品 资 料 介 绍：

WESTINGHOUSE ZX345Q 以太网模块

产品概述

ZX345Q是WESTINGHOUSE（西屋电气）推出的四通道PCI快速以太网适配器，专为工业控制系统、嵌入式系统及军事通信等场景设计，提供高可靠性的多通道网络连接能力。

核心特点

1. 四通道独立端口：提供1至4个可选以太网通道，满足多设备并行通信需求

2. PCI总线接口：完全符合PCI 2.0和2.1规范，在大多数系统中即插即用

3. 冗余链路支持：内置RAINlink软件，支持高可用性应用的冗余链路和快速故障切换

4. LED状态指示：配备链接和活动指示灯，便于现场快速诊断通信状态

5. 工业环境适配：适用于商业、军事或嵌入式系统等多种严苛环境

6. 宽温工作：工作温度-20℃至+70℃，适应工业现场环境

7. 紧凑尺寸：约12.1×5.2×16.5 cm，重量约0.32kg（含支架）

8. 信号处理能力强：采用先进数字输入技术，毫秒级信号响应

9. 抗电磁干扰：通过电磁兼容性测试，在复杂电磁环境中保持信号纯净

10. 模块化安装：结构紧凑，适合自动化产线、能源管理系统等空间受限场景

11. IP20防护等级：符合IEC 60529标准，适用于控制柜内安装

12. AC 220V供电：工作电压AC 220V ±15%

13. 频率可调：输出频率50kHz，可调范围±5kHz

14. 质量认证：通过ISO 9001质量体系认证

15. 多场景适用：适用于炼油厂控制系统、智能仓储设备、能源管理等

典型应用

工业自动化产线网络通信、能源管理系统数据采集、化工设备控制柜互联、嵌入式系统网络扩展、军事通信设备冗余链路部署。

ZX345Q以太网模块 英文介绍

WESTINGHOUSE ZX345Q Ethernet Module

Product Overview

ZX345Q is a four channel PCI Fast Ethernet adapter launched by Westinghouse Electric, designed specifically for industrial control systems, embedded systems, and military communication scenarios, providing high reliability multi-channel network connectivity capabilities.

Core Features

Four channel independent ports: providing 1 to 4 optional Ethernet channels to meet the parallel communication needs of multiple devices

PCI bus interface: fully compliant with PCI 2.0 and 2.1 specifications, plug and play in most systems

Redundant link support: Built in RAINlink software, supporting redundant links for high availability applications and fast fault switching

LED status indicator: equipped with link and activity indicator lights for quick on-site diagnosis of communication status

Industrial environment adaptation: suitable for various harsh environments such as commercial, military, or embedded systems

Wide temperature operation: Operating temperature range of -20 ℃ to+70 ℃, suitable for industrial site environment

Compact size: approximately 12.1 × 5.2 × 16.5 cm, weight approximately 0.32kg (including bracket)

Strong signal processing capability: adopting advanced digital input technology, millisecond level signal response

Anti electromagnetic interference: maintain signal purity in complex electromagnetic environments through electromagnetic compatibility testing

Modular installation: compact structure, suitable for space constrained scenarios such as automated production lines and energy management systems

IP20 protection level: compliant with IEC 60529 standard, suitable for installation inside control cabinets

AC 220V power supply: working voltage AC 220V ± 15%

Frequency adjustable: output frequency 50kHz, adjustable range ± 5kHz

Quality certification: Passed ISO 9001 quality system certification

Multi scenario applicability: suitable for refinery control systems, intelligent warehousing equipment, energy management, etc

Typical Applications

Industrial automation production line network communication, energy management system data collection, interconnection of chemical equipment control cabinets, embedded system network expansion, deployment of redundant links for military communication equipment.

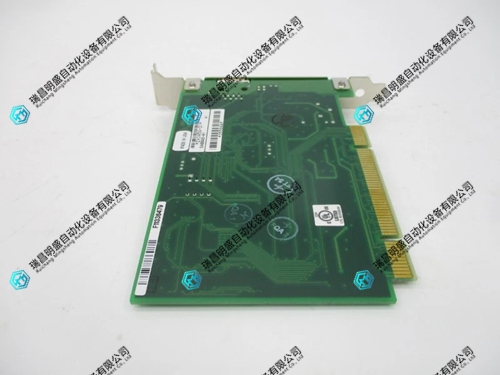

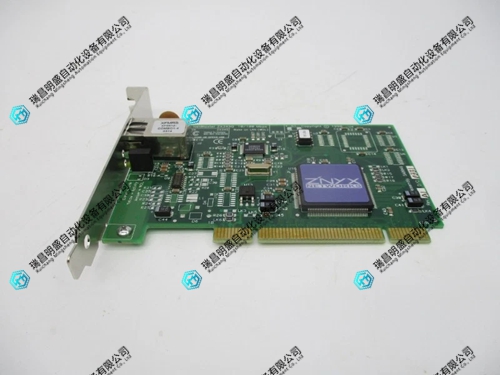

ZX345Q以太网模块 产品展示
