TrueTime GPS-VME 560-5622 电路板 PDF资料
TrueTime GPS-VME 560-5622 电路板
产品特点（5条）
6U VME 插件卡，向 VME 总线计算机提供精确时间，时间范围从微秒到数千年。
可独立作为发生器运行，也可同步至 GPS 系统或外部 IRIG 参考信号。
GPS 同步模式下对 UTC 精度优于 1 微秒，位置精度约 25 米。
时间数据以 5 个 16 位 BCD 字提供给 VME 总线，读取零延迟，无需等待就绪标志。
具备双时间冻结寄存器、可编程速率发生器、四路独立可编程中断及双时间比较功能。
产品应用领域（10条）
VME 总线计算机系统的高精度时间同步。
需要 GPS 授时的工业控制与数据采集系统。
IRIG-B 时间码生成与分配。
外部事件时间标记。
需要微秒级时间戳的科研数据记录。
多设备主/从时间同步架构。
老旧 VME 系统的授时板卡替换。
电力、通信等基础设施的时间同步节点。
需要可编程脉冲输出与中断的定时控制场景。
已停产 TrueTime 授时系统的维修备件。
总结：TrueTime GPS-VME 560-5622 属于 GPS 同步 VME 授时卡系列，核心功能是为 VME 计算机提供微秒级精确时间与 IRIG-B 码，适用于高精度时间同步的 VME 系统集成与维修替换
TrueTime GPS-VME 560-5622 电路板 英文介绍
TrueTime GPS-VME 560-5622 Circuit Board
Product features (5 items)
6U VME plugin card provides precise time to VME bus computers, ranging from microseconds to thousands of years.
It can operate independently as a generator or synchronize with GPS systems or external IRIG reference signals.
In GPS synchronization mode, the accuracy of UTC is better than 1 microsecond, and the position accuracy is about 25 meters.
The time data is provided to the VME bus in 5 16 bit BCD words, with zero read delay and no need to wait for the ready flag.
Equipped with dual time freeze register, programmable rate generator, four independent programmable interrupts, and dual time comparison function.
Product application areas (10 items)
High precision time synchronization of VME bus computer system.
An industrial control and data acquisition system that requires GPS timing.
IRIG-B time code generation and allocation.
External event timestamp.
Scientific research data records that require microsecond level timestamps.
Multi device master/slave time synchronization architecture.
Replace the timing board of the old VME system.
Time synchronization nodes for infrastructure such as electricity and communication.
A timing control scenario that requires programmable pulse output and interrupts.
Repair spare parts for discontinued TrueTime timing system.
Summary: TrueTime GPS-VME 560-5622 belongs to the GPS synchronous VME timing card series, with the core function of providing microsecond level accurate time and IRIG-B code for VME computers, suitable for high-precision time synchronization VME system integration and maintenance replacement

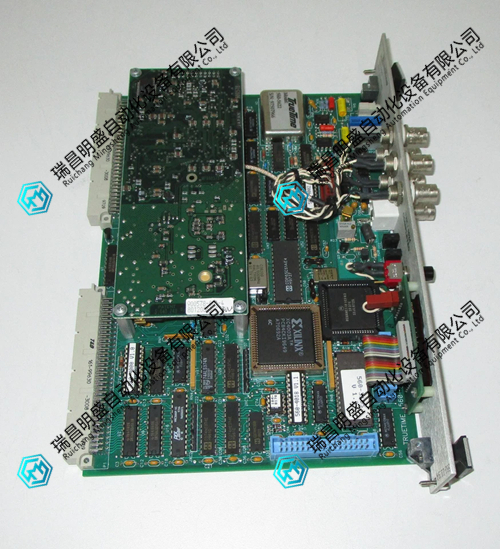

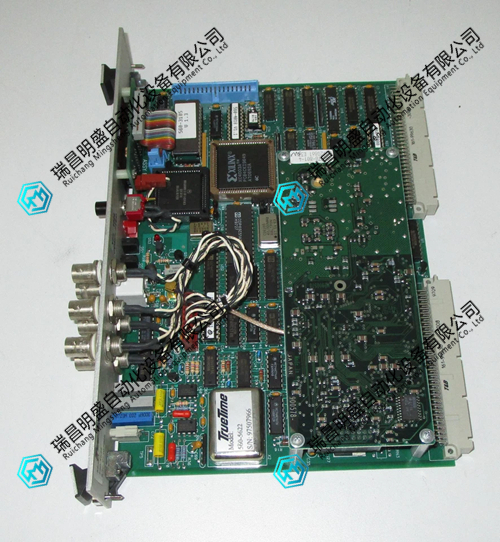

TrueTime GPS-VME 560-5622 电路板 产品图片
