UNITROL 1010 数据采集模块
1.产 品 资 料 介 绍：
中文资料：
UNITROL 1010是一款高性能数据采集模块，具备多通道的模拟输入功能，可以实时采集和处理各种类型的数据，如电压、电流、频率、温度等，能够同时采集多个模拟信号，以满足各种复杂的数据采集需求。它特别适用于发电厂的励磁控制系统，能够实时采集发电机的电流、电压、功率等参数，并将其传输到励磁控制系统中，实现精确的励磁控制。
该模块还具有高速采样率和高分辨率的特点，这保证了精确的信号重构和捕捉瞬态事件，提供了丰富的细节和更高的测量精度。为了满足不同信号幅值的测量需求，它支持灵活的输入范围和增益控制，并提供了多个可编程增益放大器以实现输入信号的调整和优化。此外，该模块还支持外部触发和同步操作功能，使其能够与其他设备进行精确的时钟同步，进一步提高数据采集的准确性和可靠性。
在应用场景方面，UNITROL 1010高性能数据采集模块广泛应用于电力系统的监控、电机控制、工业自动化等领域。特别是在发电厂的励磁控制系统中，该模块能够实时采集和处理数据，实现精确的励磁控制，从而提高发电效率并降低运行成本。
总的来说，UNITROL 1010数据采集模块以其卓越的性能和广泛的应用领域，为工业自动化和电力系统等领域的数据采集和监控提供了强有力的支持。
英文资料
UNITROL 1010 is a high-performance data acquisition module with multi-channel analog input function, which can collect and process various types of data in real time, such as voltage, current, frequency, temperature, etc. It can simultaneously collect multiple analog signals to meet various complex data acquisition needs. It is particularly suitable for the excitation control system of power plants, which can collect real-time parameters such as generator current, voltage, and power, and transmit them to the excitation control system to achieve precise excitation control.
This module also features high sampling rate and resolution, which ensures accurate signal reconstruction and capture of transient events, providing rich details and higher measurement accuracy. In order to meet the measurement needs of different signal amplitudes, it supports flexible input range and gain control, and provides multiple programmable gain amplifiers to achieve input signal adjustment and optimization. In addition, the module also supports external triggering and synchronization operation functions, enabling it to achieve precise clock synchronization with other devices, further improving the accuracy and reliability of data collection.
In terms of application scenarios, the UNITROL 1010 high-performance data acquisition module is widely used in fields such as power system monitoring, motor control, and industrial automation. Especially in the excitation control system of power plants, this module can collect and process data in real time, achieve precise excitation control, thereby improving power generation efficiency and reducing operating costs.
Overall, the UNITROL 1010 data acquisition module provides strong support for data acquisition and monitoring in industries such as industrial automation and power systems due to its excellent performance and wide range of applications.

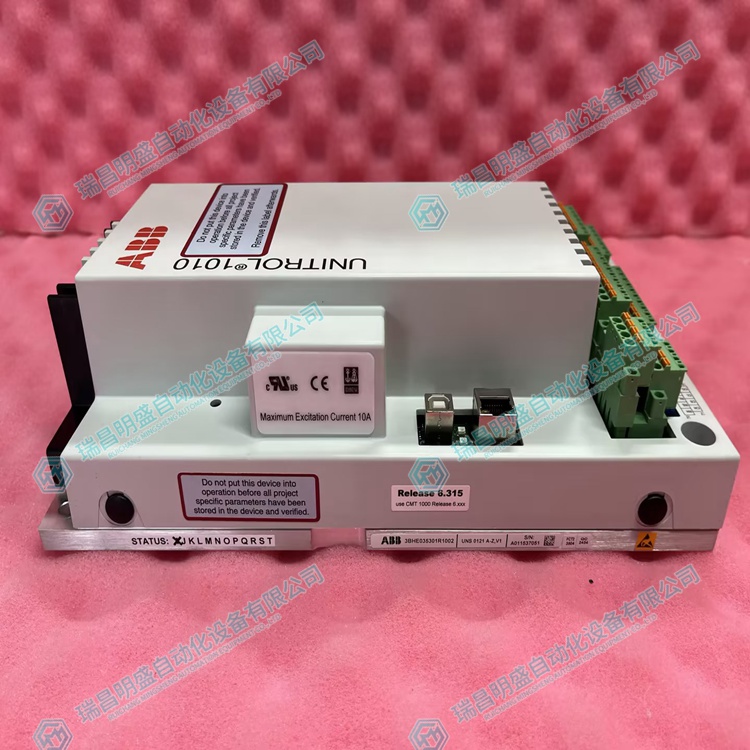

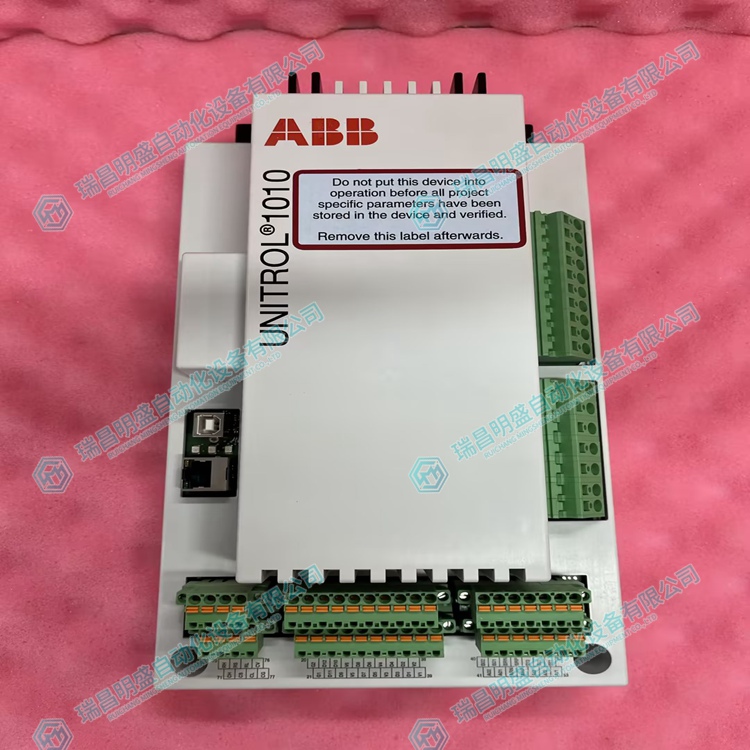

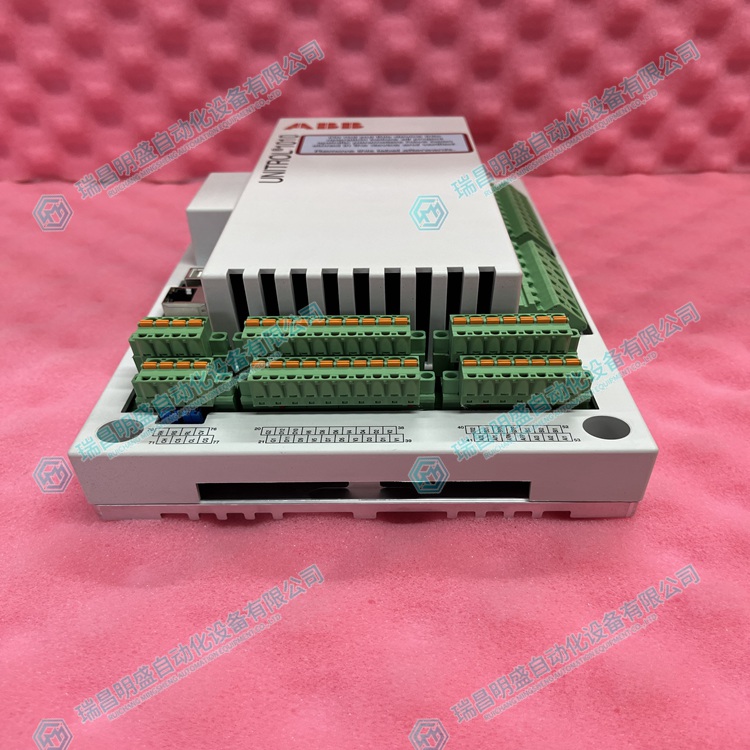

2.产 品 展 示
3.产 品 展 示
