MMLG01B1AA0001C 继电保护测试模块 PDF资料

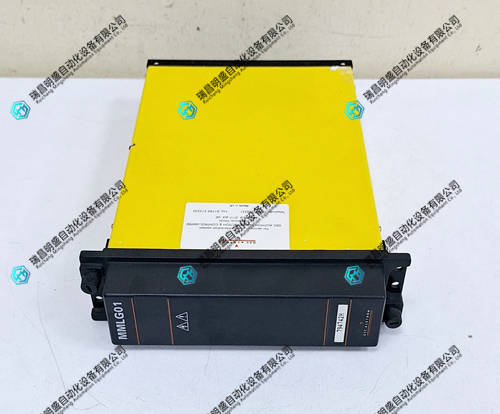

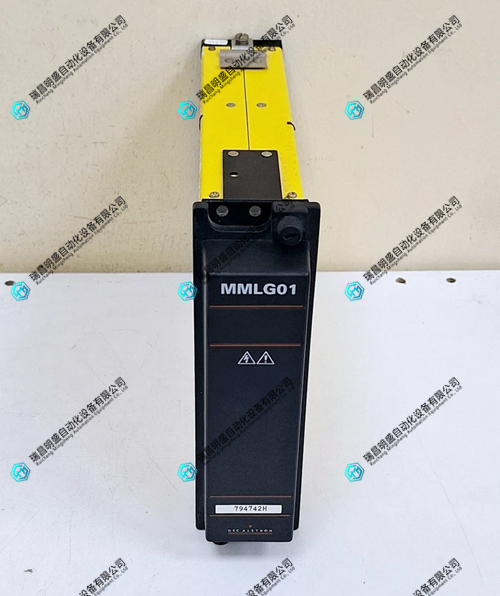

MMLG01B1AA0001C 是 ALSTOM Midos 系列 MMLG01 标准测试块的一个具体物料版本，属于被动式机电隔离附件。
产品特点（5条）
B1AA0001C 为物料变体编码，代表特定硬件修订状态与生产批次。
用于常规线路与变压器保护柜，母线保护需选用 MMLG02 专用版本。
CT 回路无自动短接，需操作人员事先手动安装短接链接。
端子 13/14 专用于跳闸或辅助电源回路隔离，严禁接入 CT 回路。
依靠内部机械触点实现回路隔离与接入，无需辅助电源。
产品应用领域（10条）
常规线路保护柜二次注入测试
变压器保护屏定期校验
发电厂发电机保护回路隔离
配电变电站馈线保护测试
工业用户变电站继保维护
老旧 Midos 保护屏备件替换
保护继电器改造过渡接口
需要手动短接 CT 的测试场景
跳闸回路安全隔离
继电保护屏柜的测试接口扩展
结尾
综上，MMLG01B1AA0001C 是 MMLG01 标准款的一个具体物料版本，需手动短接 CT、13/14 端子不可接 CT、且不适用于母线保护场景。
MMLG01B1AA0001C is a specific material version of the ALSTOM Midos series MMLG01 standard test block, which belongs to passive electromechanical isolation accessories.
Product features (5 items)
B1AA0001C is a material variant code representing a specific hardware revision status and production batch.
For conventional lines and transformer protection cabinets, MMLG02 dedicated version is required for busbar protection.
The CT circuit does not have automatic short circuiting, and the operator needs to manually install the short circuiting link in advance.
Terminals 13/14 are dedicated for tripping or isolating auxiliary power circuits, and are strictly prohibited from being connected to CT circuits.
Relying on internal mechanical contacts to achieve circuit isolation and connection, without the need for auxiliary power supply.
Product application areas (10 items)
Secondary injection test of conventional line protection cabinet
Regular calibration of transformer protection screen
Isolation of generator protection circuit in power plant
Distribution substation feeder protection test
Maintenance and upkeep of industrial user substations
Replacement of old Midos protective screen spare parts
Protection relay transformation transition interface
Test scenarios that require manual short circuiting of CT
Trip circuit safety isolation
Expansion of testing interface for relay protection panel cabinet
ending
In summary, MMLG01B1AA0001C is a specific material version of the MMLG01 standard model, which requires manual short circuiting of CT, 13/14 terminals cannot be connected to CT, and is not suitable for busbar protection scenarios.
